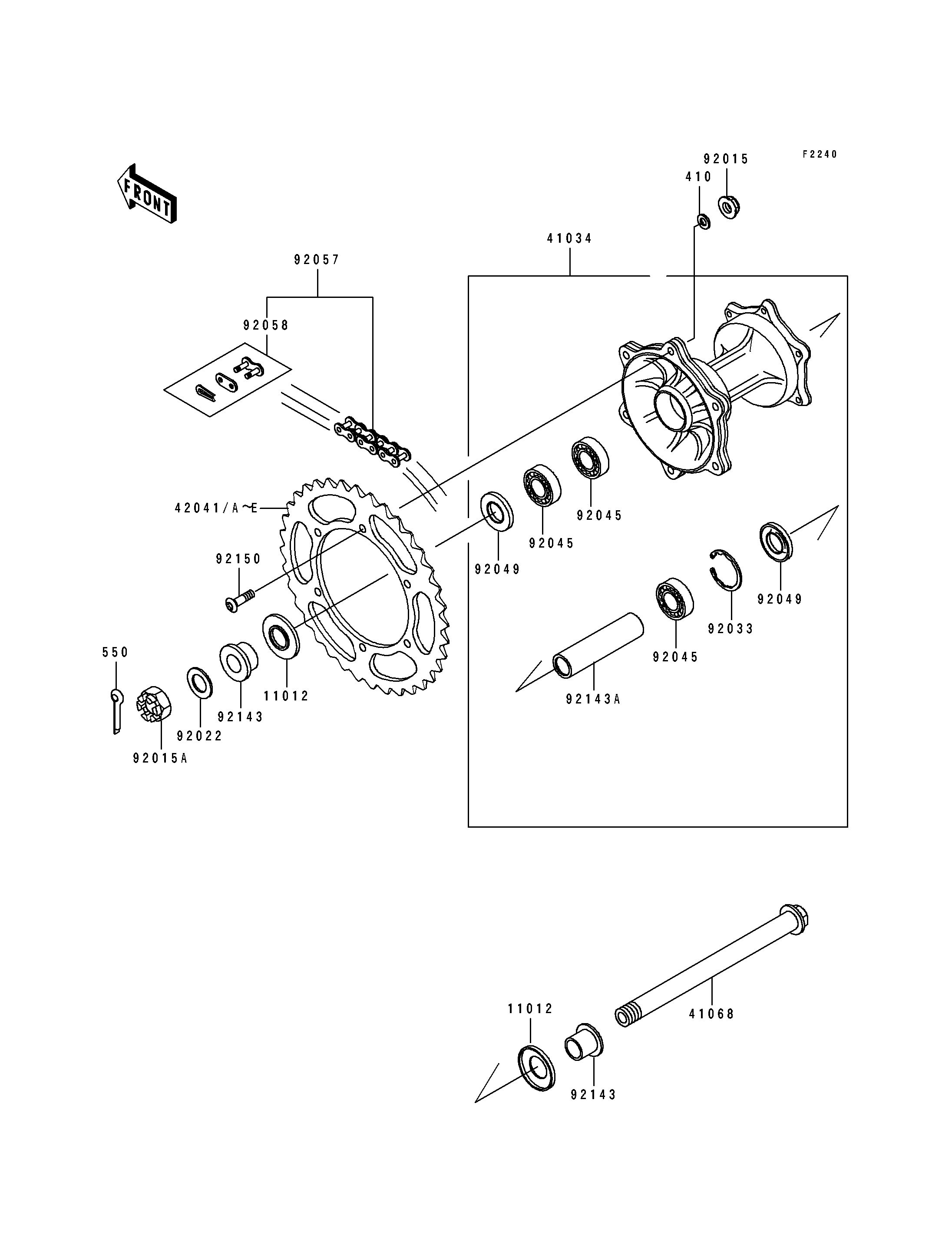

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,AXLE | 11012 | 11012-1581 | 2 | ||
DRUM-ASSY,REAR BRAKE | 41034 | 41034-1270 | 1 | ||
AXLE,RR | 41068 | 41068-1299 | 1 | ||
SPROCKET-HUB,45T,AL | 42041 | 42041-1154 | 1 | (OPTION) | |
SPROCKET-HUB,49T,AL | 42041A | 42041-1256 | 1 | (OPTION) | |
SPROCKET-HUB,48T,AL | 42041B | 42041-1257 | 1 | (OPTION) | |
SPROCKET-HUB,47T,AL | 42041C | 42041-1258 | 1 | ||
SPROCKET-HUB,46T,AL | 42041D | 42041-1259 | 1 | (OPTION) | |
SPROCKET-HUB,47T | 42041E | 42041-1382 | 1 | (OPTION) | |
NUT,8MM | 92015 | 92015-1432 | 6 | ||
NUT,CASTLE,20MM | 92015A | 92015-1804 | 1 | ||
WASHER,20.1X34X2.0 | 92022 | 92022-1994 | 1 | ||
RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
BEARING-BALL,6004X8JRLLX2/3A | 92045 | 92045-1239 | 3 | ||
SEAL-OIL,MHSA25 42 6 | 92049 | 92049-1314 | 2 | ||
CHAIN,DRIVE,DID520DMX114L | 92057 | 92057-1438 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1074 | 1 | ||
COLLAR,RR AXLE,L=20 | 92143 | 92143-1905 | 2 | ||
COLLAR,RR BRAKE DRUM,L=93 | 92143A | 92143-1906 | 1 | ||
BOLT,SOCKET,8X28 | 92150 | 92150-1978 | 6 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 6 | ||
PIN-COTTER,3.0X25 | 550 | 550D3025 | 1 |
