Parts Diagrams |

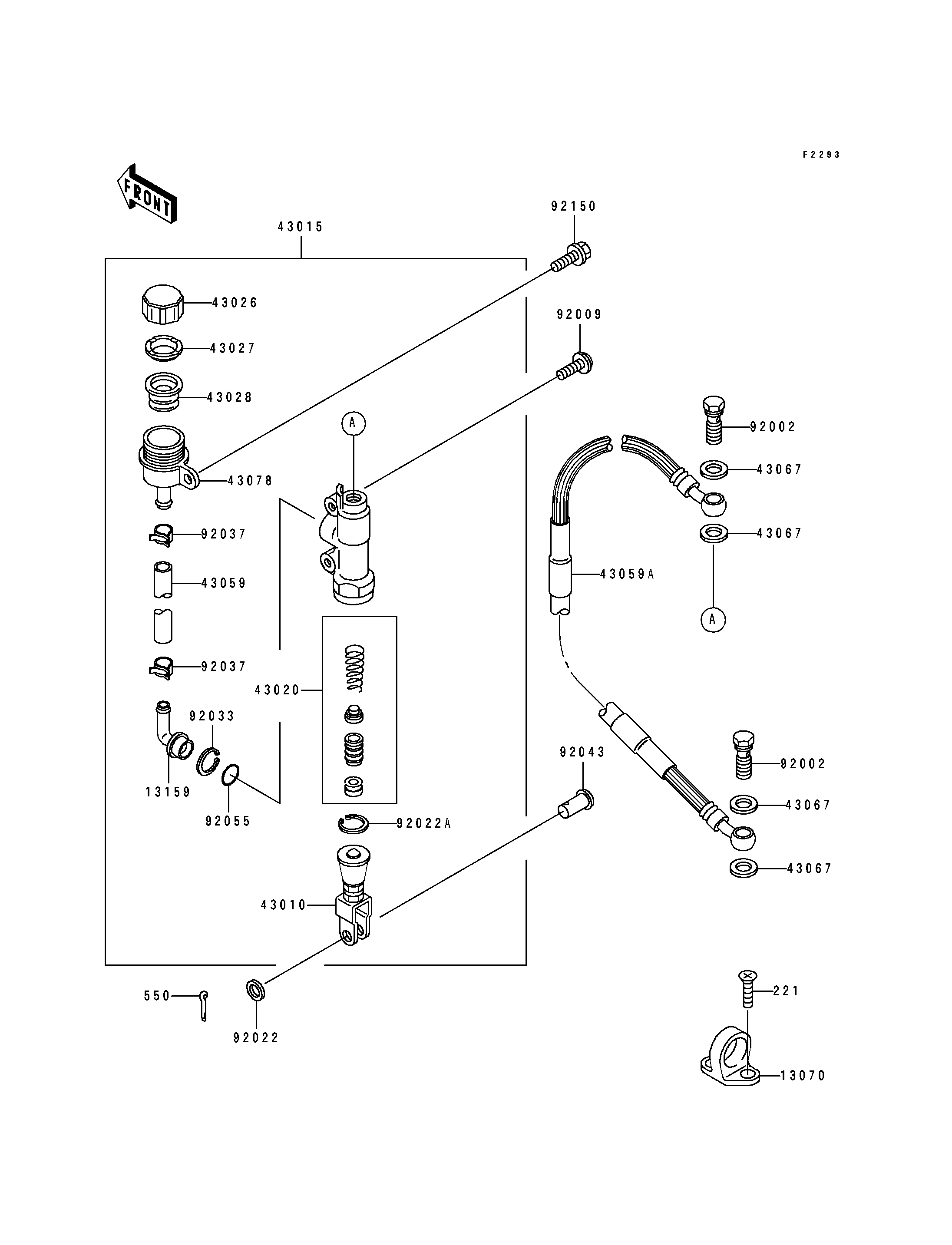

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,HOSE | 13070 | 13070-1144 | 2 | ||
CONNECTOR | 13159 | 13159-1056 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1068 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1368 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-1058 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1052 | 1 | ||
DIAPHRAGM | 43028 | 43028-1060 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1380 | 1 | ||
HOSE-BRAKE,RR | 43059A | 43059-1924 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR | 43078 | 43078-1068 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
SCREW,6X14,WHITE | 92009 | 92009-1287 | 2 | ||
WASHER,8.5X13X1 | 92022 | 92022-1028 | 1 | ||
WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP | 92037 | 92037-1710 | 2 | ||
PIN | 92043 | 92043-1039 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BOLT,6X14 | 92150 | 92150-1340 | 1 | ||
SCREW-CSK-CROS,6X10 | 221 | 221B0610 | 4 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 |
GUIDE,HOSE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CONNECTOR | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER,RR | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR MASTER CYLINDER | |
REF # | 43059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR | |
REF # | 43059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X15X1.5 | |
REF # | 43067 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X14,WHITE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,8.5X13X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,CIRCRIP | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20.5MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,MASTER CYLINDER | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X10 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
