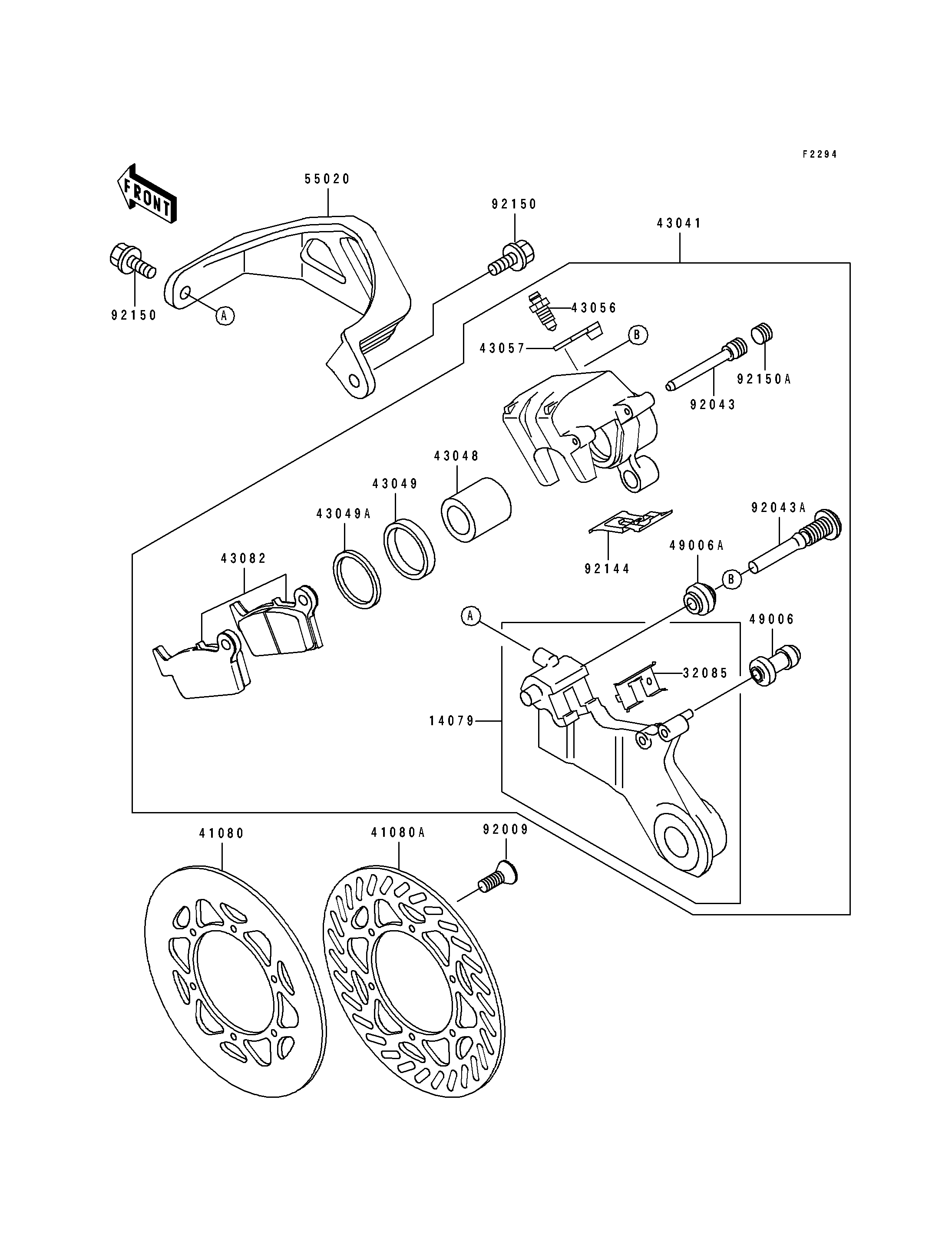

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER-ASSY,REAR CALIPER | 14079 | 14079-1105 | 1 | ||
STOPPER,PAD | 32085 | 32085-1386 | 1 | ||
DISC,RR | 41080 | 41080-1245 | 1 | (OPTION) | |
DISC,RR | 41080A | 41080-1388 | 1 | ||
CALIPER-ASSY,RR | 43041 | 43041-1577 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1068 | 1 | ||
PACKING,PISTON SEAL | 43049 | 43049-1060 | 1 | ||
PACKING,PISTON SEAL | 43049A | 43049-1061 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1055 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1173 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
GUARD,RR CALIPER,P.WHITE | 55020 | 55020-1488-6F | 1 | ||
SCREW,6X14 | 92009 | 92009-1546 | 6 | ||
PIN,HANGER | 92043 | 92043-1507 | 1 | ||
PIN | 92043A | 92043-1508 | 1 | ||
SPRING,PAD | 92144 | 92144-1819 | 1 | ||
BOLT,6X14 | 92150 | 92150-1340 | 2 | ||
BOLT,PLUG | 92150A | 92150-1692 | 1 |
