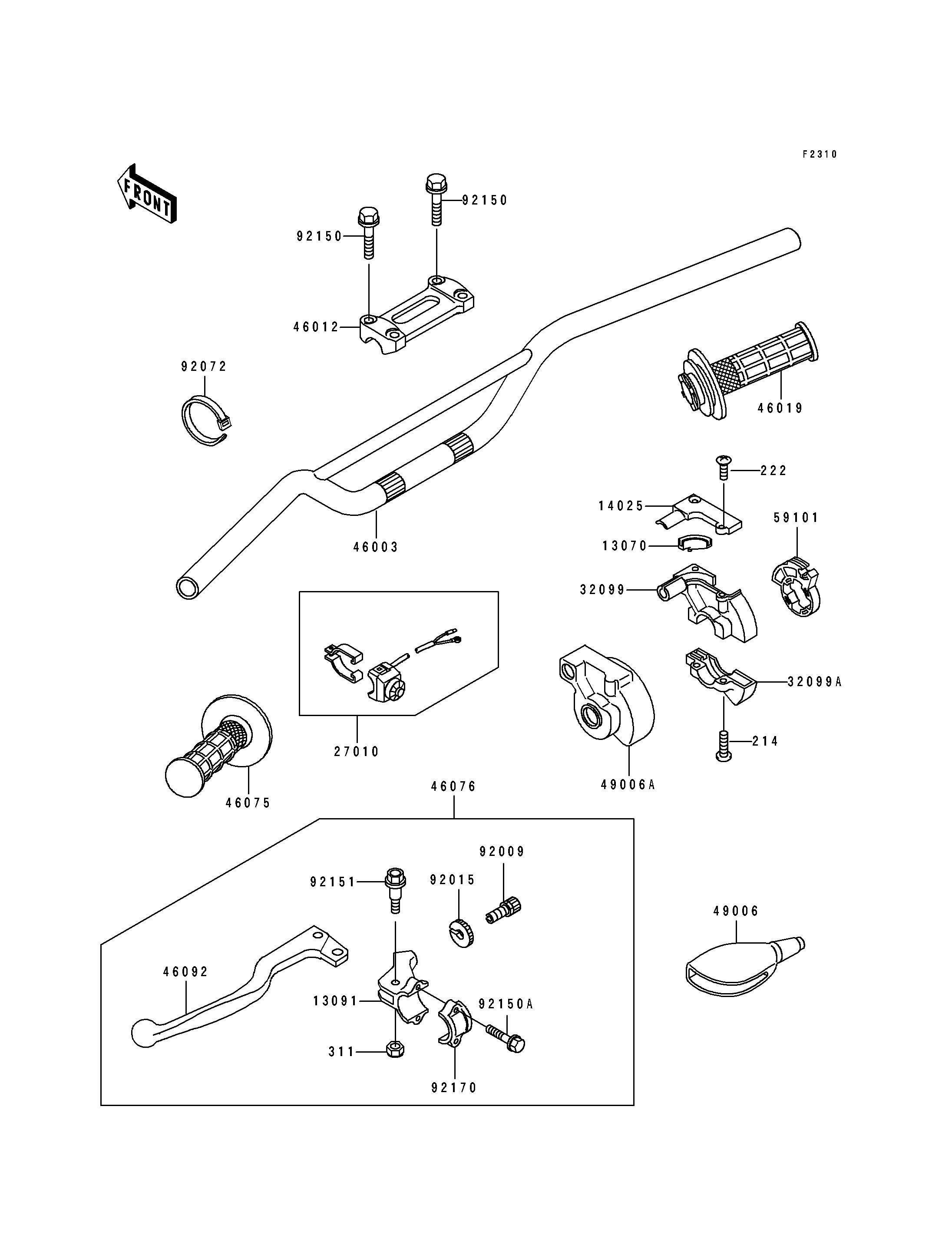

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,THROTTLE | 13070 | 13070-1074 | 1 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1728 | 1 | ||
COVER,THROTTLE CASE UPP | 14025 | 14025-1646 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-1350 | 1 | ||
CASE,THROTTLE UPP | 32099 | 32099-1036 | 1 | ||
CASE,THROTTLE LWR | 32099A | 32099-1044 | 1 | ||
HANDLE,L.GREEN | 46003 | 46003-1422-CC | 1 | ||
HOLDER-HANDLE,UPP | 46012 | 46012-1190 | 1 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
GRIP,LH | 46075 | 46075-1024 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1202 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1165 | 1 | ||
BOOT,LEVER HOLDER | 49006 | 49006-1017 | 1 | ||
BOOT,THROTTLE CASE | 49006A | 49006-1097 | 1 | ||
REEL,THROTTLE | 59101 | 59101-1107 | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009 | 92009-1435 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015 | 92015-1596 | 1 | ||
BAND,L=123 | 92072 | 92072-030 | 1 | ||
BOLT,FLANGED,8X30 | 92150 | 92150-1455 | 4 | ||
BOLT | 92150A | 92150-1474 | 2 | ||
BOLT,LEVER SET,5MM | 92151 | 92151-1103 | 1 | ||
CLAMP,LEVER HOLDER | 92170 | 92170-1226 | 1 | ||
SCREW-PAN+- | 214 | 214C0518 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222E0412 | 2 | ||
NUT-HEX | 311 | 311C0500 | 1 |
GUIDE,THROTTLE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,THROTTLE CASE UPP | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,ENGINE STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE UPP | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE LWR | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE,L.GREEN | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,UPP | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-ASSY,THROTTLE | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,CLUTCH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,LEVER HOLDER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,THROTTLE CASE | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REEL,THROTTLE | |
REF # | 59101 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST,8MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOCK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=123 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X30 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,LEVER SET,5MM | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,LEVER HOLDER | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN+- | |
REF # | 214 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-RD-CROS | |
REF # | 222 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
