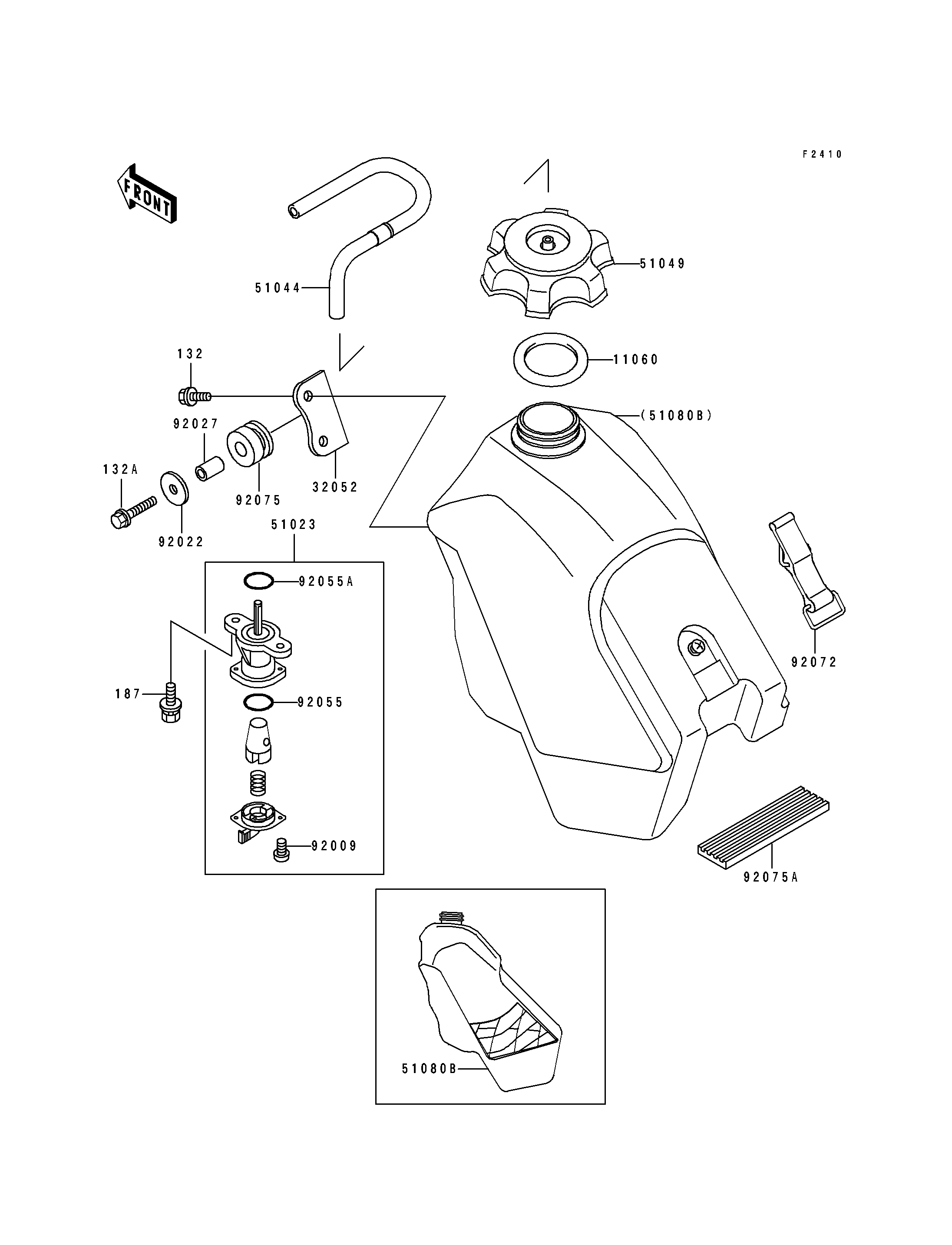

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11060 11060-1340 1
BRACKET-TANK 32052 32052-1169 2
TAP-ASSY,FUEL 51023 51023-1115 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1108 1
TANK-COMP-FUEL,L.GREEN 51080B 51080-5349-6W 1
SCREW,3X8 92009 92009-1386 2
WASHER,6.5X24X2 92022 92022-1690 2
COLLAR,6.8X10X17 92027 92027-1833 2
RING-O,FUEL TAP LEVER 92055 92055-1299 1
RING-O,FUEL TAP PACKING 92055A 92055-1300 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1660 2
DAMPER,FUEL TANK 92075A 92075-1987 1
BOLT-FLANGED-SMALL 132 132G0612 4
BOLT-FLANGED-SMALL 132A 132G0630 2
BOLT-UPSET-WSP 187 187B0616 2
