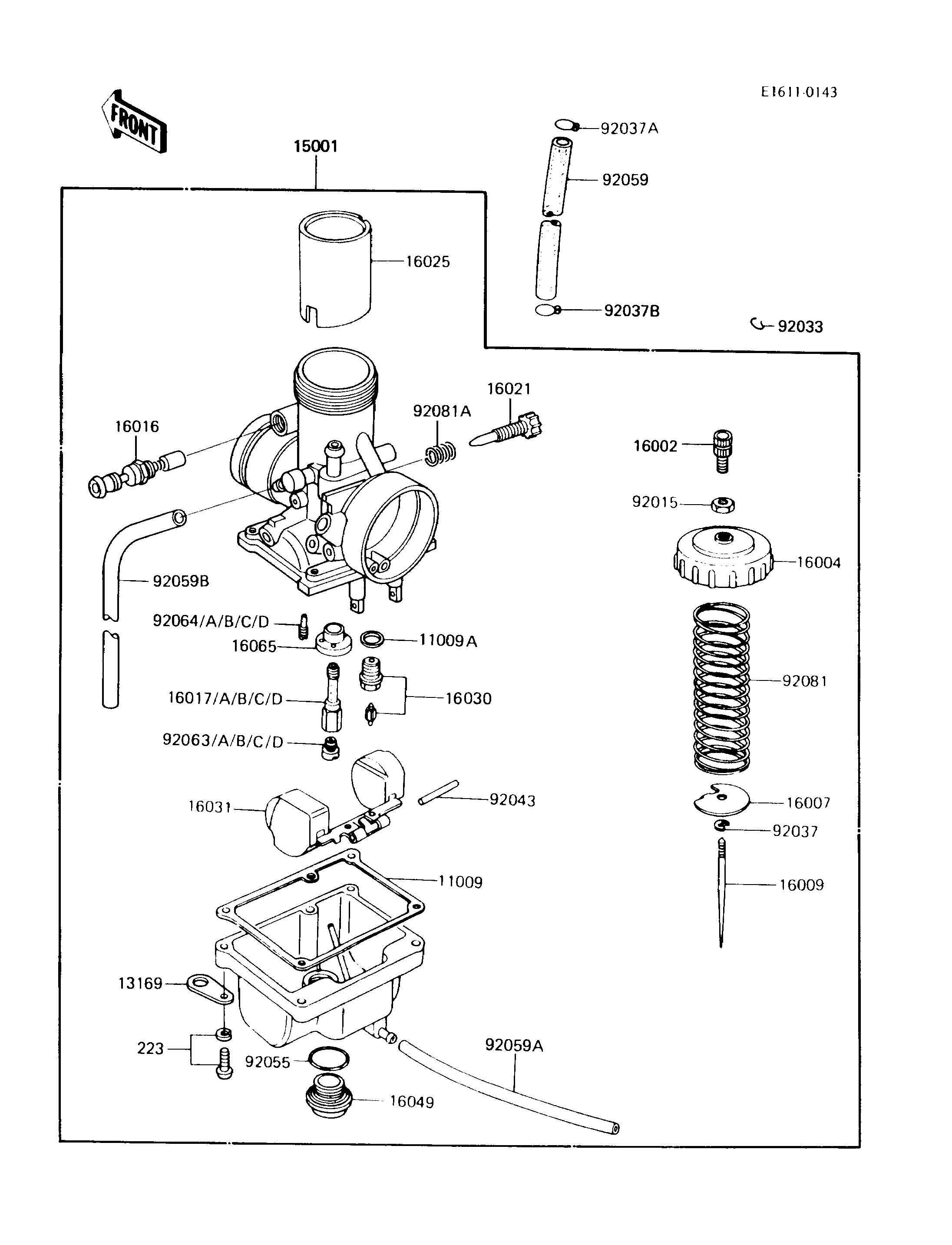

1988 KX60 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1147 1
GASKET,FLOAT VALVE SEAT 11009A 16029-004 1
PLATE,TUBE CLAMP 13169 13169-1226 1
CARBURETOR-ASSY 15001 15001-1384 1
ADJUSTER-CABLE 16002 16002-011 1
CAP-CHAMBER 16004 16004-025 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-023 1
NEEDLE-JET,5I14 16009 16009-1220 1
PLUNGER,STARTER 16016 16016-1052 1
JET-NEEDLE,N-8 16017 16017-1215 1
JET-NEEDLE,O-0 16017A 16017-1216 1 (OPTION)
JET-NEEDLE,O-2 16017B 16017-1217 1 (OPTION)
JET-NEEDLE,N-6 16017C 16017-1259 1 (OPTION)
JET-NEEDLE,N-4 16017D 16017-1268 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1104 1
VALVE-THROTTLE,CA2.0 16025 16025-1107 1
VALVE-FLOAT,2.5 16030 16030-005 1
FLOAT 16031 16031-1005 1
COVER-MAIN JET 16049 16049-1001 1
HOLDER,JET NEEDLE 16065 16065-1020 1
NUT,ADJUST LOCK 92015 16003-006 1
RING-SNAP 92033 92036-018 1
CLAMP,E-TYPE 92037 16008-010 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP 92037B 92037-1712 1
PIN,FLOAT 92043 16032-003 1
RING-O,MAIN JET COVER 92055 92055-1061 1
TUBE,5.3X10.5X130 92059 92059-1393 1
TUBE,3X5X160 92059A 92059-1395 1
TUBE,3X5X270 92059B 92059-1396 1
JET-MAIN,#180 92063 92063-020 1 (OPTION)
JET-MAIN,#190 92063A 92063-021 1 (OPTION)
JET-MAIN,#200 92063B 92063-022 1
JET-MAIN,#210 92063C 92063-023 1 (OPTION)
JET-MAIN,#220 92063D 92063-024 1 (OPTION)
JET-PILOT,#35 92064 92064-1023 1 (OPTION)
JET-PILOT,#30 92064A 92064-1030 1
JET-PILOT,#25 92064B 92064-1038 1 (OPTION)
JET-PILOT,#40 92064C 92064-1104 1 (OPTION)
JET-PILOT,#20 92064D 92064-1110 1 (OPTION)
SPRING,THROTTLE VALVE 92081 16006-023 1
SPRING,THROTTLE STOP SCREW 92081A 16022-005 1
SCREW-PAN-WS-CROS 223 223B0416 4
