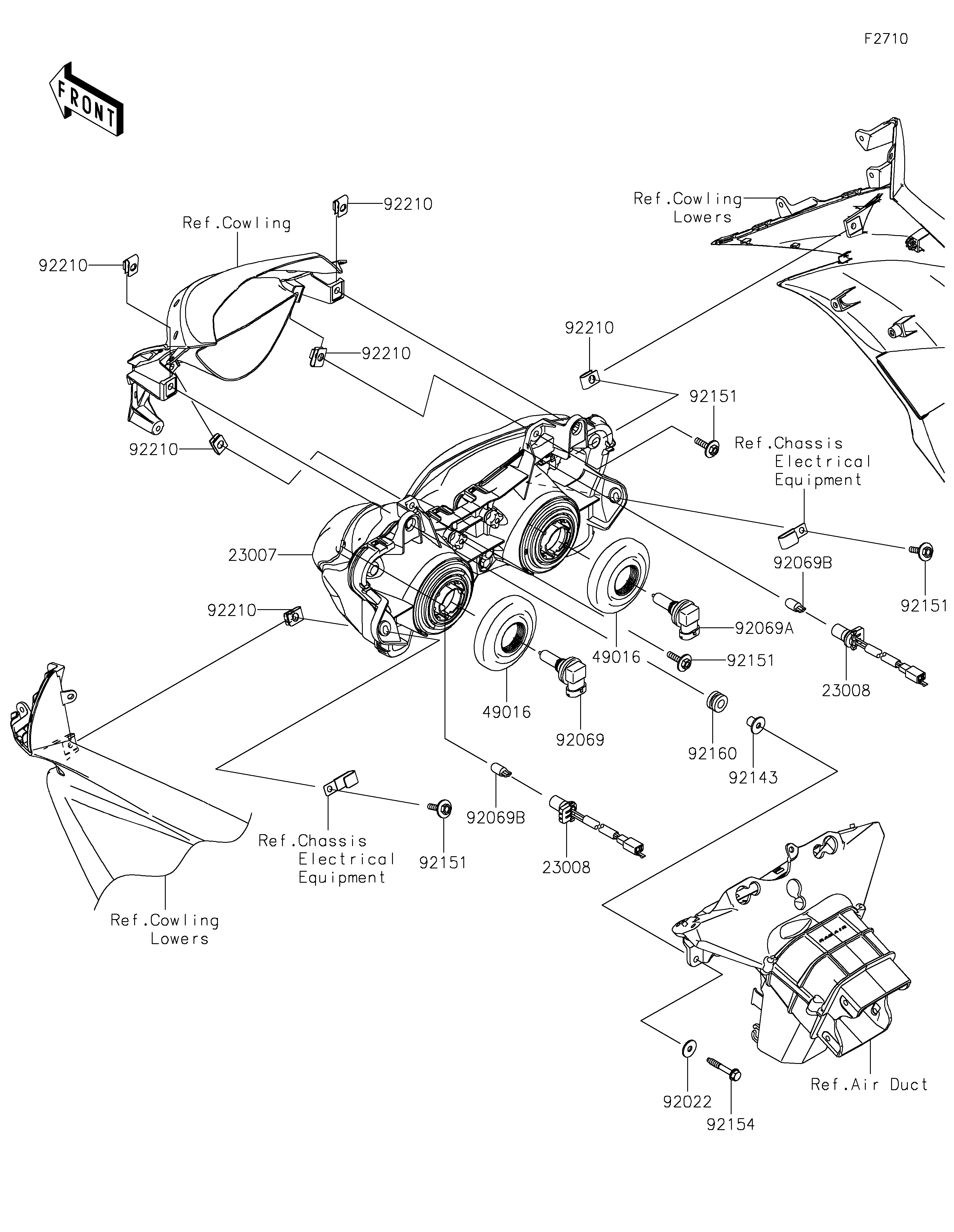

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
23007
23008
23008
49016
49016
92022
92069
92069A
92069B
92069B
92143
92151
92151
92151
92151
92154
92160
92210
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LENS-COMP,HEAD LAMP | 23007 | 23007-0226 | 1 | ||
| SOCKET-ASSY,HEAD LAMP | 23008 | 23008-0090 | 2 | ||
| COVER-SEAL,HEAD LAMP | 49016 | 49016-0023 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 2 | ||
| BULB,12V 65W,H9 | 92069 | 92069-0055 | 1 | ||
| BULB,12V 55W,H11 | 92069A | 92069-0056 | 1 | ||
| BULB,12V 5W | 92069B | 92069-1016 | 2 | ||
| COLLAR | 92143 | 92143-1353 | 2 | ||
| BOLT,6X25 | 92151 | 92151-1241 | 4 | ||
| BOLT,6X40 | 92154 | 92154-0251 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 2 | ||
| NUT | 92210 | 92210-0130 | 6 |
| LENS-COMP,HEAD LAMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,HEAD LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HEAD LAMP | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 65W,H9 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 55W,H11 | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X40 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X12 | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
