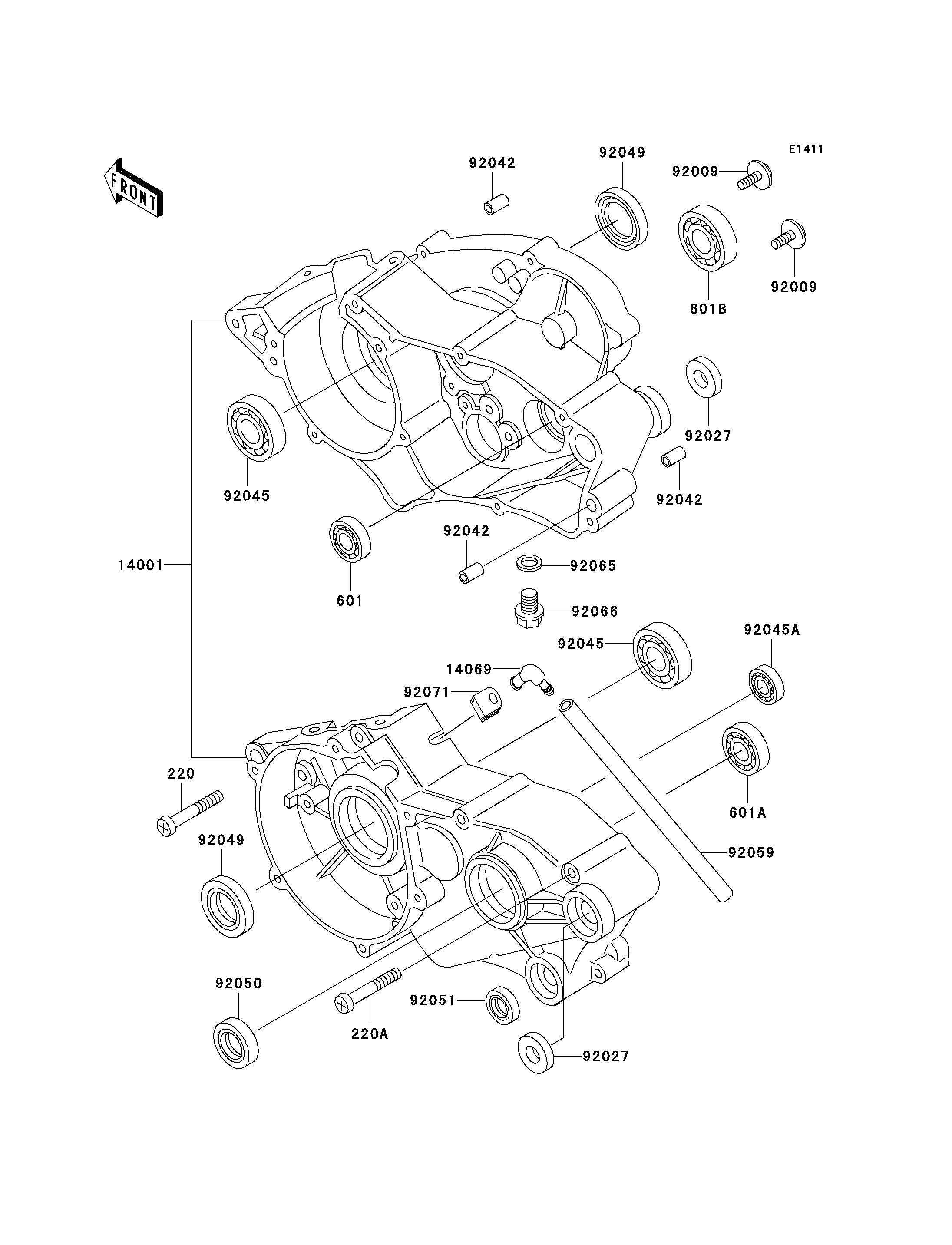

Parts Diagrams |
220
220A
601
601A
601B
14001
14069
92009
92009
92027
92027
92042
92042
92042
92045
92045
92045A
92049
92049
92050
92051
92059
92065
92066
92071
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,6X35 | 220 | 220B0635 | 8 | ||
SCREW-PAN-CROS,6X60 | 220A | 220B0660 | 1 | ||
BEARING-BALL,#6002 | 601 | 601A6002 | 1 | ||
BEARING-BALL,#6004 | 601A | 601A6004 | 1 | ||
BEARING-BALL,#6203 | 601B | 601A6203 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5151 | 1 | ||
BREATHER,CRANKCASE | 14069 | 14069-002 | 1 | ||
SCREW,6X15 | 92009 | 92009-1103 | 2 | ||
COLLAR,12.1X26X6 | 92027 | 92027-1744 | 2 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 4 | ||
BEARING-BALL,R-6304C3 | 92045 | 92045-1059 | 2 | ||
BEARING-BALL,6001C3ML01 | 92045A | 92045-1235 | 1 | ||
SEAL-OIL,SD20407GS | 92049 | 92049-1188 | 2 | ||
SEAL-OIL,SC25376 | 92050 | 92050-013 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
TUBE,6X9X280 | 92059 | 92059-1074 | 1 | ||
GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1241 | 1 | ||
GROMMET,BREATHER | 92071 | 92071-042 | 1 |
SCREW-PAN-CROS,6X35 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X60 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6002 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004 | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6203 | |
REF # | 601B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER,CRANKCASE | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X15 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,12.1X26X6 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,DOWEL,6.3X8X14 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,R-6304C3 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,6001C3ML01 | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SD20407GS | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC25376 | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,6X9X280 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10.5X16X1 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,BREATHER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
