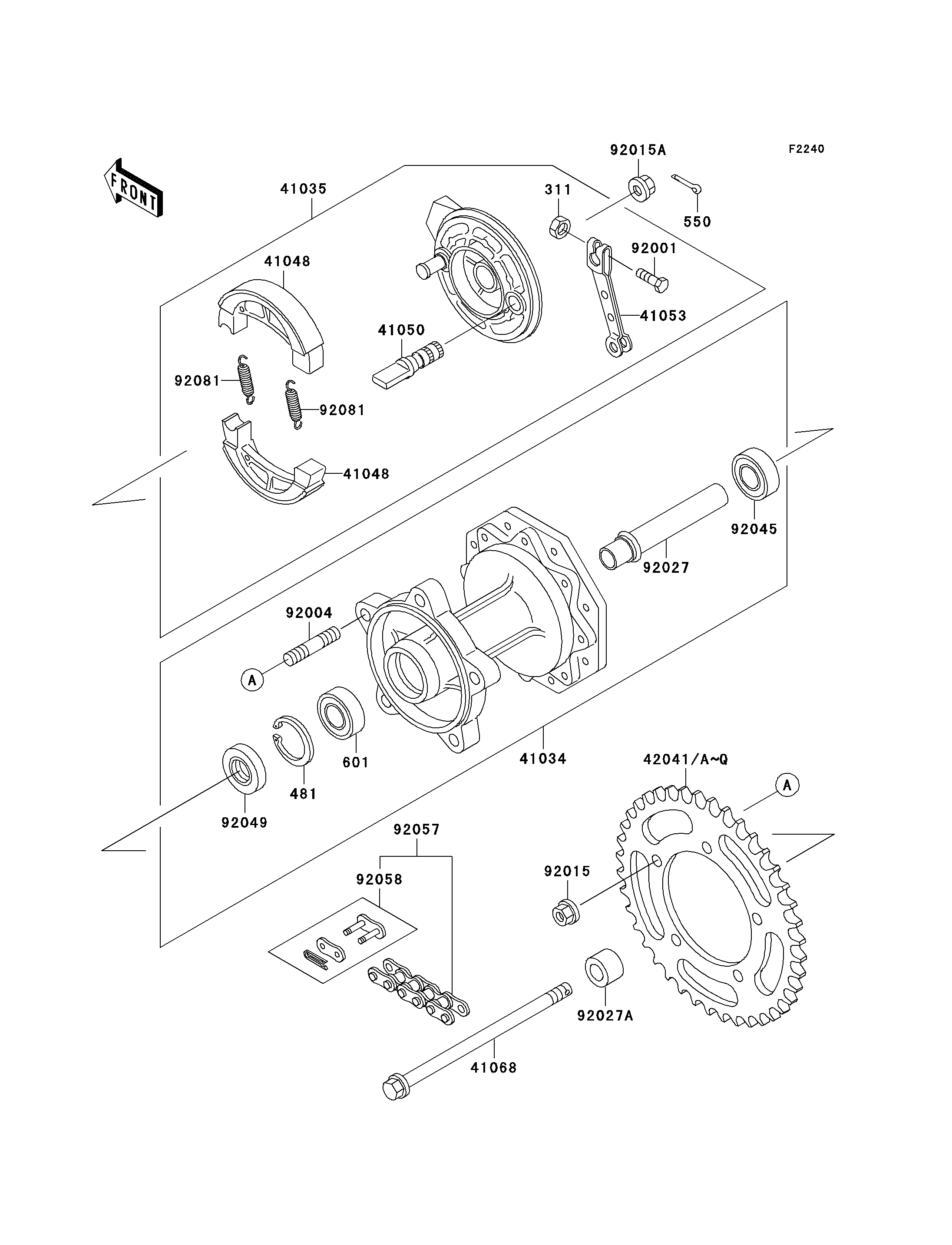

1999 KX60 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
41034
41034
41035
41035
41048
41048
41048
41048
41050
41050
41053
41053
41068
41068
42041
42041
42041A
42041A
42041B
42041B
42041C
42041C
42041D
42041D
42041E
42041E
42041F
42041F
42041G
42041G
42041H
42041H
42041I
42041I
42041J
42041J
42041K
42041K
42041L
42041L
42041M
42041M
42041N
42041N
42041O
42041O
42041P
42041P
42041Q
42041Q
92001
92001
311
311
481
481
550
550
601
601
92004
92004
92015
92015
92015A
92015A
92027
92027
92027A
92027A
92045
92045
92049
92049
92057
92057
92058
92058
92081
92081
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1169 1
PANEL-ASSY-BRAKE,RR 41035 41035-1286 1
SHOE-BRAKE 41048 41048-1083 2
CAM-BRAKE 41050 41050-1031 1
LEVER-BRAKE CAM,RR 41053 41053-1058 1
AXLE,RR 41068 41068-1306 1
SPROCKET-HUB,44T 42041 42041-1114 1
SPROCKET-HUB,43T 42041A 42041-1116 1 (OPTION)
SPROCKET-HUB,45T 42041B 42041-1117 1 (OPTION)
SPROCKET-HUB,49T 42041C 42041-1121 1 (OPTION)
SPROCKET-HUB,48T 42041D 42041-1122 1 (OPTION)
SPROCKET-HUB,50T 42041E 42041-1123 1 (OPTION)
SPROCKET-HUB,47T 42041F 42041-1129 1 (OPTION)
SPROCKET-HUB,43T,AL 42041G 42041-1167 1 (OPTION)
SPROCKET-HUB,44T,AL 42041H 42041-1168 1 (OPTION)
SPROCKET-HUB,48T,AL 42041I 42041-1169 1 (OPTION)
SPROCKET-HUB,49T,AL 42041J 42041-1170 1 (OPTION)
SPROCKET-HUB,50T,AL 42041K 42041-1171 1 (OPTION)
SPROCKET-HUB,45T,AL 42041L 42041-1175 1 (OPTION)
SPROCKET-HUB,46T,AL 42041M 42041-1176 1 (OPTION)
SPROCKET-HUB,47T,AL 42041N 42041-1177 1 (OPTION)
SPROCKET-HUB,46T 42041O 42041-1178 1 (OPTION)
SPROCKET-HUB,51T 42041P 42041-1181 1 (OPTION)
SPROCKET-HUB,51T,AL 42041Q 42041-1182 1 (OPTION)
BOLT,5X25 92001 92001-1695 1
NUT-HEX 311 311G0500 1
CIRCLIP-TYPE-C,37MM 481 481J3700 1
PIN-COTTER,2.5X20 550 550D2520 1
BEARING-BALL,#6201UUC3 601 601B6301UU 1
STUD,8X16 92004 92004-1182 5
NUT,8MM 92015 92015-1143 5
NUT,FLANGED,12MM 92015A 92015-1433 1
COLLAR,REAR DRUM,L=115 92027 92027-1471 1
COLLAR,REAR AXLE,L=14.5 92027A 92027-1473 1
BEARING-BALL,TMB201LLUC3/2A 92045 92045-1062 1
SEAL-OIL,DD20377 92049 92049-1096 1
CHAIN,DRIVE,DID420MBK1X104L 92057 92057-1436 1
JOINT-CHAIN,DRIVE 92058 92058-1073 1
SPRING,BRAKE SHOE 92081 92081-1766 2
