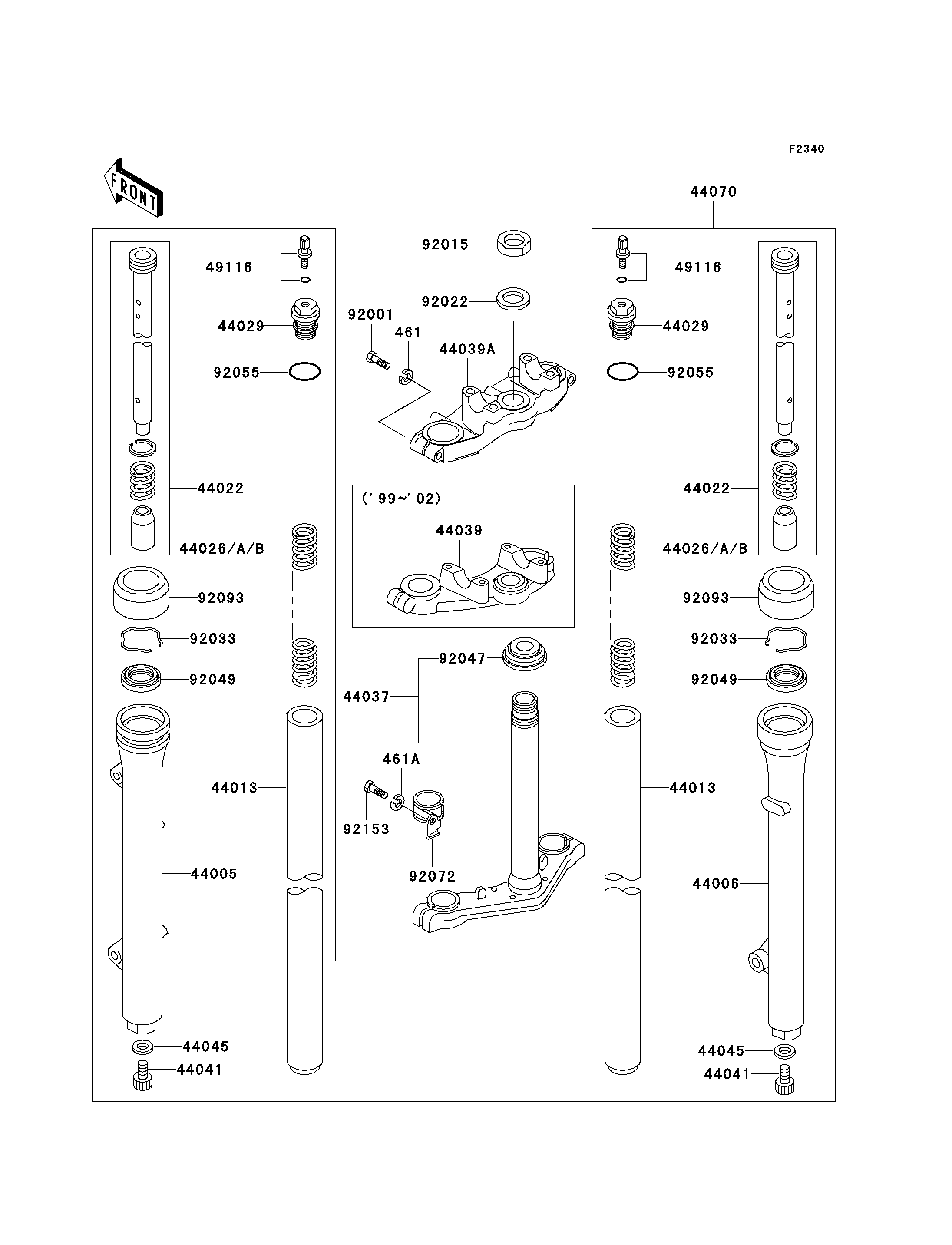

Parts Diagrams |
461
461A
44005
44006
44013
44013
44022
44022
44026
44026
44026A
44026A
44026B
44026B
44029
44029
44037
44039
44041
44041
44045
44045
44070
49116
49116
92001
92015
92022
92033
92033
92047
92049
92049
92055
92055
92072
92093
92093
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-SPRING,8MM | 461 | 461F0800 | 2 | ||
WASHER-SPRING,10MM | 461A | 461F1000 | 2 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1101 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1101 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1098 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1085 | 2 | ||
SPRING-FRONT FORK,K=0.25 | 44026 | 44026-1156 | 2 | ||
SPRING-FRONT FORK,K=0.23 | 44026A | 44026-1174 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=0.27 | 44026B | 44026-1175 | 2 | (OPTION) | |
SEAT-FORK SPRING | 44029 | 44029-1101 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1227 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1167 | 1 | ||
BOLT,FORK CYLINDER | 44041 | 44041-078 | 2 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
DAMPER-ASSY,FORK | 44070 | 44070-5007 | 1 | ||
VALVE-ASSY,AIR | 49116 | 49116-1054 | 2 | ||
BOLT,8X35 | 92001 | 92001-1643 | 2 | ||
NUT,STEERING STEM,22MM | 92015 | 92015-1653 | 1 | ||
WASHER,STEERING STEM | 92022 | 92022-1873 | 1 | ||
RING-SNAP | 92033 | 92033-1062 | 2 | ||
RACE,STEERING STEM BEARING | 92047 | 92047-013 | 1 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1069 | 2 | ||
RING-O,FORK SPRING SEAT | 92055 | 92055-1142 | 2 | ||
BAND,CABLE | 92072 | 92072-1089 | 1 | ||
DUST SHIELD,FORK | 92093 | 92093-1054 | 2 | ||
BOLT,10X35 | 92153 | 92153-1199 | 2 |
WASHER-SPRING,8MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-SPRING,10MM | |
REF # | 461A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-FORK | |
REF # | 44022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK,K=0.25 | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK,K=0.23 | |
REF # | 44026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING-FRONT FORK,K=0.27 | |
REF # | 44026B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (OPTION) |
SEAT-FORK SPRING | |
REF # | 44029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FORK CYLINDER | |
REF # | 44041 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,FORK CYLINDER BOLT | |
REF # | 44045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER-ASSY,FORK | |
REF # | 44070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY,AIR | |
REF # | 49116 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X35 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,STEERING STEM,22MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,STEERING STEM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RACE,STEERING STEM BEARING | |
REF # | 92047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK OUTER TUBE | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,FORK SPRING SEAT | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,CABLE | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUST SHIELD,FORK | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X35 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
