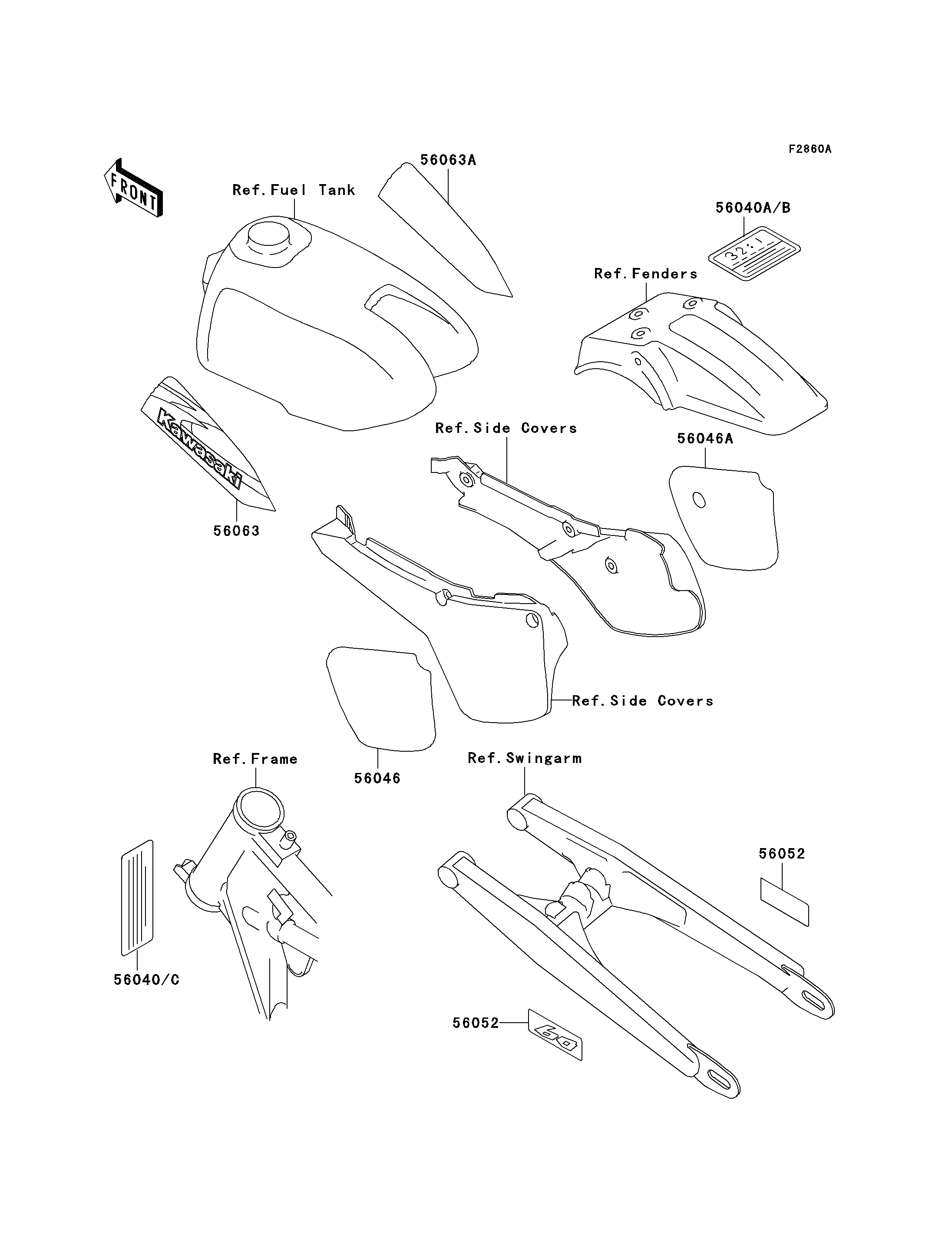

56046
56046A
56052
56052
56063
56063A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,SIDE COVER,LH 56046 56046-1705 1
PATTERN,SIDE COVER,RH 56046A 56046-1706 1
MARK,SWING ARM,60 56052 56052-1110 2
PATTERN,FUEL TANK,LH 56063 56063-1156 1
PATTERN,FUEL TANK,RH 56063A 56063-1157 1
LABEL-WARNING,NOISE 56040 56040-1101 1 US
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1 US
LABEL-WARNING,GASOLINE/OIL 56040B 56040-1306 1 CN
LABEL-WARNING,WARRANTY 56040C 56040-1335 1 CN
