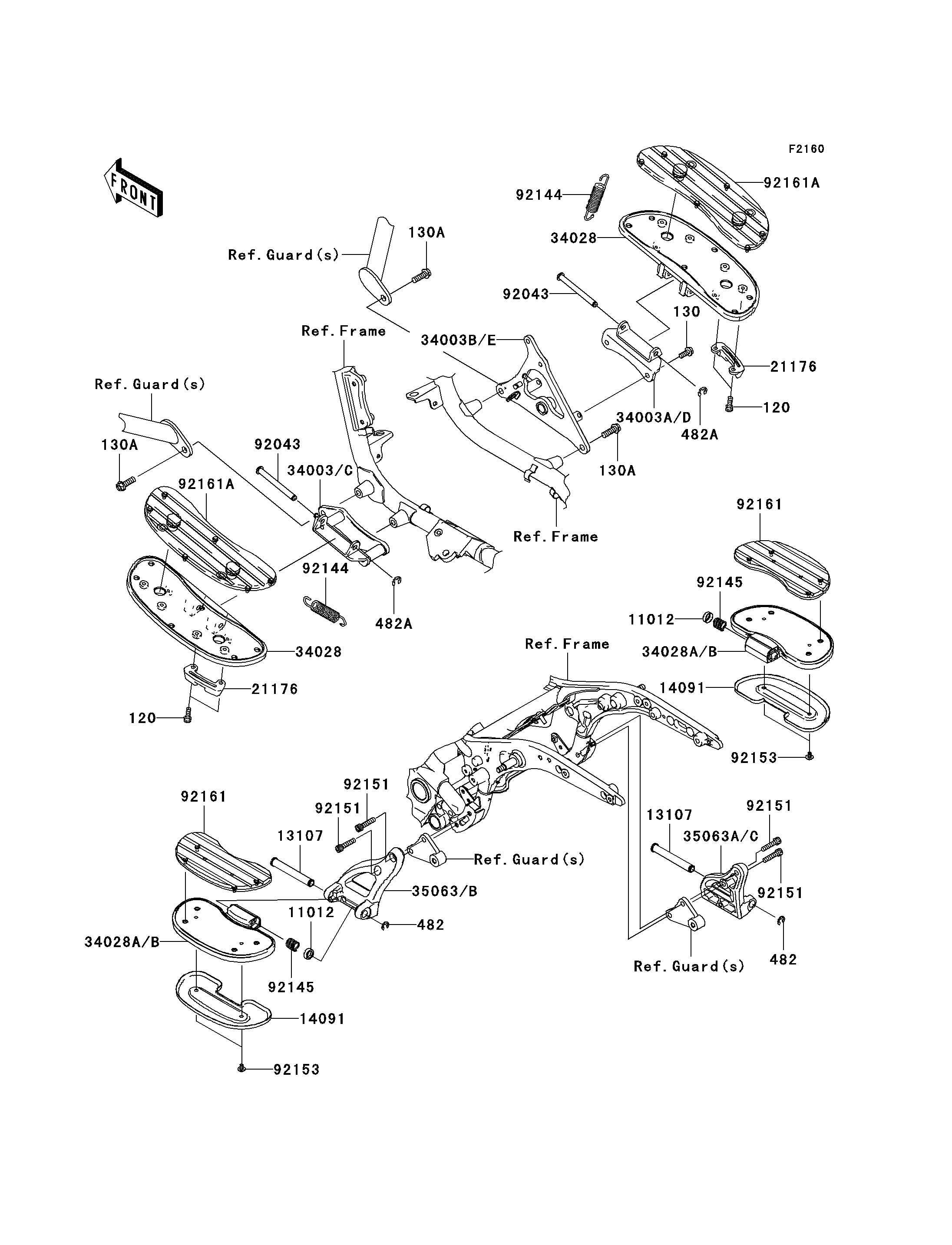

Parts Diagrams |
120
120
130
130A
130A
130A
482
482
482A
482A
11012
11012
13107
13107
14091
14091
21176
21176
34003C
34003D
34003E
34028
34028
34028B
34028B
35063B
35063C
92043
92043
92144
92144
92145
92145
92151
92151
92151
92151
92153
92153
92161
92161
92161A
92161A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X16 | 120 | 120S0616 | 4 | ||
BOLT-FLANGED,8X20 | 130 | 130J0820 | 2 | ||
BOLT-FLANGED,10X30 | 130A | 130J1030 | 4 | ||
CIRCLIP-TYPE-E | 482 | 482L0200 | 2 | ||
CIRCLIP-TYPE-E,8MM | 482A | 482L8000 | 2 | ||
CAP | 11012 | 11012-1498 | 2 | ||
SHAFT,REAR STEP | 13107 | 13107-0087 | 2 | ||
COVER,REAR STEP | 14091 | 14091-0229 | 2 | ||
SENSOR,BANK | 21176 | 21176-0021 | 2 | ||
HOLDER-STEP,FR,LH | 34003C | 34003-0061 | 1 | ||
HOLDER-STEP,FR,RH | 34003D | 34003-0062 | 1 | ||
HOLDER-STEP,FR,RH | 34003E | 34003-0063 | 1 | ||
STEP,FR | 34028 | 34028-0011 | 2 | ||
STEP,RR | 34028B | 34028-0053 | 2 | ||
STAY,REAR STEP,LH | 35063B | 35063-0473 | 1 | ||
STAY,REAR STEP,RH | 35063C | 35063-0474 | 1 | ||
PIN,10X98.5 | 92043 | 92043-1707 | 2 | ||
SPRING | 92144 | 92144-1266 | 2 | ||
SPRING,REAR STEP | 92145 | 92145-1130 | 2 | ||
BOLT,SOCKET,8X35 | 92151 | 92151-1535 | 4 | ||
BOLT,SOCKET,6X10 | 92153 | 92153-1096 | 4 | ||
DAMPER,REAR STEP | 92161 | 92161-0145 | 2 | ||
DAMPER,FRONT STEP | 92161A | 92161-1325 | 2 |
