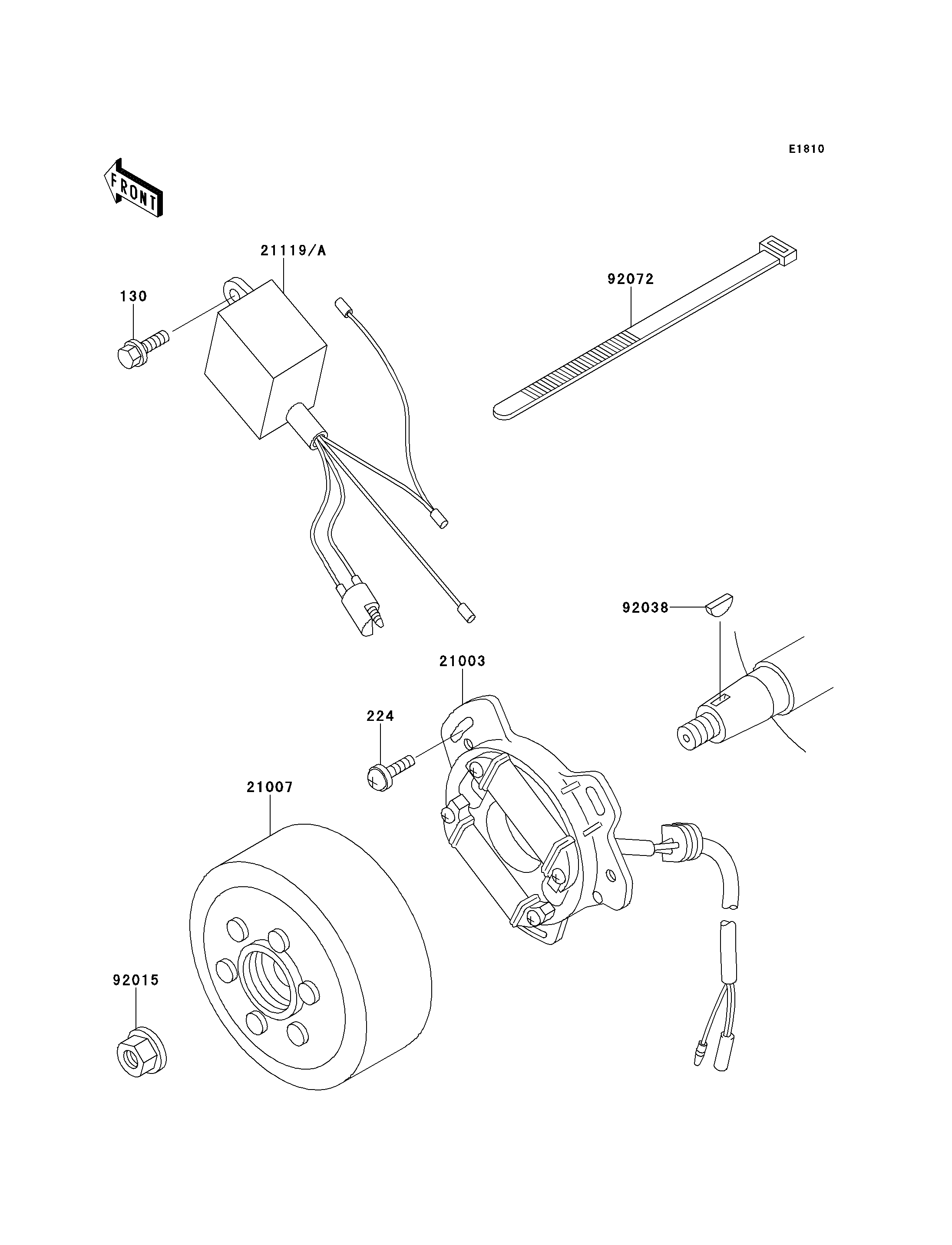

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130G0616 1
SCREW-PAN-WP-CROS 224 224B0514 3
STATOR 21003 21003-1240 1
ROTOR,MAGNETO 21007 21007-1237 1
IGNITER 21119A 21119-1312 1
NUT,FLANGED,10MM 92015 92015-077 1
KEY,WOODRUFF 92038 92038-001 1
BAND,L=186 92072 92072-056 1
