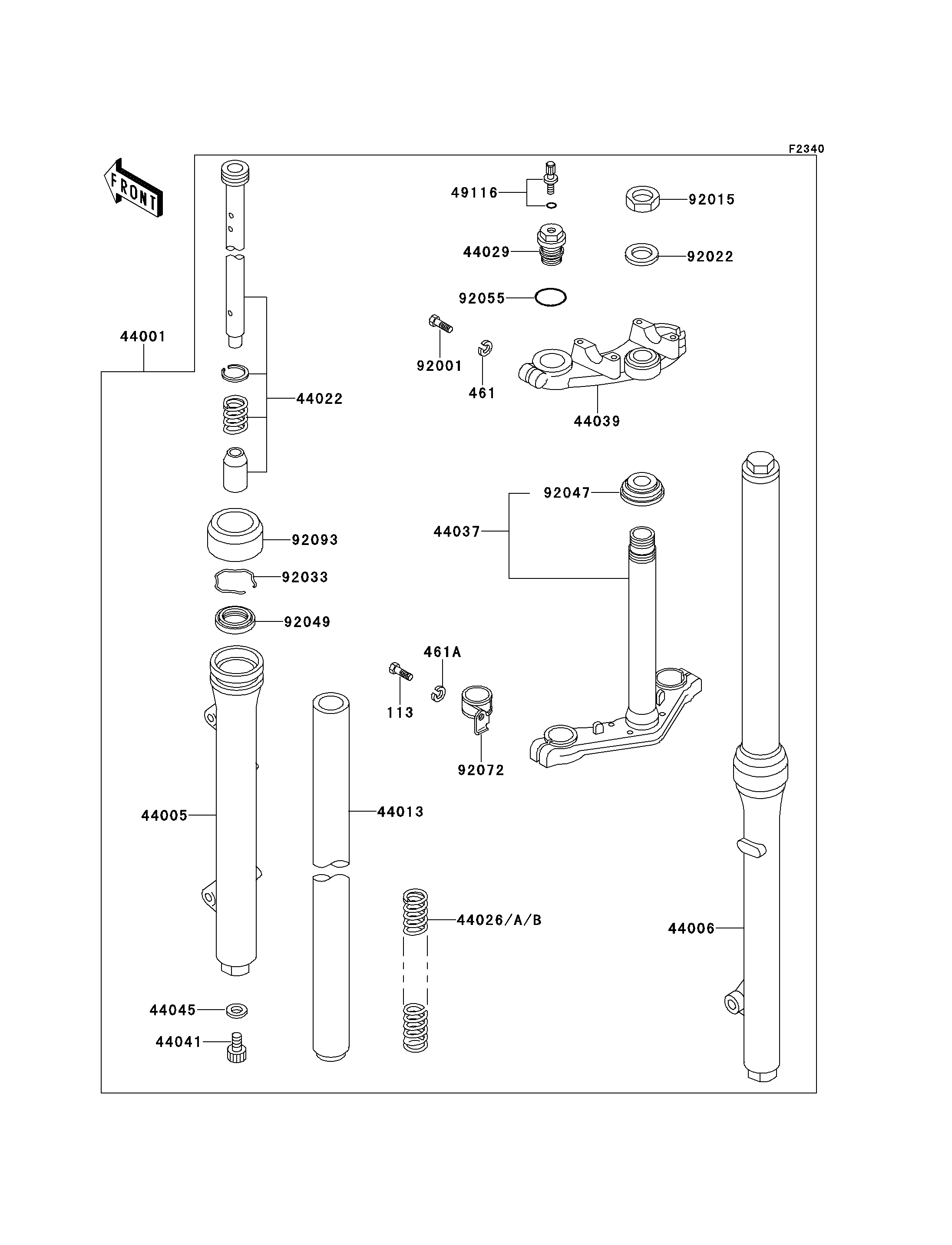

1992 KX60 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
113
461
461A
44001
44005
44006
44013
44022
44026
44026A
44026B
44029
44037
44039
44041
44045
49116
92001
92015
92022
92033
92047
92049
92055
92072
92093
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-FINE,10X35 113 113B1035 2
WASHER-SPRING,8MM 461 461F0800 2
WASHER-SPRING,10MM 461A 461F1000 2
FORK-FRONT 44001 44001-1677 1
PIPE-LEFT FORK OUTER 44005 44005-1101 1
PIPE-RIGHT FORK OUTER 44006 44006-1101 1
PIPE-FORK INNER 44013 44013-1098 2
CYLINDER-FORK 44022 44022-1085 2
SPRING-FRONT FORK,K=0.25 44026 44026-1156 2
SPRING-FRONT FORK,K=0.23 44026A 44026-1174 2 (OPTION)
SPRING-FRONT FORK,K=0.27 44026B 44026-1175 2 (OPTION)
SEAT-FORK SPRING 44029 44029-1101 2
HOLDER-FORK UNDER 44037 44037-1227 1
HOLDER-FORK UPPER 44039 44039-1167 1
BOLT,FORK CYLINDER 44041 44041-078 2
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
VALVE-ASSY,AIR 49116 49116-1054 2
BOLT,8X35 92001 92001-1643 2
NUT,FORK TOP 92015 92015-1224 1
WASHER,FORK TOP 92022 92022-1385 1
RING-SNAP 92033 92033-1062 2
RACE,STEERING STEM BEARING 92047 92047-013 1
SEAL-OIL,FORK OUTER TUBE 92049 92049-1069 2
RING-O,FORK SPRING SEAT 92055 92055-1142 2
BAND,CABLE 92072 92072-1089 1
DUST SHIELD,FORK 92093 92093-1054 2
