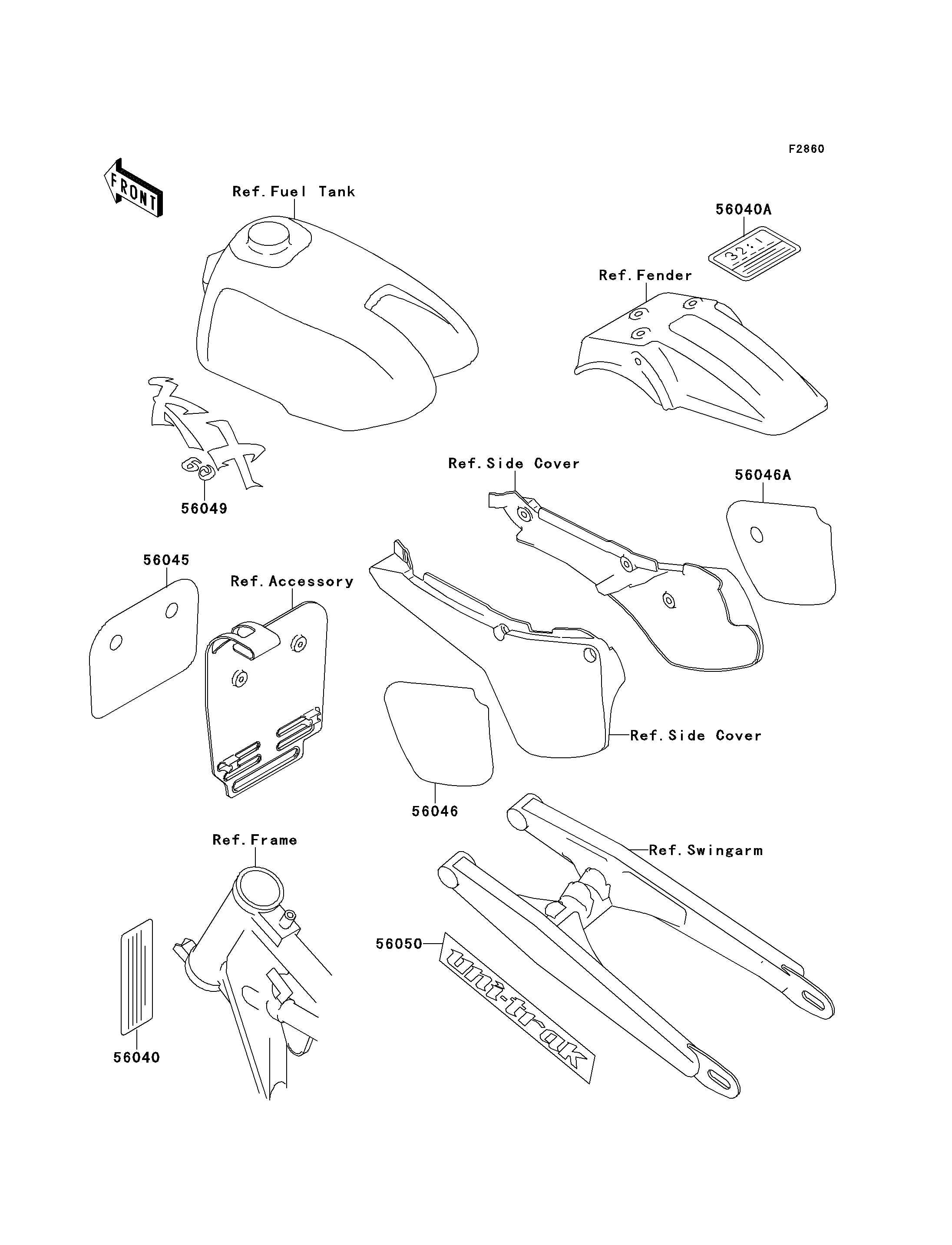

56040
56040A
56045
56046
56046A
56049
56050
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-WARNING,NOISE 56040 56040-1101 1
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1
PATTERN,NUMBER PLATE 56045 56045-1719 1
PATTERN,SIDE COVER,LH 56046 56046-1705 1
PATTERN,SIDE COVER,RH 56046A 56046-1706 1
PATTERN,FUEL TANK 56049 56049-1287 2
MARK,SWING ARM,UNI-TRAK 56050 56050-1422 2
