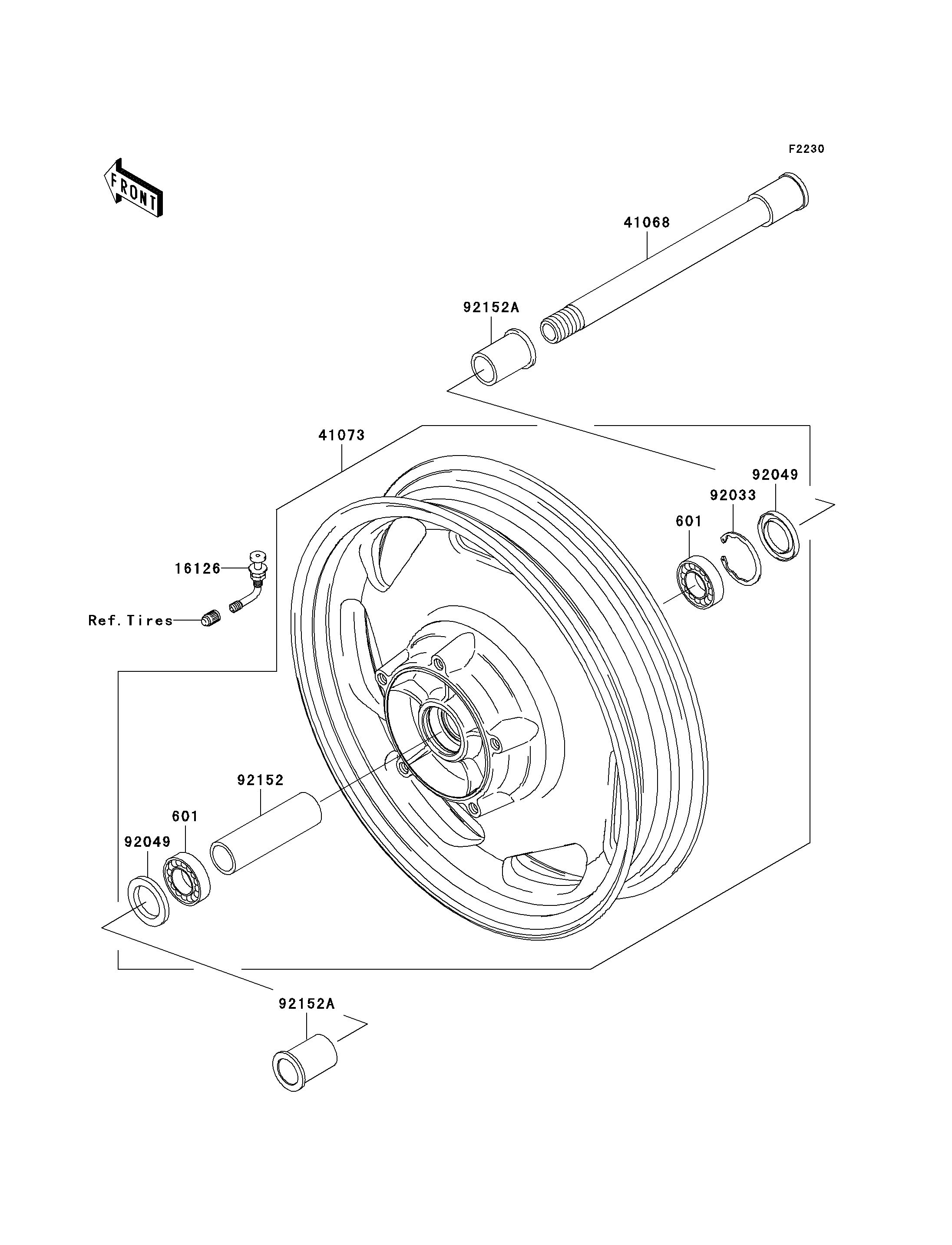

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6005UU 601 601B6005UU 2
VALVE 16126 16126-1365 1
AXLE,FR 41068 41068-1465 1
WHEEL-ASSY,FR 41073 41073-0031 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,BJN-C2 32X47X5 92049 92049-0050 2
COLLAR,FR HUB,L=109 92152 92152-1308 1
COLLAR,FR HUB,L=46.5 92152A 92152-1492 2
