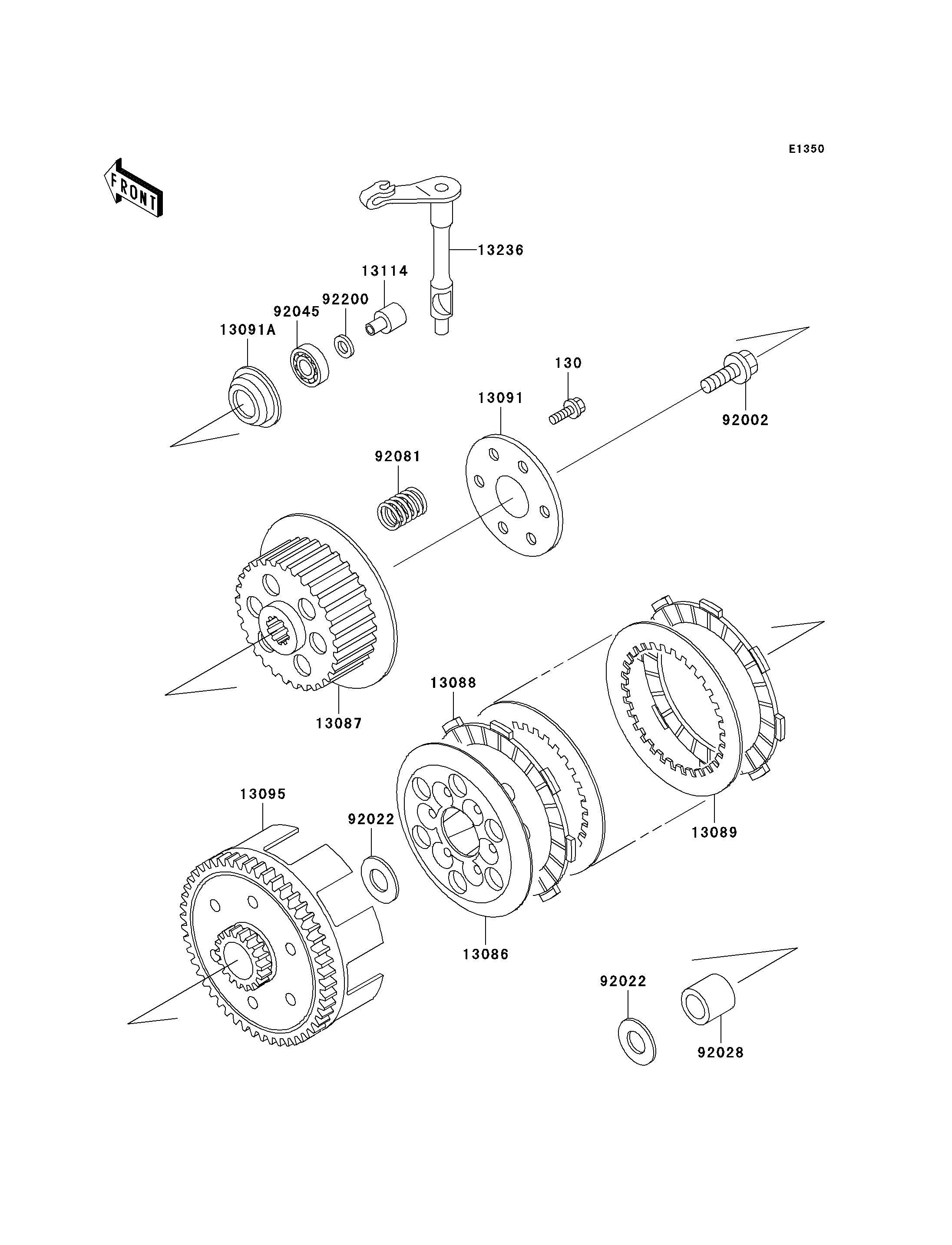

Parts Diagrams |
130
13086
13087
13088
13089
13091
13091A
13095
13114
13236
92002
92022
92022
92028
92045
92081
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130P0520 | 6 | ||
| WHEEL-CLUTCH | 13086 | 13086-1002 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1051 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1010 | 5 | ||
| PLATE-CLUTCH | 13089 | 13089-1087 | 4 | ||
| HOLDER,CLUTCH SPRING | 13091 | 13091-1115 | 1 | ||
| HOLDER,CLUTCH PUSHER | 13091A | 13091-1133 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1042 | 1 | ||
| PUSHER-CLUTCH | 13114 | 13114-1055 | 1 | ||
| LEVER-COMP,RELEASE | 13236 | 13236-1338 | 1 | ||
| BOLT,10X30 | 92002 | 92002-1697 | 1 | ||
| WASHER,17.3X28X1 | 92022 | 92022-255 | 2 | ||
| BUSHING | 92028 | 92028-1967 | 1 | ||
| BEARING-BALL,627 | 92045 | 92045-1236 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1175 | 6 | ||
| WASHER,7X12.5X0.8 | 92200 | 92200-1197 | 1 |
