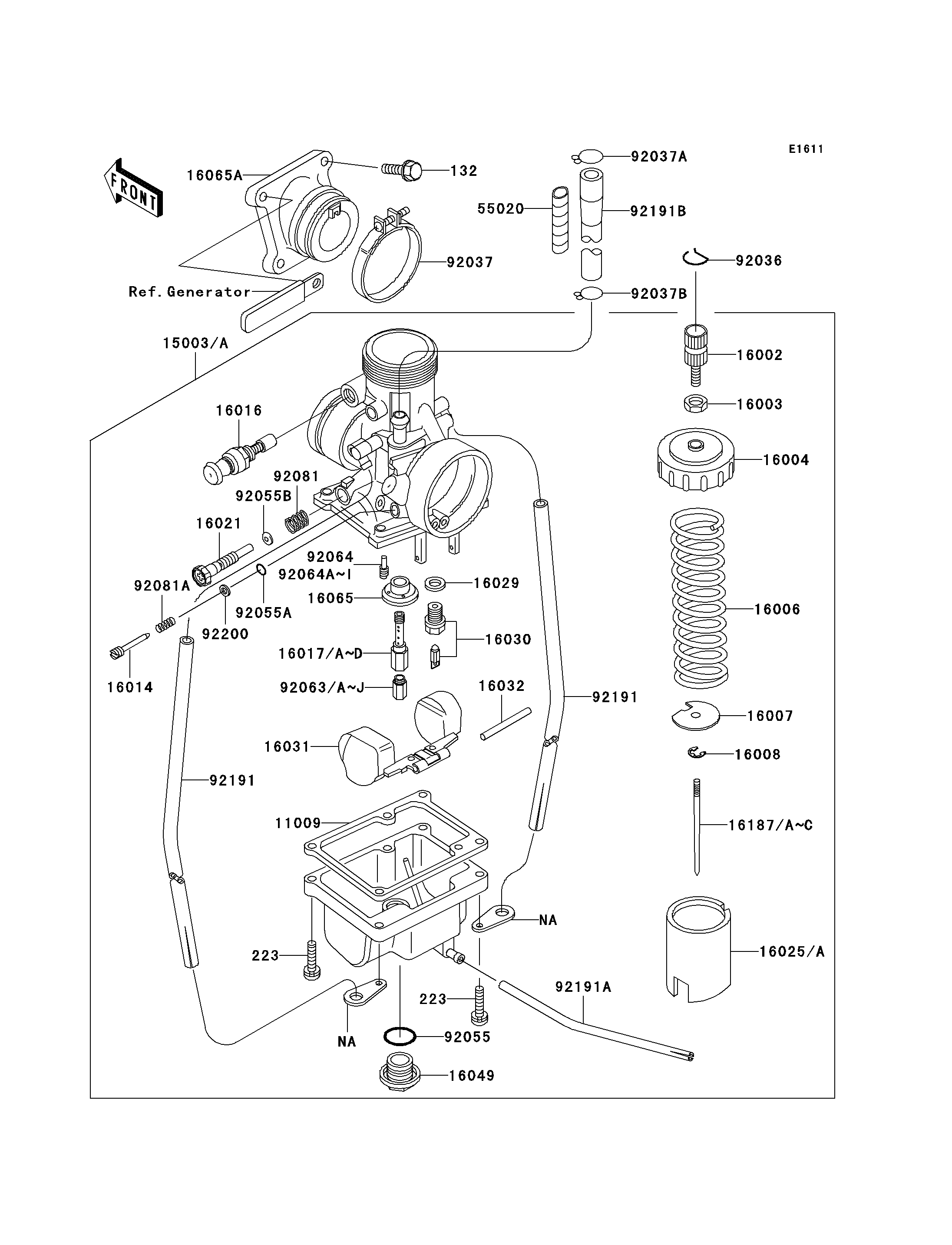

2004 KX65 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
15003A
15003A
15003A
16002
16002
16002
16003
16003
16003
16004
16004
16004
16006
16006
16006
16007
16007
16007
16008
16008
16008
16014
16014
16014
16016
16016
16016
16017
16017
16017
16017A
16017A
16017A
16017B
16017B
16017B
16017C
16017C
16017C
16017D
16017D
16017D
16021
16021
16021
16025
16025
16025
16029
16029
16029
16030
16030
16030
16031
16031
16031
16032
16032
16032
16049
16049
16049
16065
16065
16065
16065A
16065A
16065A
16187B
16187B
16187B
16187C
16187C
16187C
55020
55020
55020
92036
92036
92036
92037
92037
92037
92037A
92037A
92037A
92037B
92037B
92037B
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92063
92063
92063
92063A
92063A
92063A
92063B
92063B
92063B
92063C
92063C
92063C
92063D
92063D
92063D
92063G
92063G
92063G
92064
92064
92064
92064A
92064A
92064A
92064D
92064D
92064D
92064E
92064E
92064E
92064G
92064G
92064G
92081
92081
92081
132
132
132
223
223
223
223
223
223
92081A
92081A
92081A
92191
92191
92191
92191
92191
92191
92191A
92191A
92191A
92191B
92191B
92191B
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1147 1
CARBURETOR-ASSY 15003A 15003-1669 1
ADJUSTER-CABLE 16002 16002-011 1
NUT,ADJUST LOCK 16003 16003-006 1
CAP-CHAMBER 16004 16004-025 1
SPRING,THROTTLE VALVE 16006 16006-023 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-023 1
CLAMP 16008 16008-1010 1
SCREW-PILOT AIR 16014 16014-1116 1
PLUNGER,STARTER 16016 16016-1052 1
JET-NEEDLE,N-8 16017 16017-1412 1 (OPTION)
JET-NEEDLE,O-0 16017A 16017-1413 1
JET-NEEDLE,O-2 16017B 16017-1414 1 (OPTION)
JET-NEEDLE,O-4 16017C 16017-1415 1 (OPTION)
JET-NEEDLE,N-6 16017D 16017-1418 1 (OPTION)
SCREW-THROTTLE STOP 16021 16021-1224 1
VALVE-THROTTLE,CA1.5 16025 16025-1040 1
GASKET,FLOAT VALVE SEAT 16029 16029-004 1
VALVE-FLOAT,#2.5 16030 16030-1095 1
FLOAT 16031 16031-1005 1
PIN,FLOAT 16032 16032-003 1
COVER-MAIN JET 16049 16049-1001 1
HOLDER,JET NEEDLE 16065 16065-1020 1
HOLDER-CARBURETOR 16065A 16065-1366 1
NEEDLE-JET,5GSP68 16187B 16187-1226 1
NEEDLE-JET,5GSP69 16187C 16187-1227 1 (OPTION)
GUARD,FUEL TUBE 55020 55020-1787 1
RING-SNAP 92036 92036-018 1
CLAMP 92037 92037-1305 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP 92037B 92037-1712 1
RING-O,MAIN JET COVER 92055 92055-1061 1
RING-O,AIR SCREW 92055A 92055-1658 1
RING-O 92055B 92055-2068 1
JET-MAIN,#170 92063 92063-019 1 (OPTION)
JET-MAIN,#180 92063A 92063-020 1 (OPTION)
JET-MAIN,#190 92063B 92063-021 1
JET-MAIN,#200 92063C 92063-022 1 (OPTION)
JET-MAIN,#210 92063D 92063-023 1 (OPTION)
JET-MAIN,#230 92063G 92063-025 1 (OPTION)
JET-PILOT,#20 92064 92064-021 1 (OPTION)
JET-PILOT,#30 92064A 92064-022 1 (OPTION)
JET-PILOT,#25 92064D 92064-032 1
JET-PILOT,#22.5 92064E 92064-040 1 (OPTION)
JET-PILOT,#27.5 92064G 92064-1033 1 (OPTION)
SPRING,THROTTLE ADJUST 92081 92081-1152 1
BOLT-FLANGED-SMALL 132 132G0620 4
SCREW-PAN-WS-CROS 223 223B0416 4
SPRING,STOP SCREW 92081A 92081-1153 1
TUBE,3X5X280 92191 92191-1495 2
TUBE,3X5X220 92191A 92191-1496 1
TUBE 92191B 92191-1611 1
WASHER,PILOT AIR SCREW 92200 92200-1564 1
