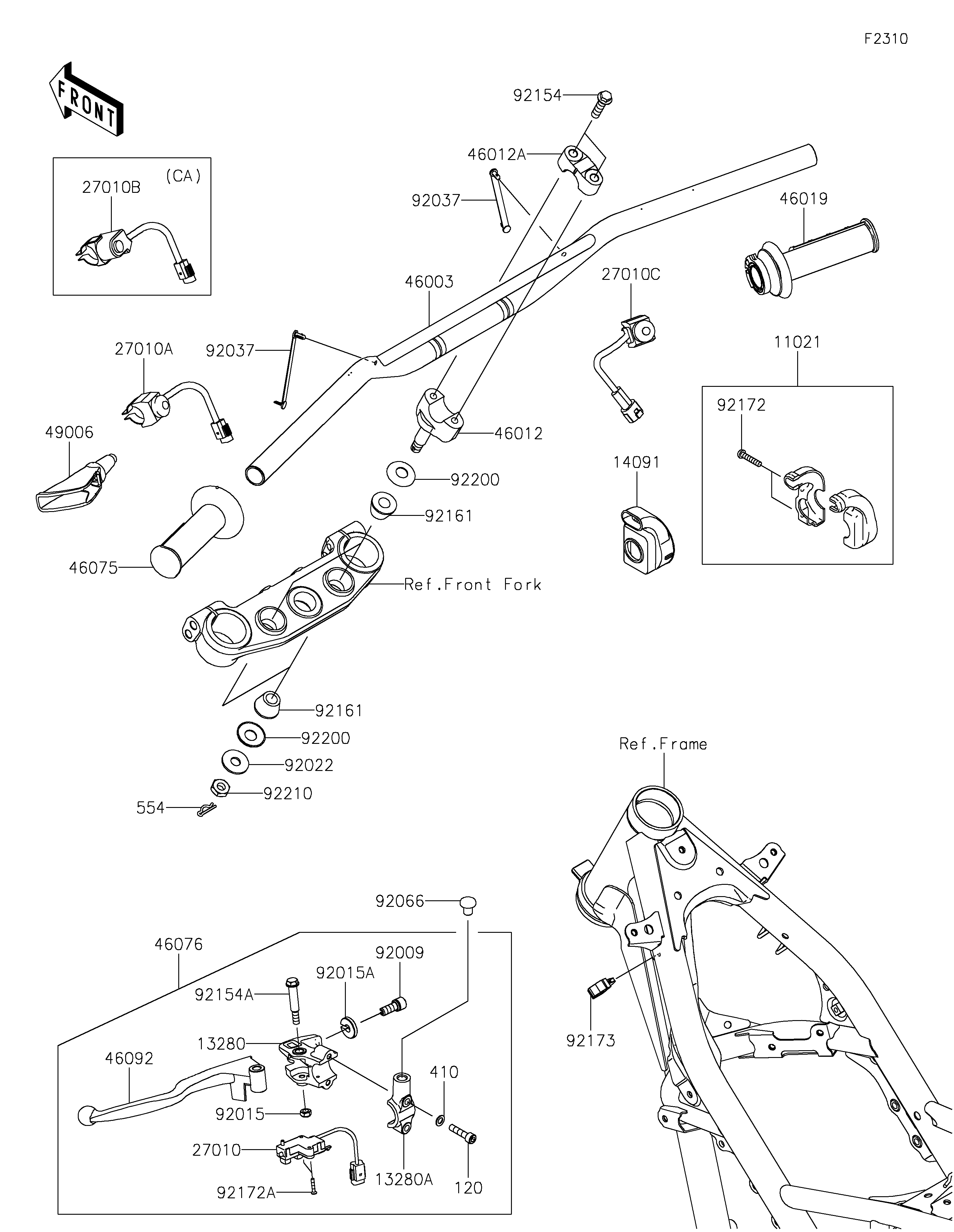

2021 KLX®230R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11021
13280
13280A
14091
27010
27010B
27010C
46003
46012
46012A
46019
46075
46076
46092
49006
92009
92015
92015A
92022
92037
92037
92066
92154
92154A
92161
92161
92172
92172A
92173
92200
92200
92210
120
410
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,THROTTLE 11021 11021-0035 1
HOLDER,LEVER 13280 13280-0929 1
HOLDER,MIRROR 13280A 13280-0930 1
COVER,THROTTLE CASE 14091 14091-0182 1
SWITCH,CLUTCH 27010 27010-0905 1
SWITCH,ENGINE STOP 27010B 27010-0927 1 CA
SWITCH,ENGINE START 27010C 27010-0928 1
HANDLE,P.SILVER 46003 46003-0795-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012 46012-0075-458 2
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0380-458 2
GRIP-ASSY,THROTTLE 46019 46019-0041 1
GRIP,LH 46075 46075-0072 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0158 1
LEVER-GRIP,CLUTCH 46092 46092-0576 1
BOOT,LEVER HOLDER 49006 49006-0080 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
WASHER,10.2X28X2 92022 92022-1088 2
CLAMP,SPEED,L=80.5 92037 92037-1903 2
PLUG 92066 92066-0965 1
BOLT,FLANGED,8X30 92154 92154-1246 4
BOLT,FLANGED,6X44 92154A 92154-2331 1
DAMPER,12X26X19 92161 92161-2116 4
SCREW,5X20 92172 92172-0069 2
SCREW,3X16 92172A 92172-0183 2
CLAMP 92173 92173-2074 1
WASHER,12.5X27.6X1.2 92200 92200-0872 4
NUT,LOCK,10MM 92210 92210-1672 2
BOLT-SOCKET,6X25 120 120CB0625 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
PIN-SNAP 554 554DA0800 2
