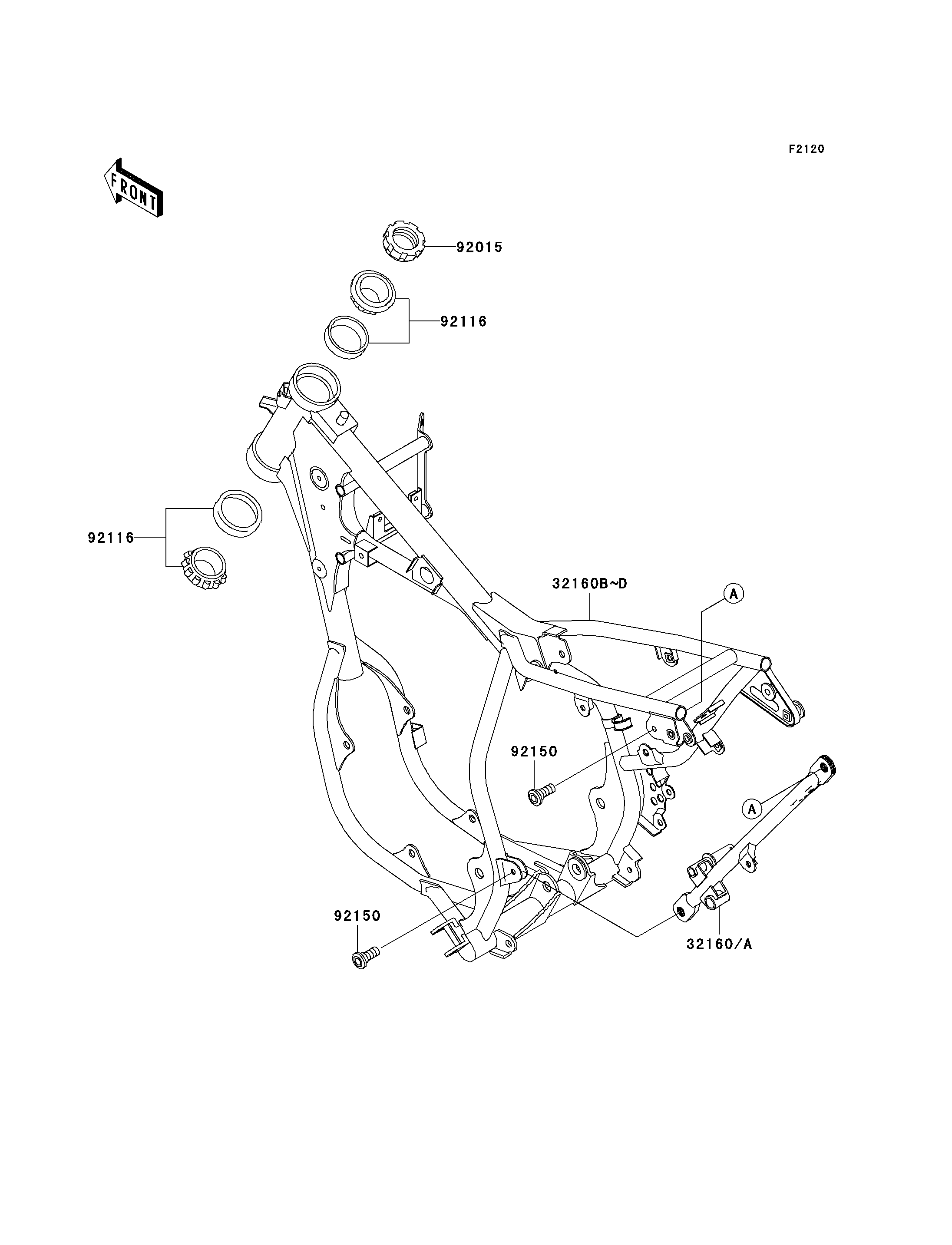

32160
32160B
92015
92116
92116
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,SUB,L.GREEN 32160 32160-1611-CC 1
FRAME-COMP,L.GREEN 32160B 32160-1719-CC 1
NUT,STEERING STEM,25MM 92015 92015-1684 1
BEARING-ROLLER,H1-CAP32005JRRS 92116 92116-1065 2
BOLT,SOCKET,8X20 92150 92150-1839 2
