132
35004
35019
35022
92015
92015
92022
92022
92143
92150
92150
92150A
92150A
92152

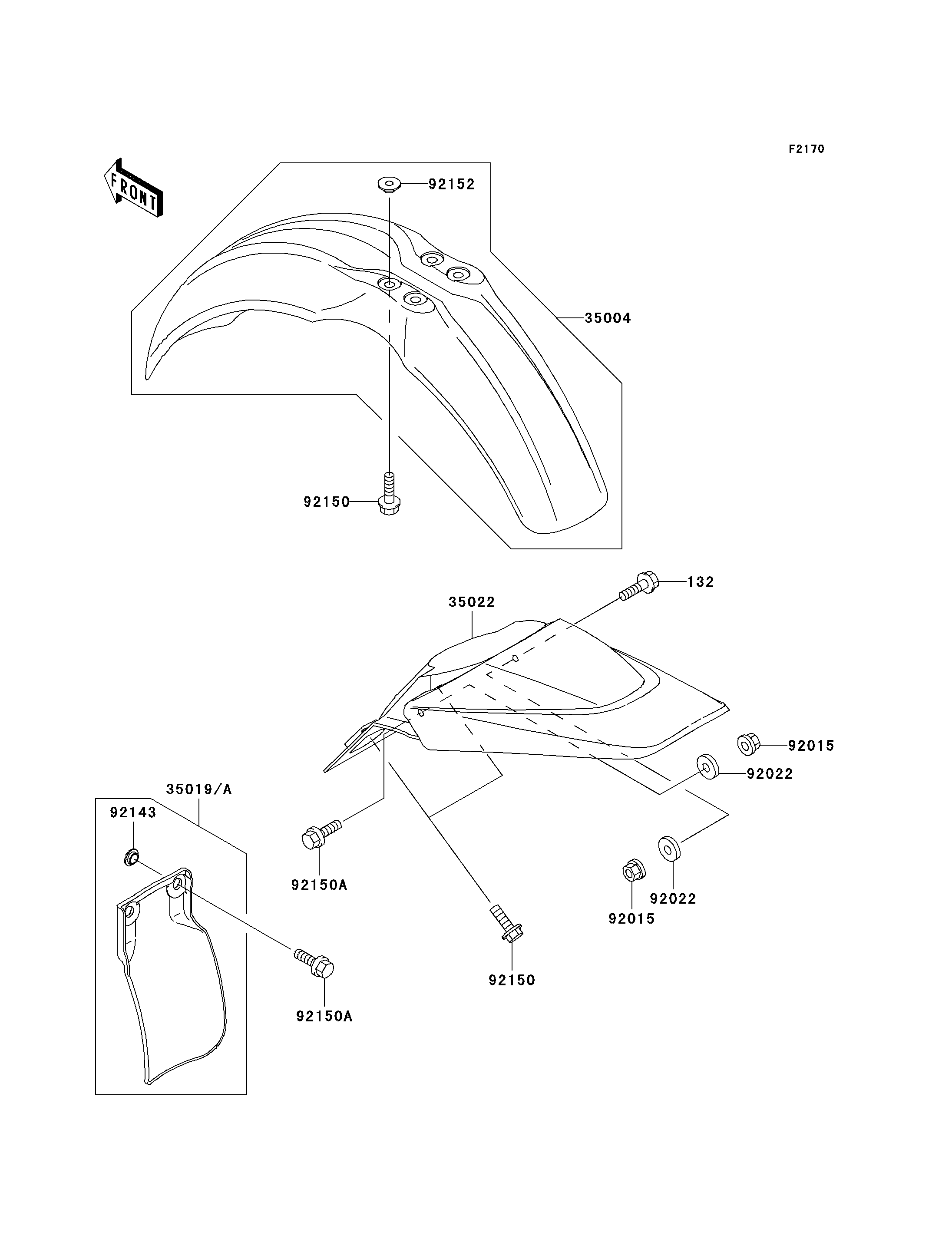

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 1
FENDER-FRONT,L.GREEN 35004 35004-1416-6W 1
FLAP,REAR FENDER,WHITE 35019 35019-1364-RZ 1
FENDER-COMP-REAR,L.GREEN 35022 35022-1342-6W 1
NUT,FLANGED,6MM 92015 92015-1078 2
WASHER,6.5X20X1.6 92022 92022-125 2
COLLAR 92143 92143-1196 2
BOLT,6X20 92150 92150-1339 6
BOLT,FLANGED,6X16 92150A 92150-1506 3
COLLAR 92152 92152-1255 4
