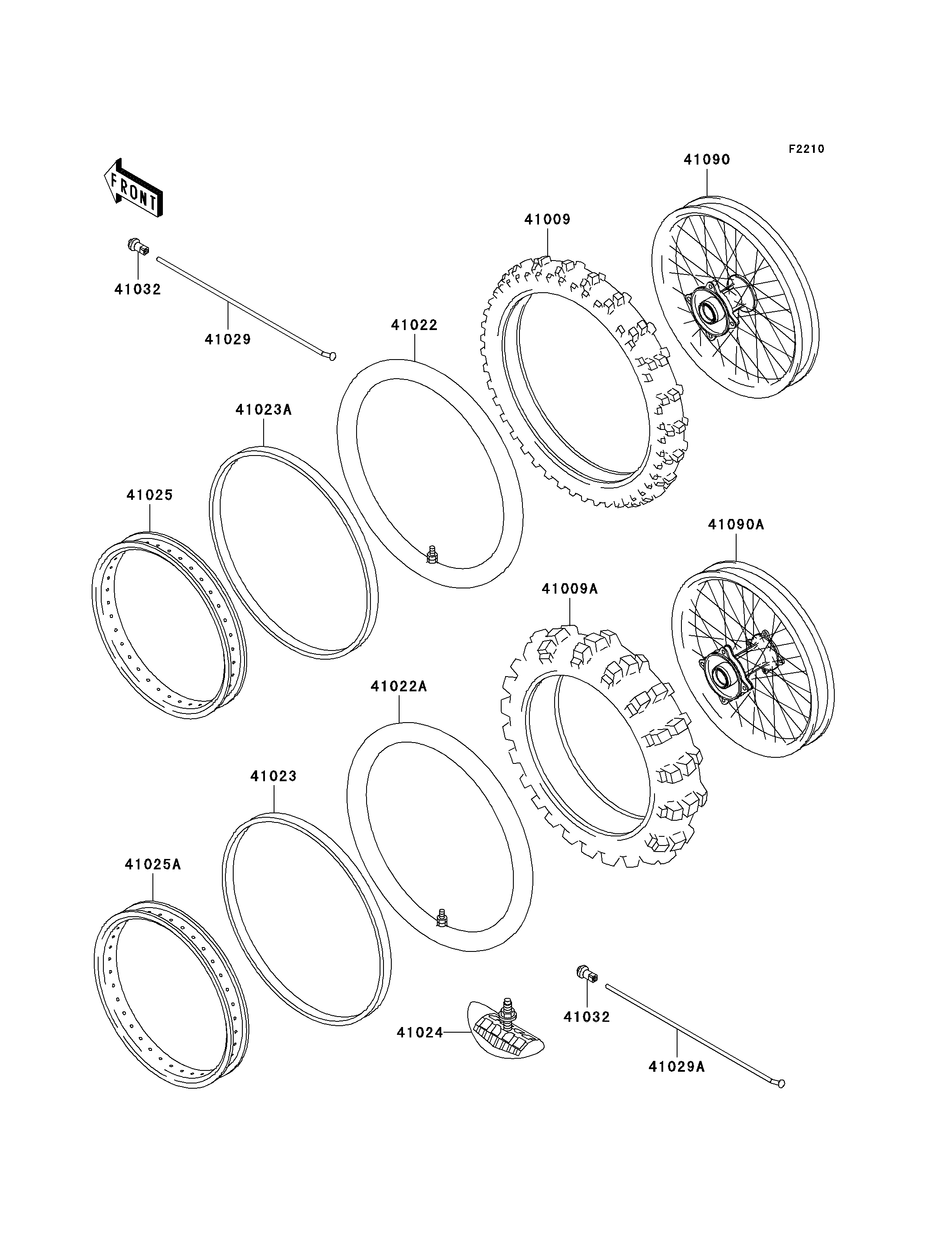

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,60/100-14 30M,D755F(D) 41009 41009-1258 1
TIRE,RR,80/100-12 41M,D755(D) 41009A 41009-1259 1
TUBE-TIRE,60/100-14(D) 41022 41022-1114 1
TUBE-TIRE,80/100-12(D) 41022A 41022-1115 1
BAND-RIM,80/100-12(D) 41023 41023-1066 1
BAND-RIM,80/100-14(D) 41023A 41023-1068 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
RIM,FR,1.40X14 41025 41025-1388 1
RIM,RR,1.60X12 41025A 41025-1389 1
SPOKE-INNER,FR,150MMX159D 41029 41029-1302 28
SPOKE-INNER,RR,125.5MMX167D 41029A 41029-1303 28
NIPPLE-SPOKE 41032 41032-1055 56
WHEEL-SUB ASSY,FR 41090 41090-1124 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1125 1 (OPTION)
