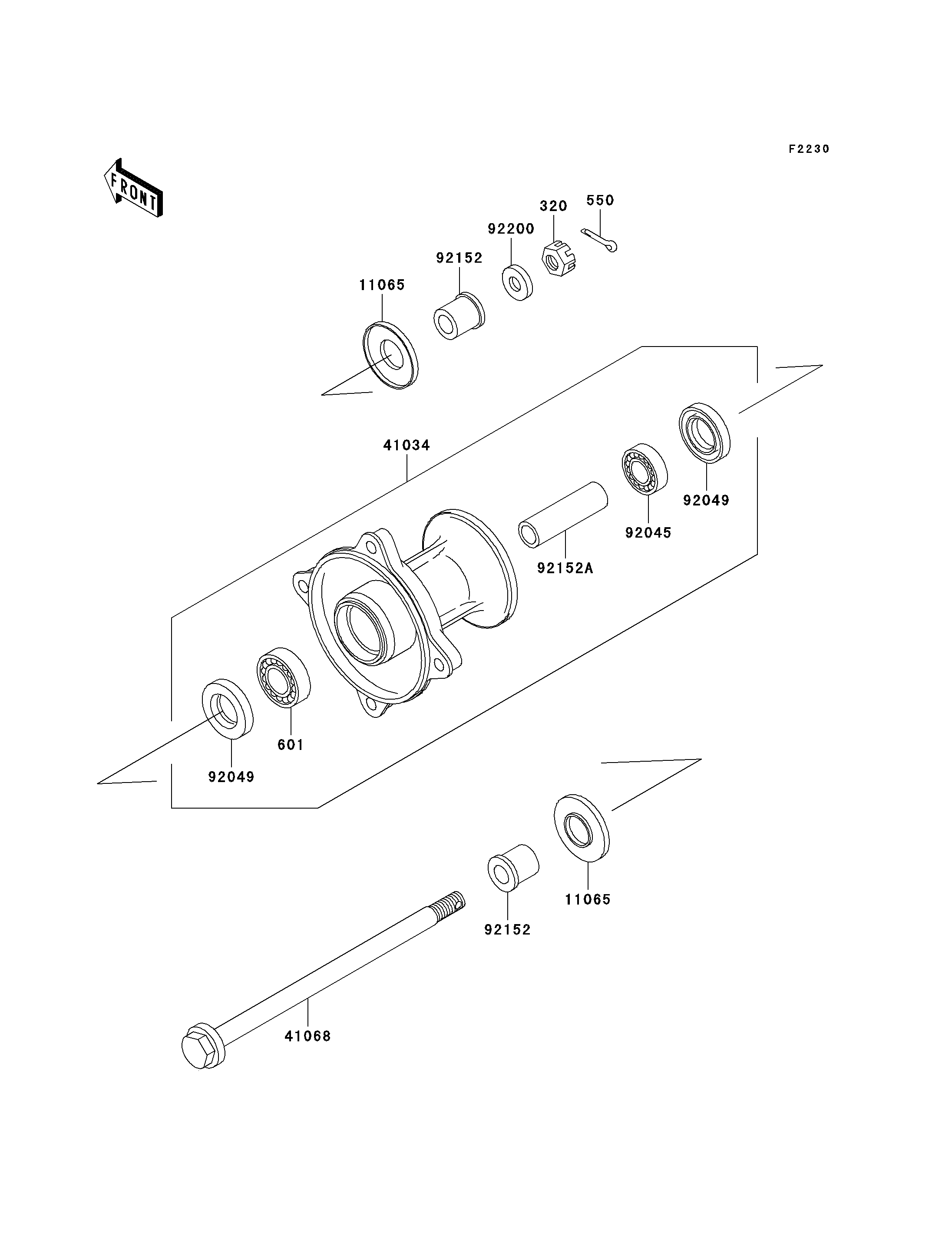

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-CASTLE 320 320G1200 1
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6201UUC3 601 601B6301UU 1
CAP 11065 11065-1137 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1302 1
AXLE,FR 41068 41068-1418 1
BEARING-BALL,TMB201LLUC3/2A 92045 92045-1062 1
SEAL-OIL,TC20376.5 92049 92049-1257 2
COLLAR,AXLE,L=15.5 92152 92152-1196 2
COLLAR,FR BRAKE DRUM,L=59 92152A 92152-1197 1
WASHER,12.3X23X2.3 92200 92200-1004 1
