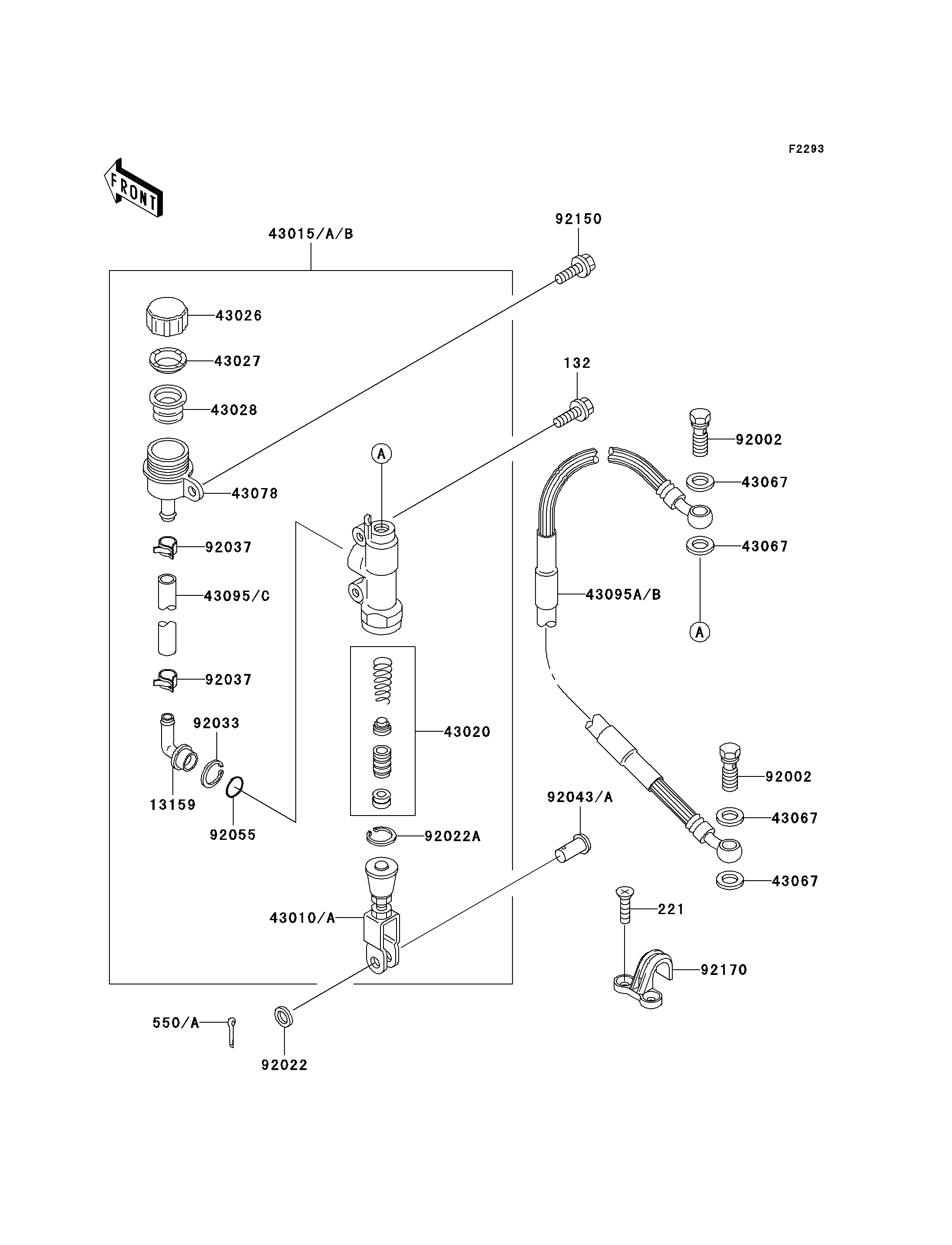

2004 KX65 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
221
550
13159
43010
43015B
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095B
43095C
92002
92002
92022
92022A
92033
92037
92037
92043
92055
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0614 2
SCREW-CSK-CROS 221 221B0510 2
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1076 1
CYLINDER-ASSY-MASTER,RR 43015B 43015-1694 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1068 1
HOSE-BRAKE,RR 43095B 43095-1228 1
HOSE-BRAKE,RR MASTER CYLINDER 43095C 43095-1254 1
BOLT,OIL,L=23 92002 92002-1888 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,6X14 92150 92150-1340 1
CLAMP,HOSE 92170 92170-1684 1
