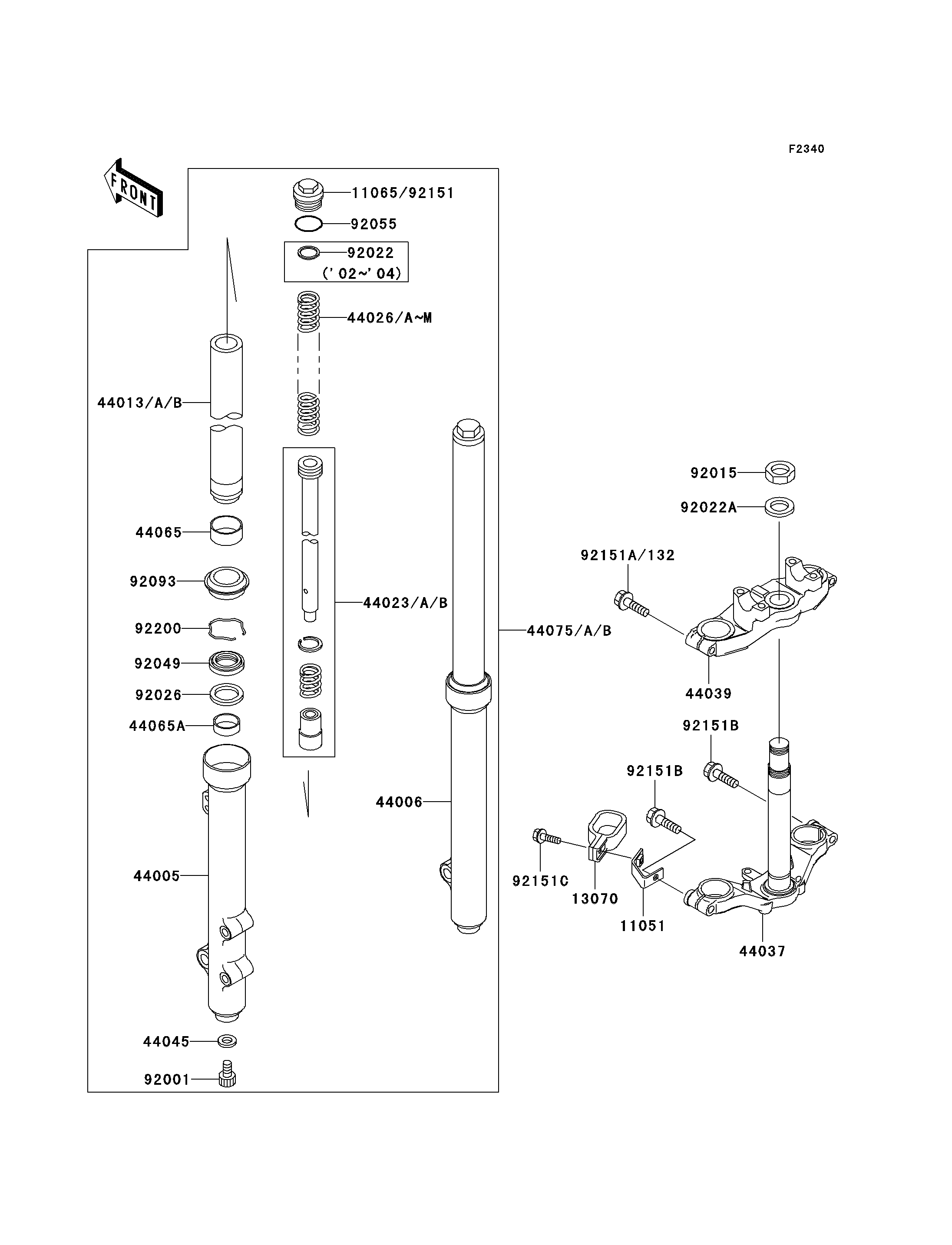

2001 KX65 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11051
11051
13070
13070
44005
44005
44006
44006
44013A
44013A
44023A
44023A
44026D
44026D
44026E
44026E
44026F
44026F
44026G
44026G
44026H
44026H
44037
44037
44039
44039
44045
44045
44065
44065
44065A
44065A
44075A
44075A
92001
92001
92015
92015
92022A
92022A
92026
92026
92049
92049
92055
92055
92093
92093
92151
92151
92151A
92151A
92151B
92151B
92151B
92151B
92151C
92151C
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE HOSE GUIDE 11051 11051-1892 1
GUIDE,BRAKE HOSE 13070 13070-1349 1
PIPE-LEFT FORK OUTER 44005 44005-1404 1
PIPE-RIGHT FORK OUTER 44006 44006-1402 1
PIPE-FORK INNER 44013A 44013-1491 2
CYLINDER-SET-FORK 44023A 44023-1154 2
SPRING-FRONT FORK,K=0.26 44026D 44026-1723 2
SPRING-FRONT FORK,K=0.24 44026E 44026-1725 2 (OPTION)
SPRING-FRONT FORK,K=0.25 44026F 44026-1726 2 (OPTION)
SPRING-FRONT FORK,K=0.27 44026G 44026-1727 2 (OPTION)
SPRING-FRONT FORK,K=0.28 44026H 44026-1728 2 (OPTION)
HOLDER-FORK UNDER 44037 44037-1397 1
HOLDER-FORK UPPER 44039 44039-1302 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1123 2
BUSHING-FRONT FORK 44065A 44065-1133 2
DAMPER-SET-FORK 44075A 44075-1142 1
BOLT,FORK CYLINDER 92001 92001-1464 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
WASHER,STEERING STEM 92022A 92022-1873 1
SPACER 92026 92026-1365 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1524 2
RING-O,FORK TOP 92055 92055-1367 2
SEAL,FORK OUTER TUBE 92093 92093-1519 2
BOLT,FORK TOP 92151 92151-1262 2
BOLT,FLANGED,8X35 92151A 92151-1635 2
BOLT,FLANGED,10X35 92151B 92151-1636 2
BOLT,FLANGED,5X16 92151C 92151-1637 1
WASHER 92200 92200-1496 2
