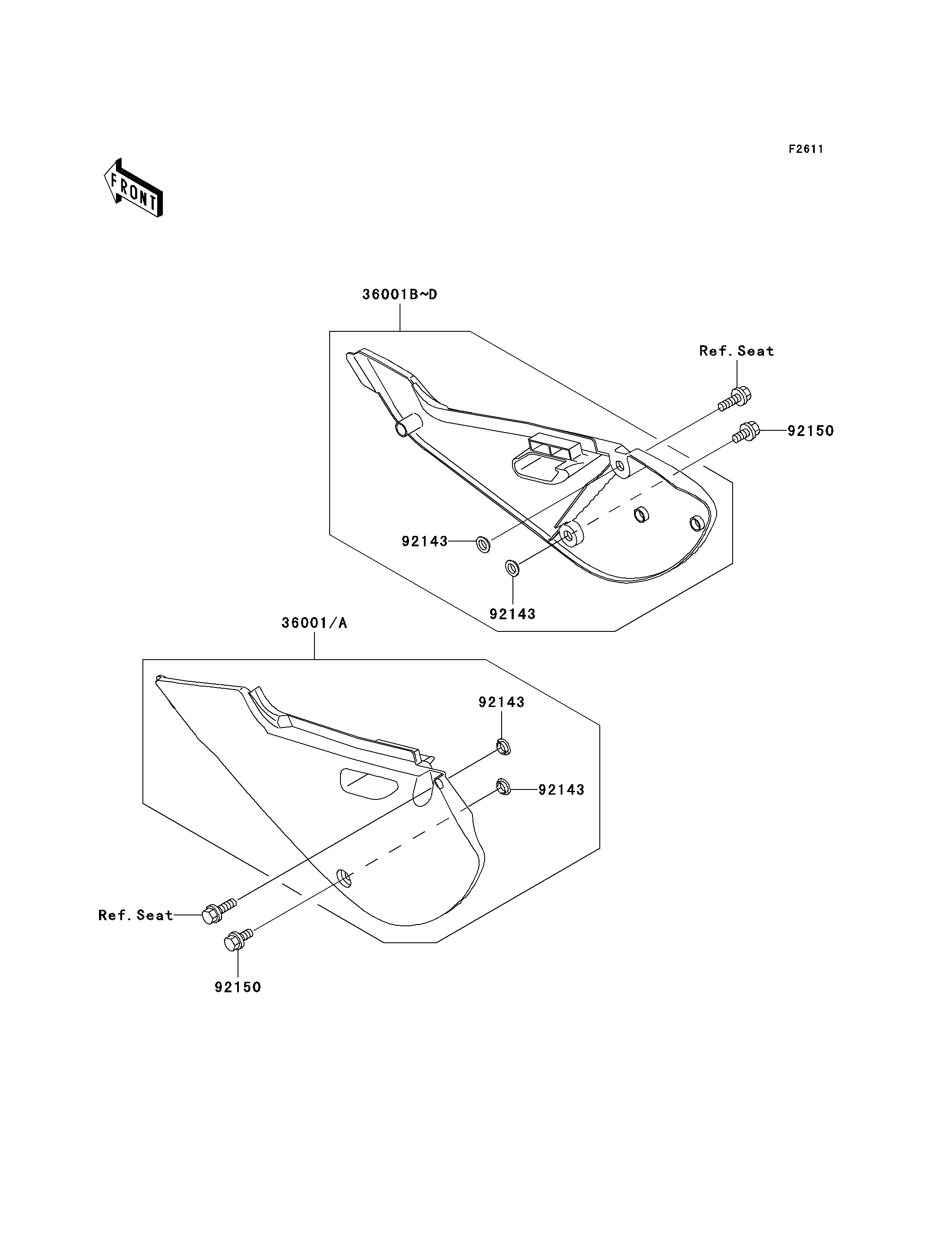

36001
36001C
92143
92143
92143
92143
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,S.WHITE 36001 36001-1639-266 1
COVER-SIDE,RH,S.WHITE 36001C 36001-1667-266 1
COLLAR 92143 92143-1196 4
BOLT,6X14 92150 92150-1340 2
