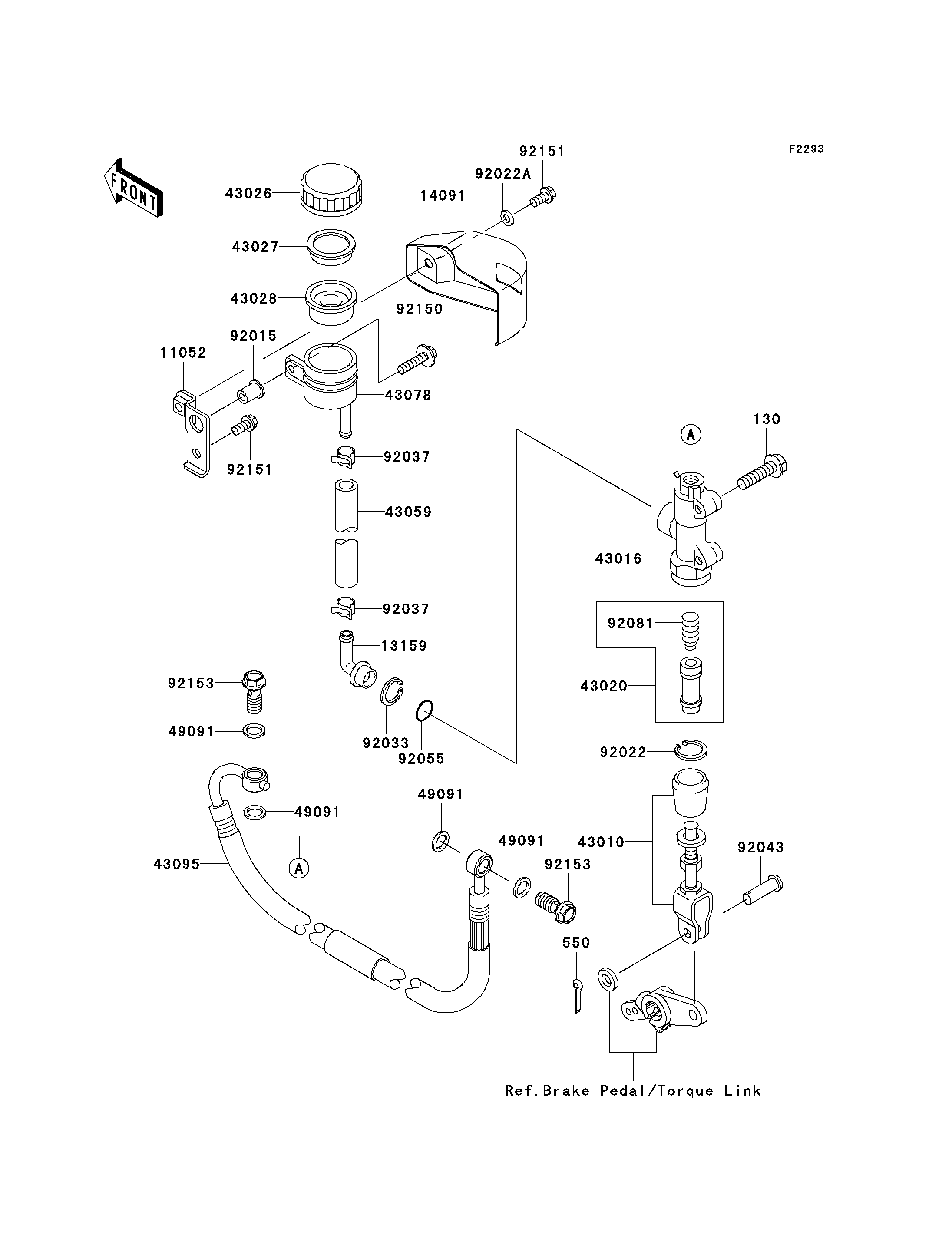

2008 Vulcan® 1600 Nomad™ - Rear Master Cylinder
130
550
11052
13159
14091
43010
43016
43020
43026
43027
43028
43059
43078
43095
49091
49091
49091
49091
92015
92022
92022A
92033
92037
92037
92043
92055
92081
92150
92151
92151
92153
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X30 | 130 | 130J0830 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
BRACKET,RESERVOIR TANK | 11052 | 11052-1305 | 1 | ||
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
COVER,RESERVOIR TANK | 14091 | 14091-0412 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1055 | 1 | ||
CYLINDER-MASTER,RR | 43016 | 43016-1122 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059 | 43059-1318 | 1 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1178 | 1 | ||
HOSE-BRAKE,RR | 43095 | 43095-0150 | 1 | ||
WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
NUT | 92015 | 92015-1700 | 1 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
WASHER,6.2X11X1.5 | 92022A | 92022-183 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
PIN,8X16 | 92043 | 92043-1013 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
BOLT,6X25 | 92150 | 92150-1829 | 1 | ||
BOLT,FLANGED,6X12 | 92151 | 92151-1401 | 2 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 |
