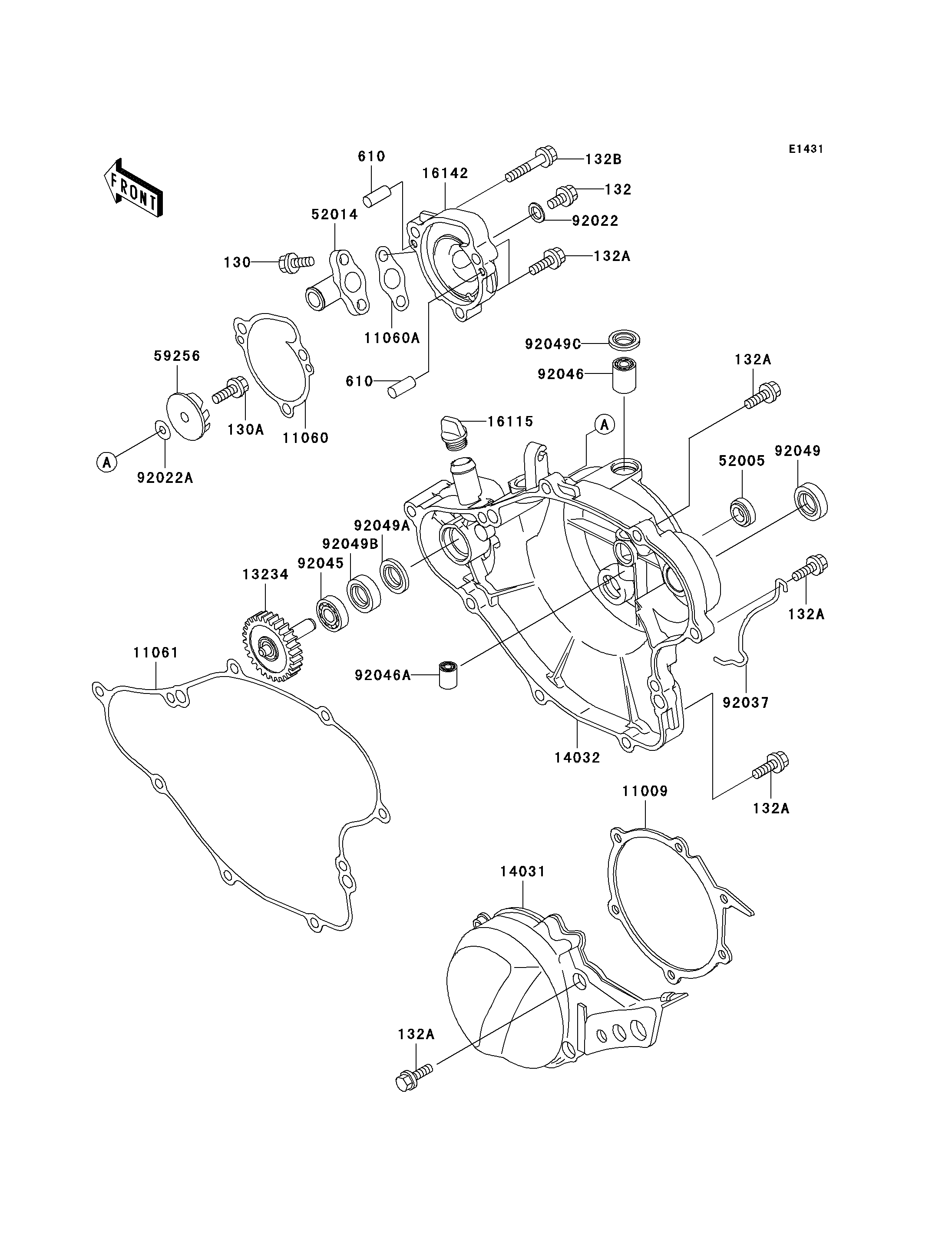

2005 KX65 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132A
132A
132A
132A
132A
132B
610
610
11009
11060
11060A
11061
13234
14031
14032
16115
16142
52005
52014
59256
92022
92022A
92037
92045
92046
92046A
92049
92049A
92049B
92049C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0516 2
BOLT-FLANGED 130A 130P0510 1
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 16
BOLT-FLANGED-SMALL 132B 132G0660 1
ROLLER,4X8 610 610A0408 2
GASKET,GENERATOR COVER 11009 11009-1974 1
GASKET,PUMP COVER 11060 11060-1924 1
GASKET,ELBOW 11060A 11060-1927 1
GASKET,CLUTCH COVER 11061 11061-0121 1
SHAFT-COMP,PUMP 13234 13234-1110 1
COVER-GENERATOR 14031 14031-0028 1
COVER-CLUTCH 14032 14032-1501 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP 16142 16142-1158 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-1094 1
IMPELLER 59256 59256-1064 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,5.2X13X1 92022A 92022-1380 1
CLAMP,TUBE 92037 92037-1236 1
BEARING-BALL,608MC3 92045 92045-1305 1
BEARING-NEEDLE,HK1010 92046 92046-1160 1
BEARING-NEEDLE,6BTM109 92046A 92046-1217 1
SEAL-OIL,SB16244 92049 92049-002 1
SEAL-OIL,MH8X18X3.5-A 92049A 92049-1359 1
SEAL-OIL,MHSD8X18X10J-1 92049B 92049-1366 1
SEAL-OIL,BG1408F0 92049C 92049-1414 1
