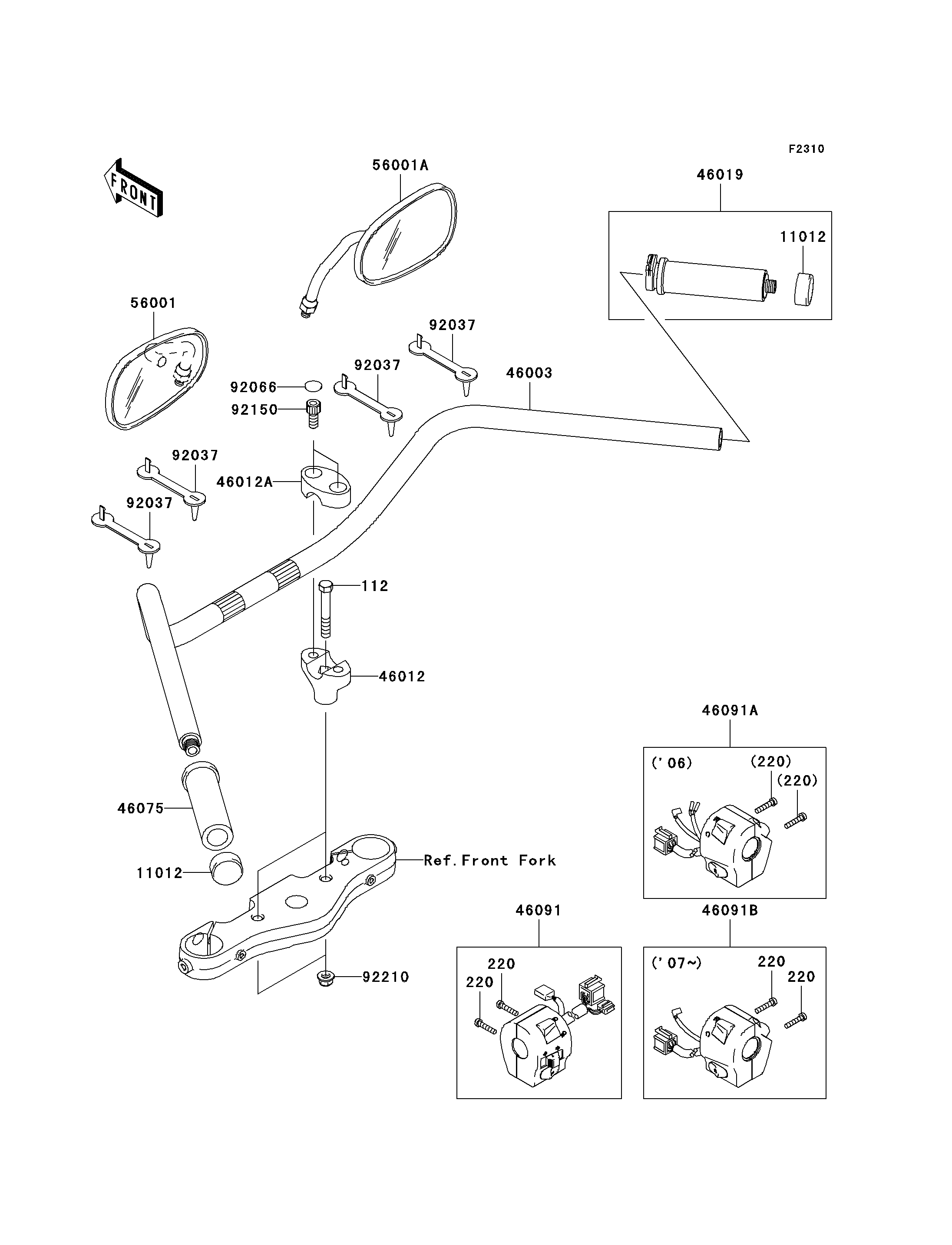

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,10X65 112 112H1065 2
SCREW-PAN-CROSS,5X25 220 220R0525 4
CAP,GRIP END 11012 11012-1975 2
HANDLE 46003 46003-0074 1
HOLDER-HANDLE,LWR 46012 46012-1272 2
HOLDER-HANDLE,UPP 46012A 46012-1273 2
GRIP-ASSY,THROTTLE 46019 46019-1109 1
GRIP,LH 46075 46075-1074 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0018 1
HOUSING-ASSY-CONTROL,RH 46091B 46091-0078 1
MIRROR-ASSY,LH 56001 56001-1592 1
MIRROR-ASSY,RH 56001A 56001-1593 1
CLAMP,SPEED,L=80.5 92037 92037-1903 4
PLUG 92066 92066-1285 4
BOLT,SOCKET,10X23 92150 92150-1942 4
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
