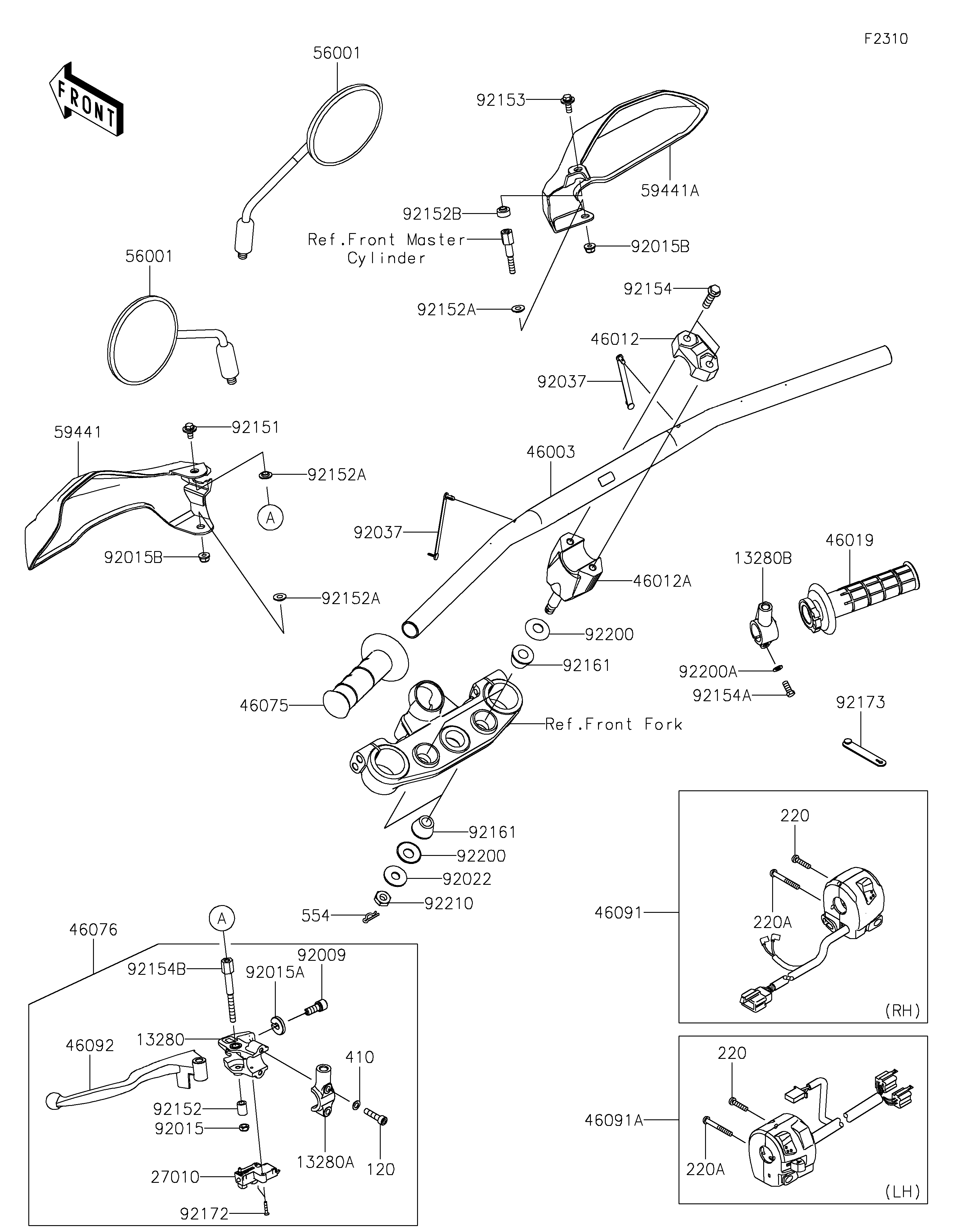

2022 KLX®230 SE - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
13280A
13280A
13280B
13280B
27010
27010
46003
46003
46012
46012
46012A
46012A
46019
46019
46075
46075
46076
46076
46091
46091
46091A
46091A
46092
46092
56001
56001
56001
56001
59441
59441
59441A
59441A
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92037
92037
92037
92037
92151
92151
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152B
92152B
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161
92161
92172
92172
92173
92173
92200
92200
92200
92200
92200A
92200A
92210
92210
120
120
220
220
220
220
220A
220A
220A
220A
410
410
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,LEVER 13280 13280-0929 1
HOLDER,MIRROR 13280A 13280-0930 1
HOLDER,MIRROR 13280B 13280-1000 1
SWITCH,CLUTCH 27010 27010-0729 1
HANDLE,FAT TYPE BAR,P.SILVER 46003 46003-0794-458 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0359-458 2
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0360-458 2
GRIP-ASSY,THROTTLE 46019 46019-0088 1
GRIP,LH 46075 46075-0644 1
LEVER-ASSY-GRIP 46076 46076-0161 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0452 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0455 1
LEVER-GRIP,CLUTCH 46092 46092-0576 1
MIRROR-ASSY 56001 56001-0419 2
COVER-HANDLE,LH,EBONY 59441 59441-0045-6C 1
COVER-HANDLE,RH,EBONY 59441A 59441-0046-6C 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
NUT,LOCK,FLANGED,6MM 92015B 92015-1603 2
WASHER,10.2X28X2 92022 92022-1088 2
CLAMP,SPEED,L=80.5 92037 92037-1903 2
BOLT,6X12 92151 92151-1985 1
COLLAR,6.5X10.5X14 92152 92152-2302 1
COLLAR,6.5X15X3.4 92152A 92152-2314 3
COLLAR 92152B 92152-2592 1
BOLT,FLANGED,6X16 92153 92153-1059 1
BOLT,FLANGED,8X30 92154 92154-1246 4
BOLT,UPSET,6X22 92154A 92154-1422 1
BOLT 92154B 92154-2359 1
DAMPER,12X26X19 92161 92161-2116 4
SCREW,3X16 92172 92172-0183 2
CLAMP 92173 92173-2199 1
WASHER,12.5X27.6X1.2 92200 92200-0872 4
WASHER,6.5X11.5X0.8 92200A 92200-0947 1
NUT,LOCK,10MM 92210 92210-1672 2
BOLT-SOCKET,6X25 120 120CB0625 2
SCREW-PAN-CROS,5X22 220 220AB0522 2
SCREW-PAN-CROS,5X40 220A 220AB0540 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
PIN-SNAP 554 554DA0800 2
