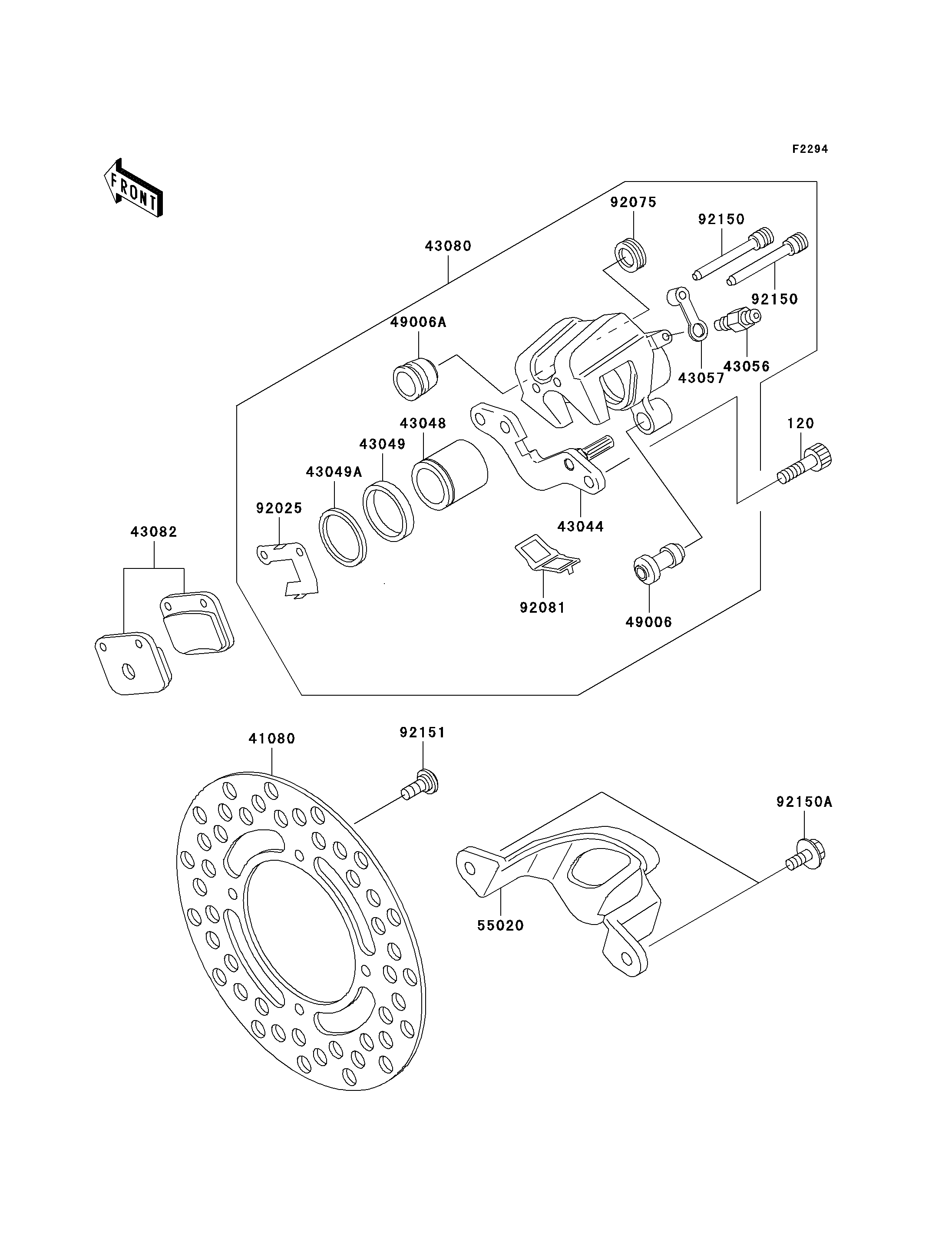

120
41080
43044
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
55020
92025
92075
92081
92150
92150
92150A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0816 2
DISC 41080 41080-1470 1
HOLDER-COMP-CALIPER,RR 43044 43044-1076 1
PISTON-CALIPER 43048 43048-1090 1
PACKING,PISTON SEAL 43049 43049-1060 1
PACKING,PISTON SEAL 43049A 43049-1061 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR 43080 43080-5132 1
PAD-ASSY-BRAKE 43082 43082-1241 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1089 1
GUARD,REAR CALIPER,WHITE 55020 55020-1707-RZ 1
SHIM,PAD 92025 92025-1817 1
DAMPER 92075 92075-1414 1
SPRING,PAD 92081 92081-1502 1
BOLT 92150 92150-1144 2
BOLT,6X14 92150A 92150-1340 2
BOLT,DISC PLATE,6MM 92151 92151-1799 4
