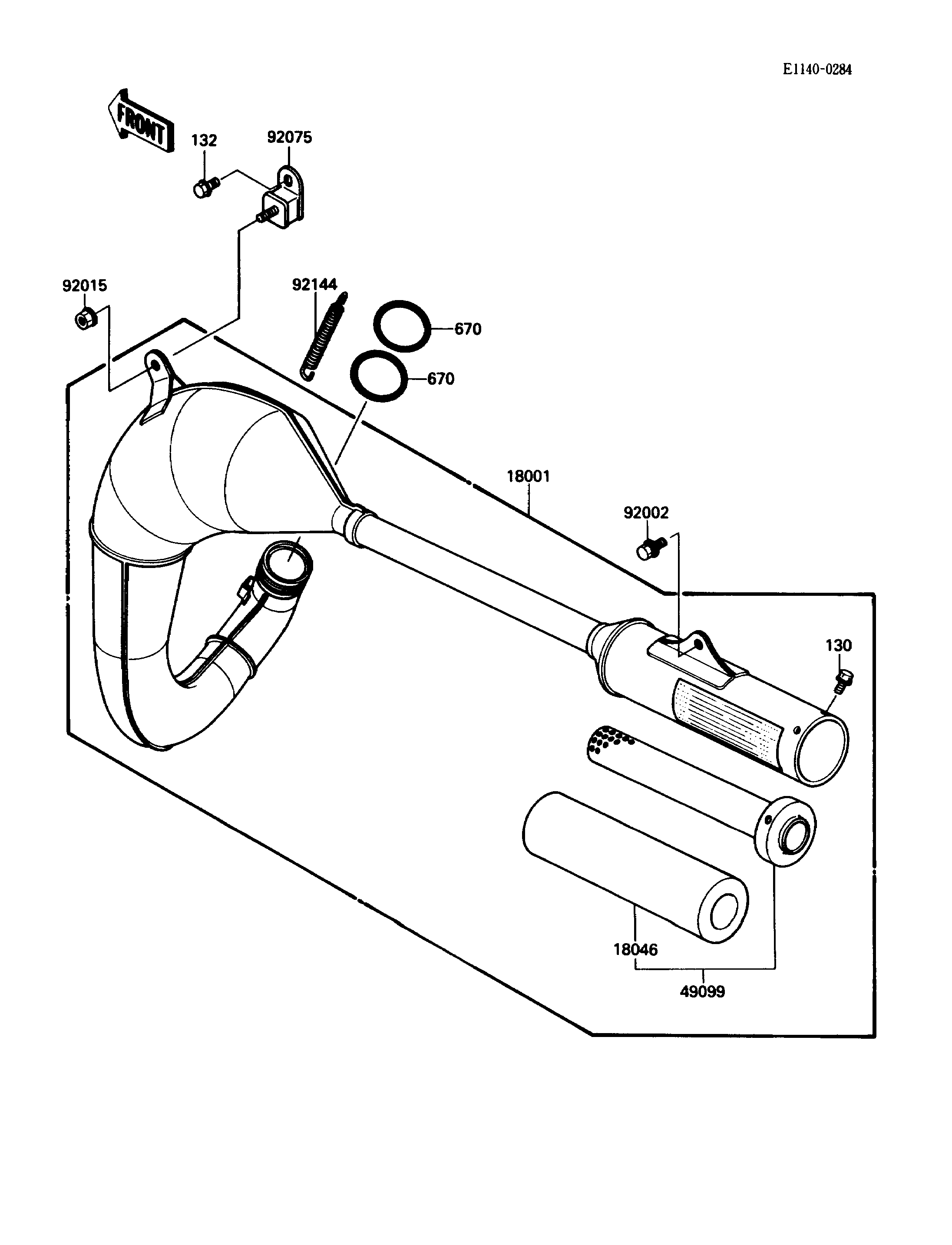

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MUFFLER 18001 18001-1668 1
WOOL,BAFFLE PIPE 18046 18046-1020 1
BAFFLE-PIPE MUFFLER 49099 49099-1113 1
BOLT,6X16 92002 92002-1461 1
NUT,FLANGED,6MM 92015 92015-1078 1
DAMPER,MUFFLER 92075 92075-1891 1
SPRING,EXHAUST CONNECTING 92144 92144-1229 1
BOLT-FLANGED 130 130G0508 2
BOLT-FLANGED-SMALL 132 132G0612 1
O RING,36MM 670 670E3036 2
