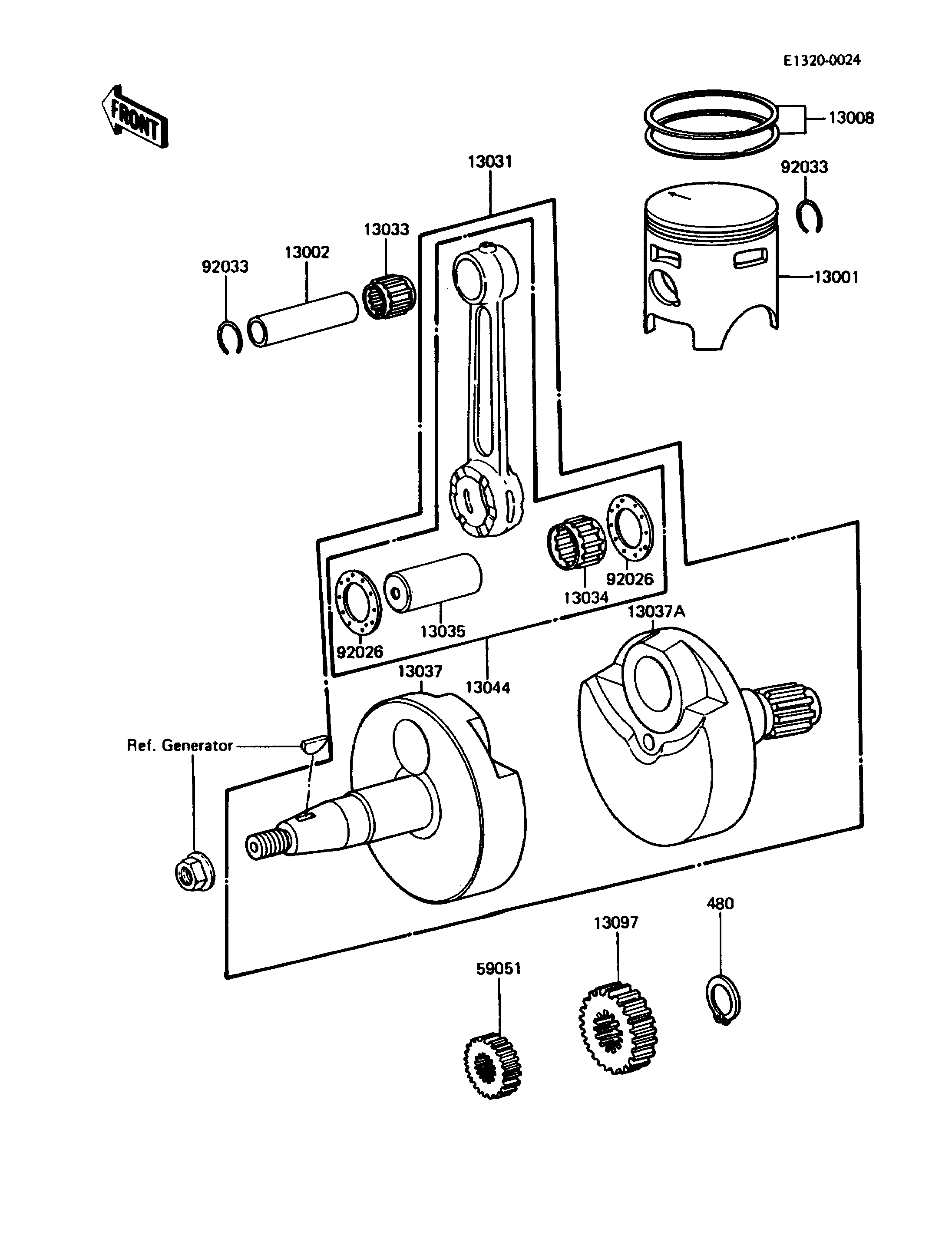

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-1259 1
PIN-PISTON 13002 13002-1079 1
RING-SET-PISTON 13008 13008-1100 1
CRANKSHAFT-COMP 13031 13031-1207 1
BEARING-SMALL END,14R1818AP-1 13033 13033-1053 1
BEARING-BIG END,H22X29X13.8 13034 13034-1072 1
PIN-CRANK 13035 13035-1054 1
CRANKSHAFT,LH 13037 13037-1269 1
CRANKSHAFT,RH 13037A 13037-1270 1
SET-CONNECTING ROD 13044 13044-5053 1
GEAR-PRIMARY SPUR,20T 13097 13097-1148 1
GEAR-SPUR,PUMP,22T 59051 59051-1146 1
SPACER,22.5X37X1.0 92026 92026-011 2
RING-SNAP 92033 92033-1050 2
CIRCLIP-TYPE-C,16MM 480 480J1600 1
