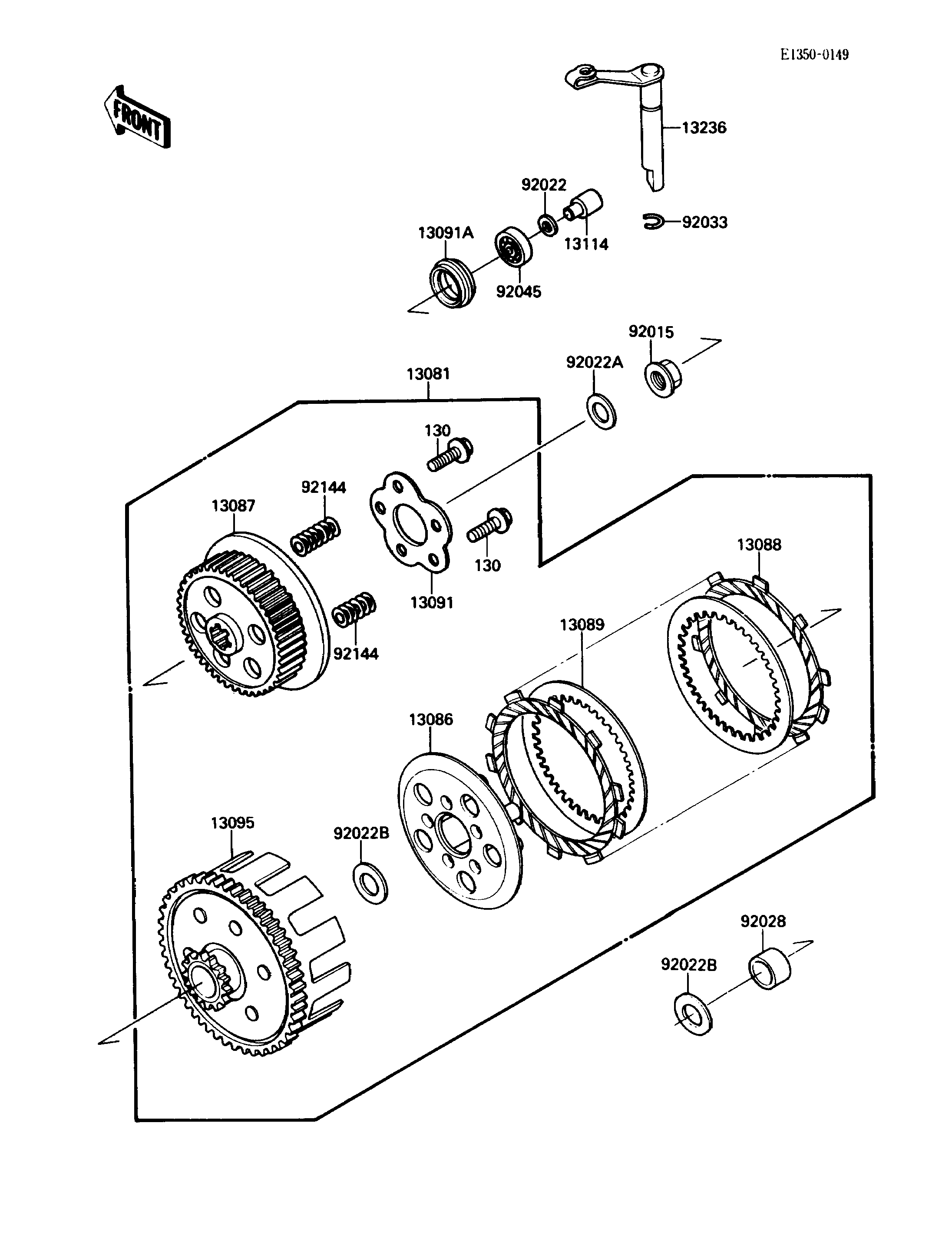

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081 13081-1257 1
WHEEL-CLUTCH 13086 13086-1058 1
HUB-CLUTCH 13087 13087-1090 1
PLATE-FRICTION 13088 13088-1070 7
PLATE-CLUTCH 13089 13089-005 6
HOLDER,CLUTCH 13091 13091-1324 1
HOLDER 13091A 13091-1517 1
HOUSING-COMP-CLUTCH 13095 13095-1165 1
PUSHER-CLUTCH 13114 13114-1053 1
LEVER-COMP,RELEASE 13236 13236-1158 1
NUT 92015 92015-1706 1
WASHER,7X12.5X0.8 92022 92022-1290 AR
WASHER,12.3X23X2.3 92022A 92022-1911 1
WASHER,17.3X28X1 92022B 92022-255 2
BUSHING,17X22X21.1 92028 92028-1149 1
RING-SNAP 92033 92036-023 1
BEARING-BALL,#627 92045 92045-026 1
SPRING,CLUTCH 92144 92144-1267 5
BOLT-FLANGED 130 130P0520 5
