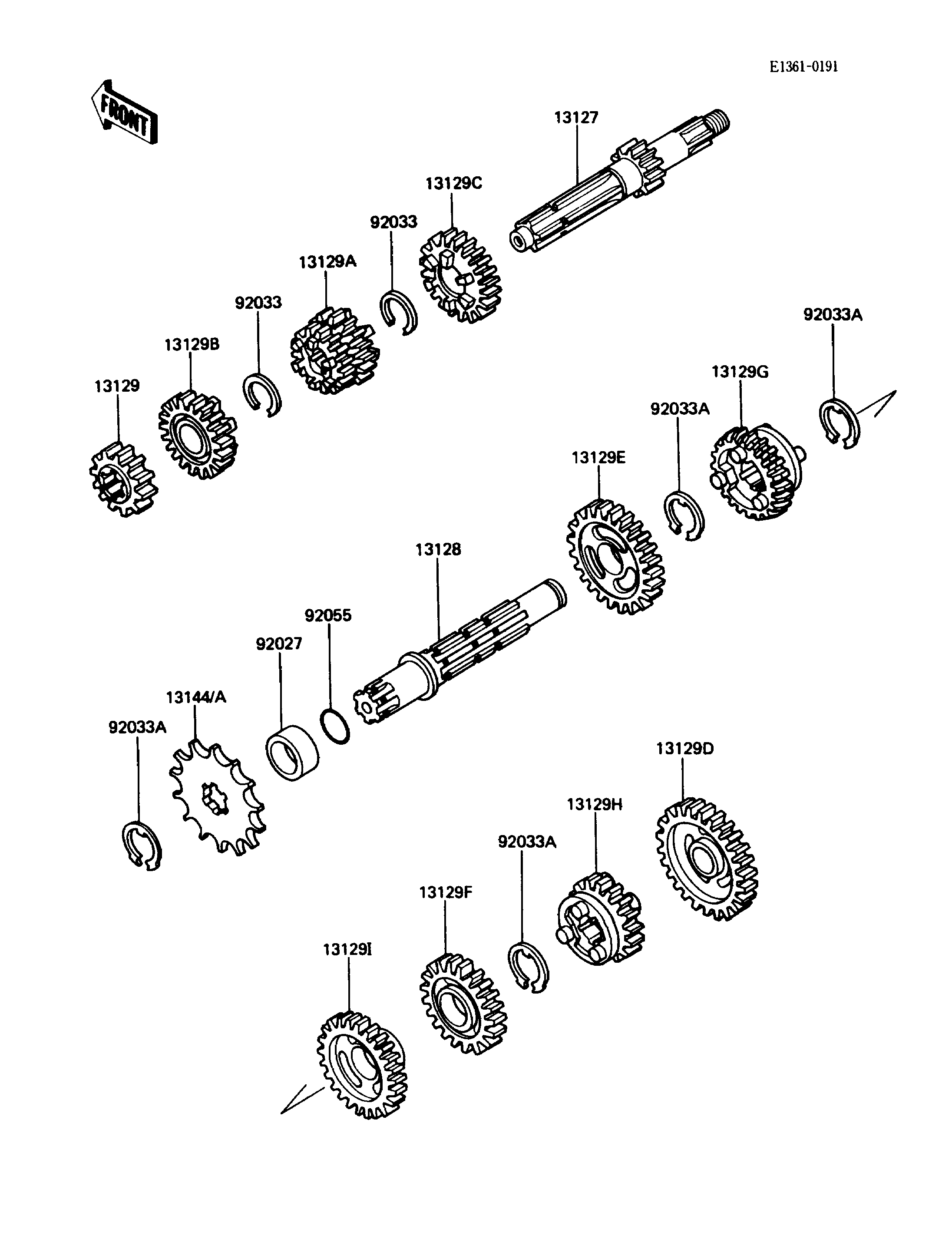

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,13T 13127 13127-1154 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1126 1
GEAR,INPUT 2ND,16T 13129 13129-1721 1
GEAR,INPUT 3RD&4TH,18T&20T 13129A 13129-1722 1
GEAR,INPUT 5TH,22T 13129B 13129-1723 1
GEAR,INPUT 6TH,23T 13129C 13129-1724 1
GEAR,OUTPUT LOW,33T 13129D 13129-1725 1
GEAR,OUTPUT 2ND,30T 13129E 13129-1726 1
GEAR,OUTPUT 4TH,25T 13129F 13129-1728 1
GEAR,OUTPUT 5TH,24T 13129G 13129-1729 1
GEAR,OUTPUT 6TH,22T 13129H 13129-1730 1
GEAR,OUTPUT 3RD,27T 13129I 13129-1928 1
SPROCKET-OUTPUT,14T 13144 13144-1022 1 (OPTION)
SPROCKET-OUTPUT,13T 13144A 13144-1023 1
COLLAR,20X25X12.5 92027 92027-1077 1
RING-SNAP 92033 92033-028 2
RING-SNAP,18MM 92033A 92033-1079 4
RING-O,17.5X1.5 92055 92055-022 1
