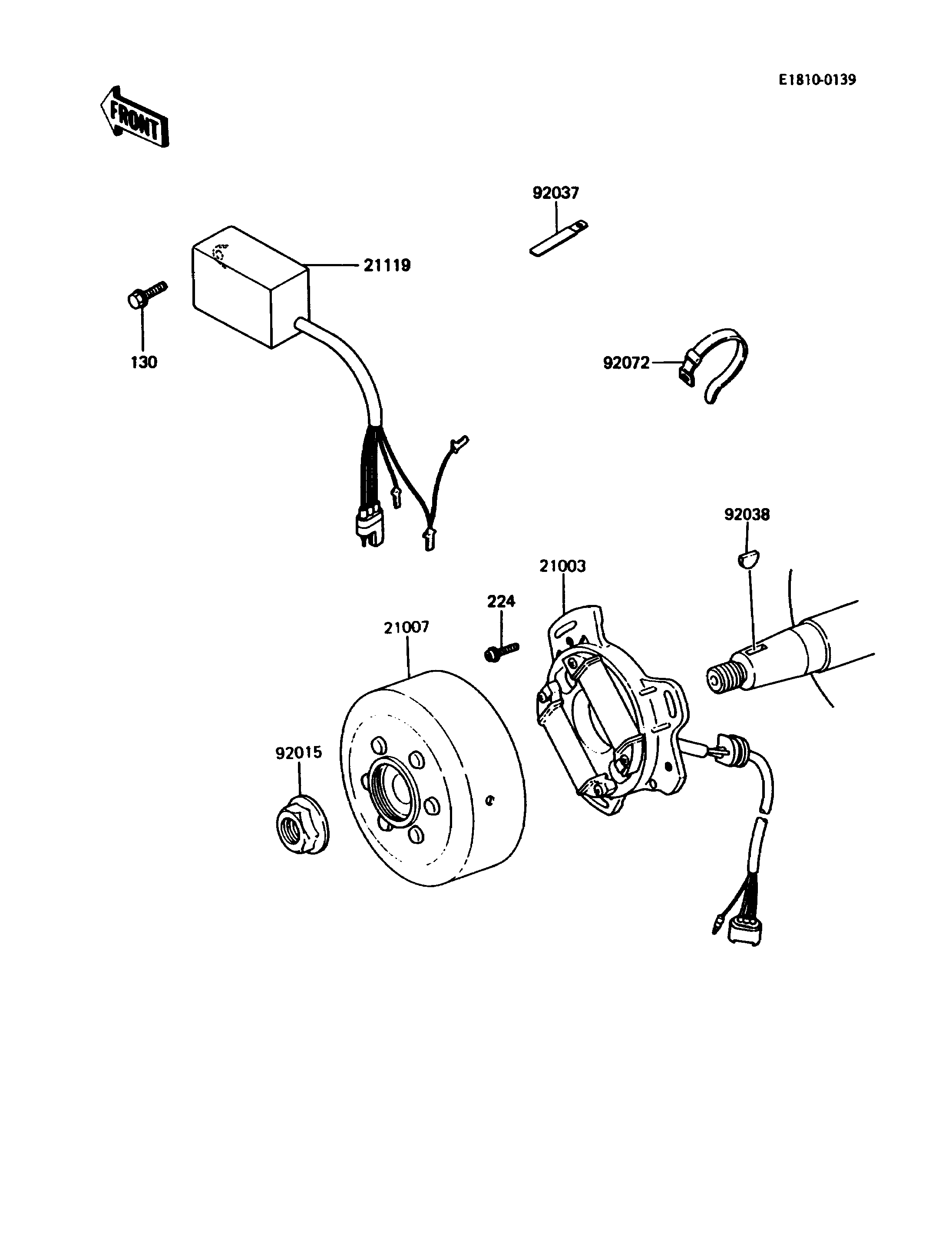

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1184 1
ROTOR 21007 21007-1170 1
IGNITER 21119 21119-1173 1
NUT,FLANGED,10MM 92015 92015-077 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
KEY,WOODRUFF 92038 92038-001 1
BAND,L=218 92072 92072-032 1
BOLT-FLANGED,6X12 130 130G0612 1
SCREW-PAN-WP-CROS 224 224B0514 3
