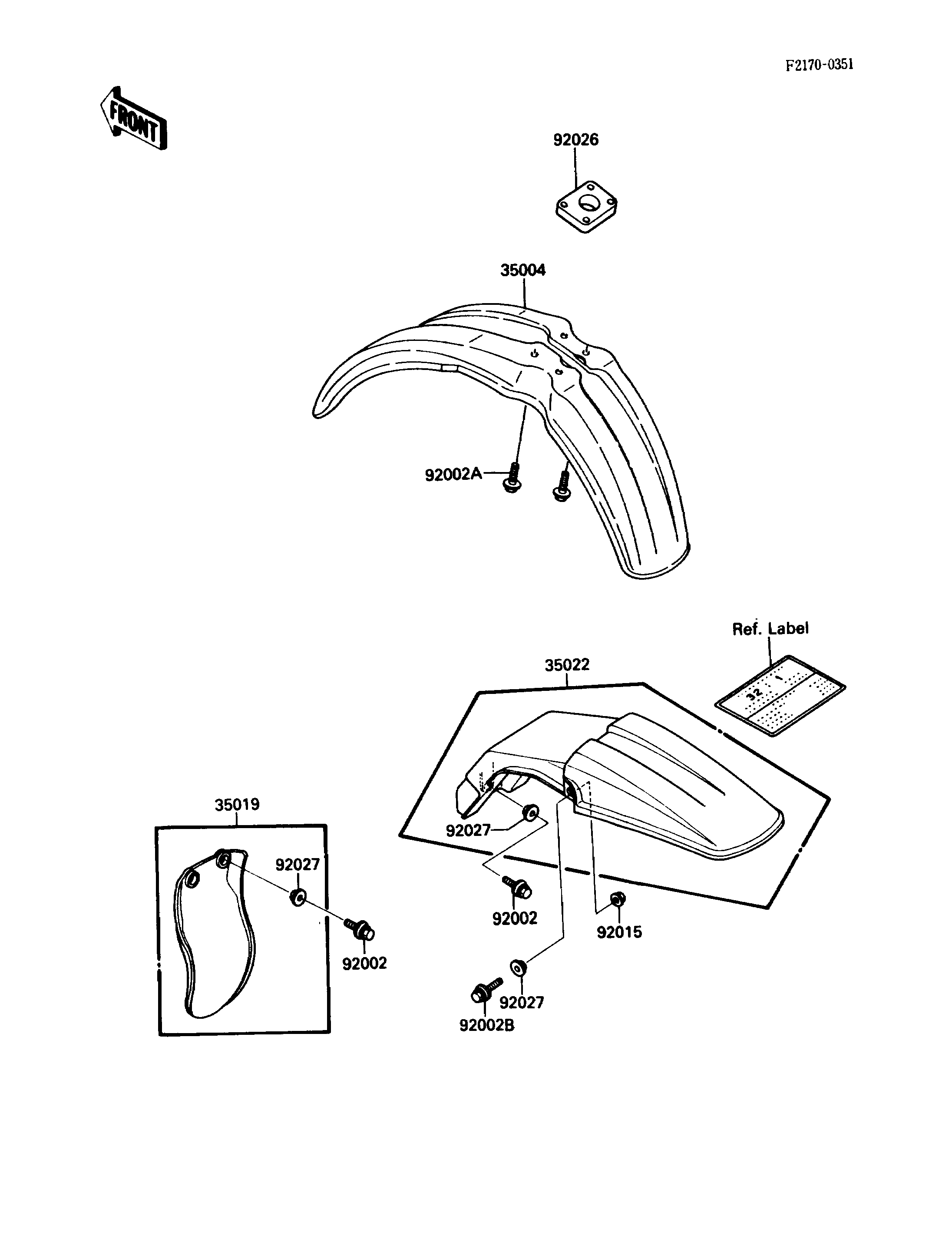

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1092-6W 1
FLAP,REAR FENDER 35019 35019-1212 1
FENDER-COMP-REAR,L.GREEN 35022 35022-1233-6W 1
BOLT,6X14 92002 92002-1460 4
BOLT,6X30 92002A 92002-1590 4
BOLT,6X18 92002B 92002-1952 2
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
SPACER,FRONT FENDER 92026 92026-1259 1
COLLAR 92027 92027-1757 6
