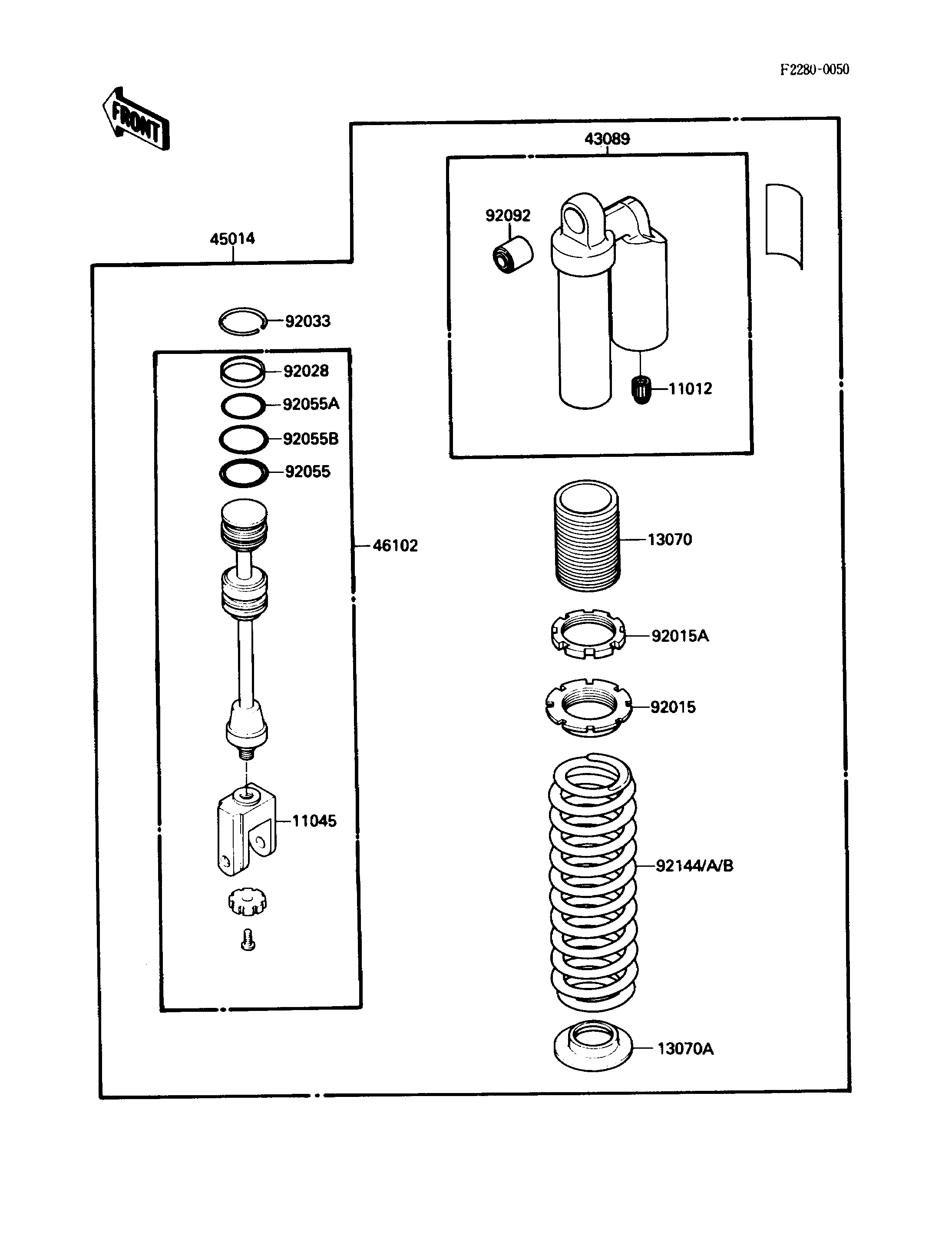

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,VALVE AIR | 11012 | 11012-1391 | 1 | ||
BRACKET,PISTON ROD | 11045 | 11045-1409 | 1 | ||
GUIDE | 13070 | 13070-1184 | 1 | ||
GUIDE,SPRING | 13070A | 13070-1193 | 1 | ||
CYLINDER-SHOCKABSORBER | 43089 | 43089-1124 | 1 | ||
SHOCKABSORBER | 45014 | 45014-1379 | 1 | ||
ROD,SHOCKABSORBER | 46102 | 46102-1194 | 1 | ||
NUT,SPRING ADJUST | 92015 | 92015-1679 | 1 | ||
NUT,SPRING ADJUST LOCK | 92015A | 92015-1713 | 1 | ||
BUSHING,ROD | 92028 | 92028-1412 | 1 | ||
RING-SNAP,SHOCKABSORBER | 92033 | 92033-1211 | 1 | ||
RING-O,ROD | 92055 | 92055-1334 | 1 | ||
RING-O,ROD | 92055A | 92055-1335 | 1 | ||
RING-O,ROD | 92055B | 92055-1336 | 1 | ||
BUSHING-RUBBER,SHOCKABSORBER | 92092 | 92092-1016 | 1 | ||
SPRING,SHOCKABSORBER,K=4.2 | 92144 | 92144-1190 | 1 | ||
SPRING,SHOCKABSORBER,K=4.0 | 92144A | 92144-1291 | 1 | (OPTION) | |
SPRING,SHOCKABSORBER,K=4.4 | 92144B | 92144-1292 | 1 | (OPTION) |
