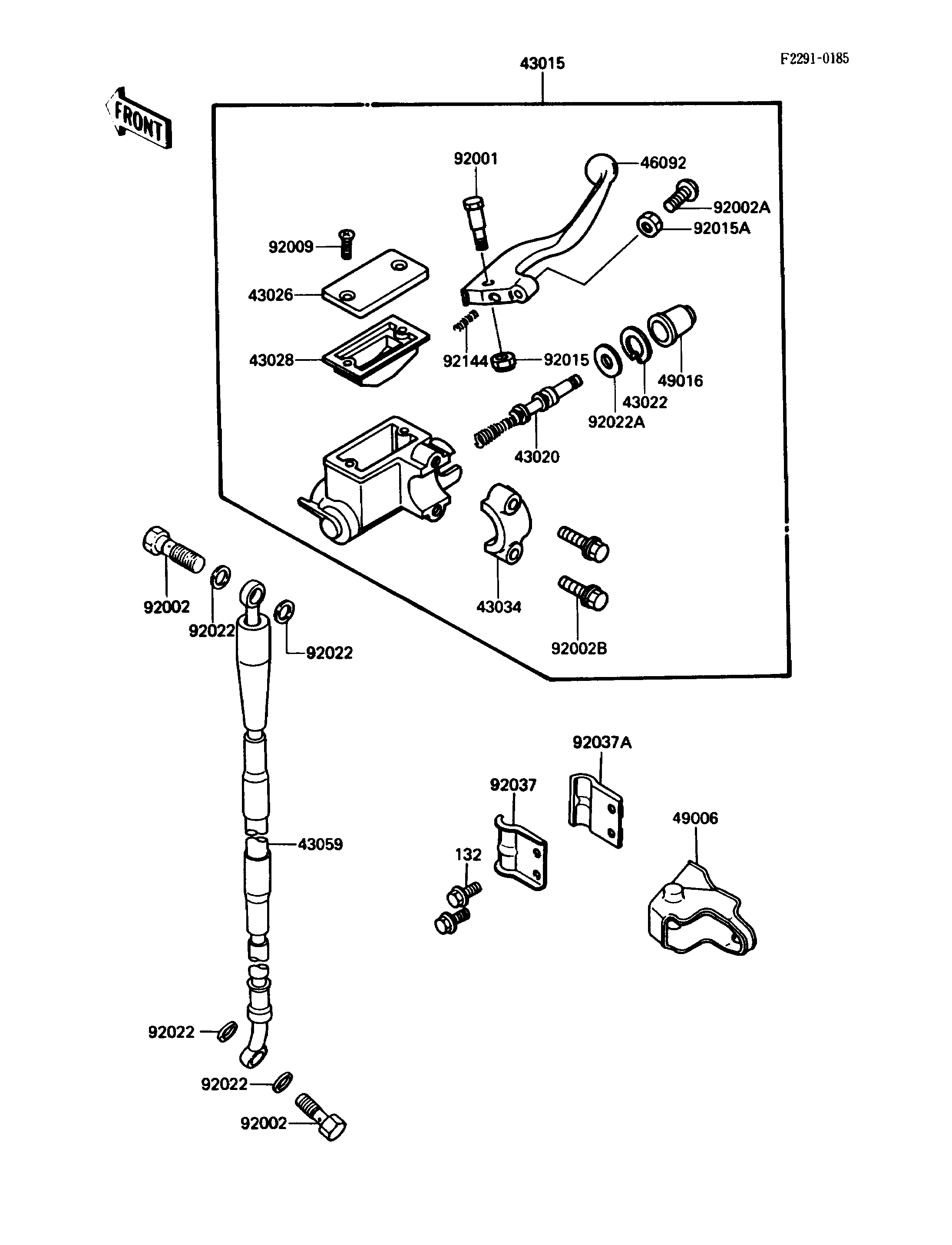

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ASSY-MASTER,FR 43015 43015-1367 1
PISTON-COMP-BRAKE 43020 43020-1071 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1063 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43059 43059-1359 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1148 1
BOOT,BRAKE LEVER 49006 49006-1090 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,OIL,L=23 92002 92002-1888 2
BOLT,ADJUST 92002A 92002-1893 1
BOLT 92002B 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
NUT,ADJUST 92015A 92015-1642 1
WASHER,10.5X15X1.5 92022 43067-001 4
WASHER 92022A 92022-1814 1
CLAMP,BRAKE HOSE,OUTSIDE 92037 92037-1362 1
CLAMP,BRAKE HOSE,INSIDE 92037A 92037-1363 1
SPRING,RETURN 92144 92144-1103 1
BOLT-FLANGED-SMALL 132 132G0616 2
