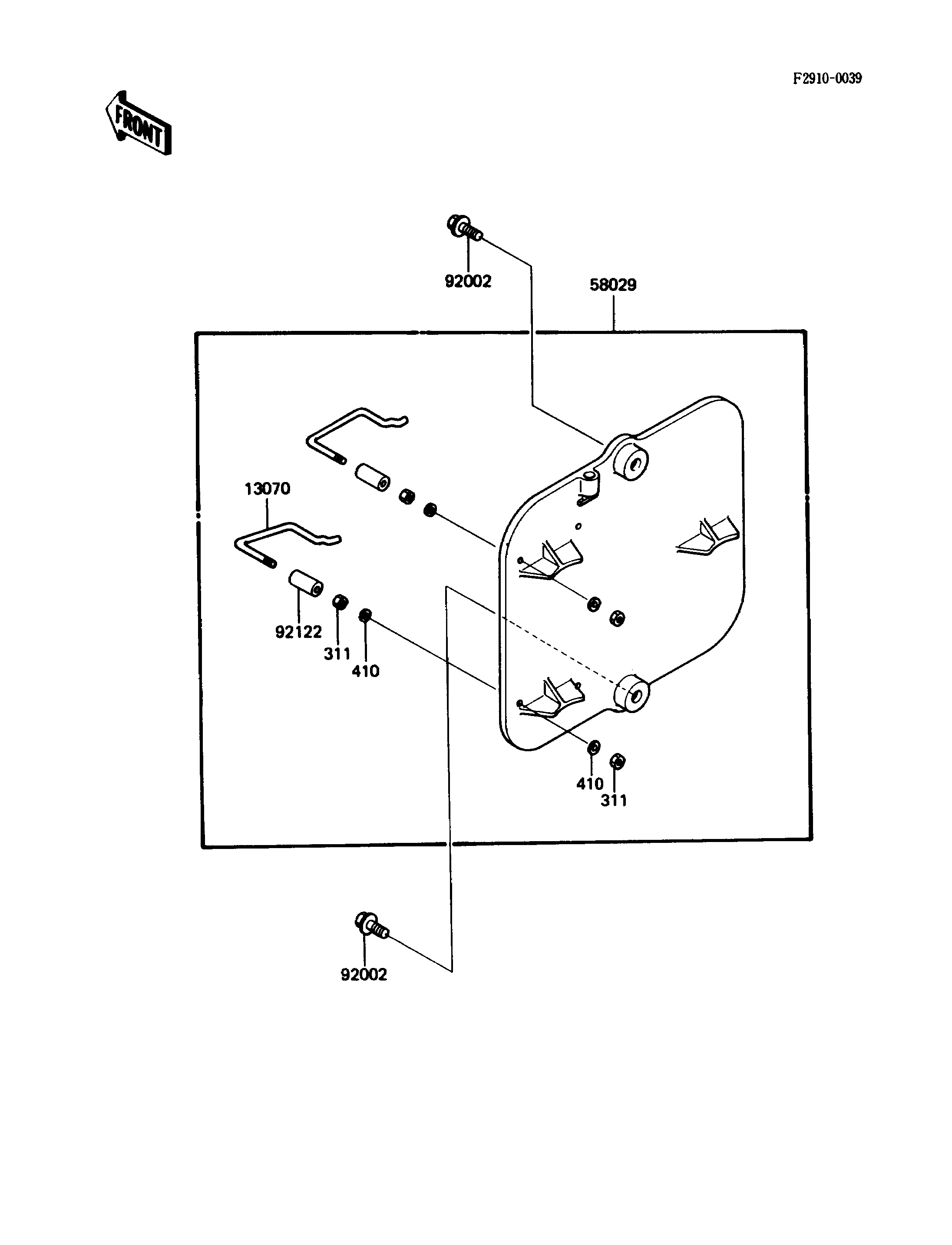

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,CABLE 13070 13070-1031 2
PLATE-NUMBER,L.GREEN 58029 58029-5014-6W 1
BOLT,6X14 92002 92002-1460 2
ROLLER,CABLE GUIDE 92122 92122-1011 2
NUT-HEX 311 311B0300 4
WASHER-PLAIN-SMALL,3MM 410 410B0300 4
