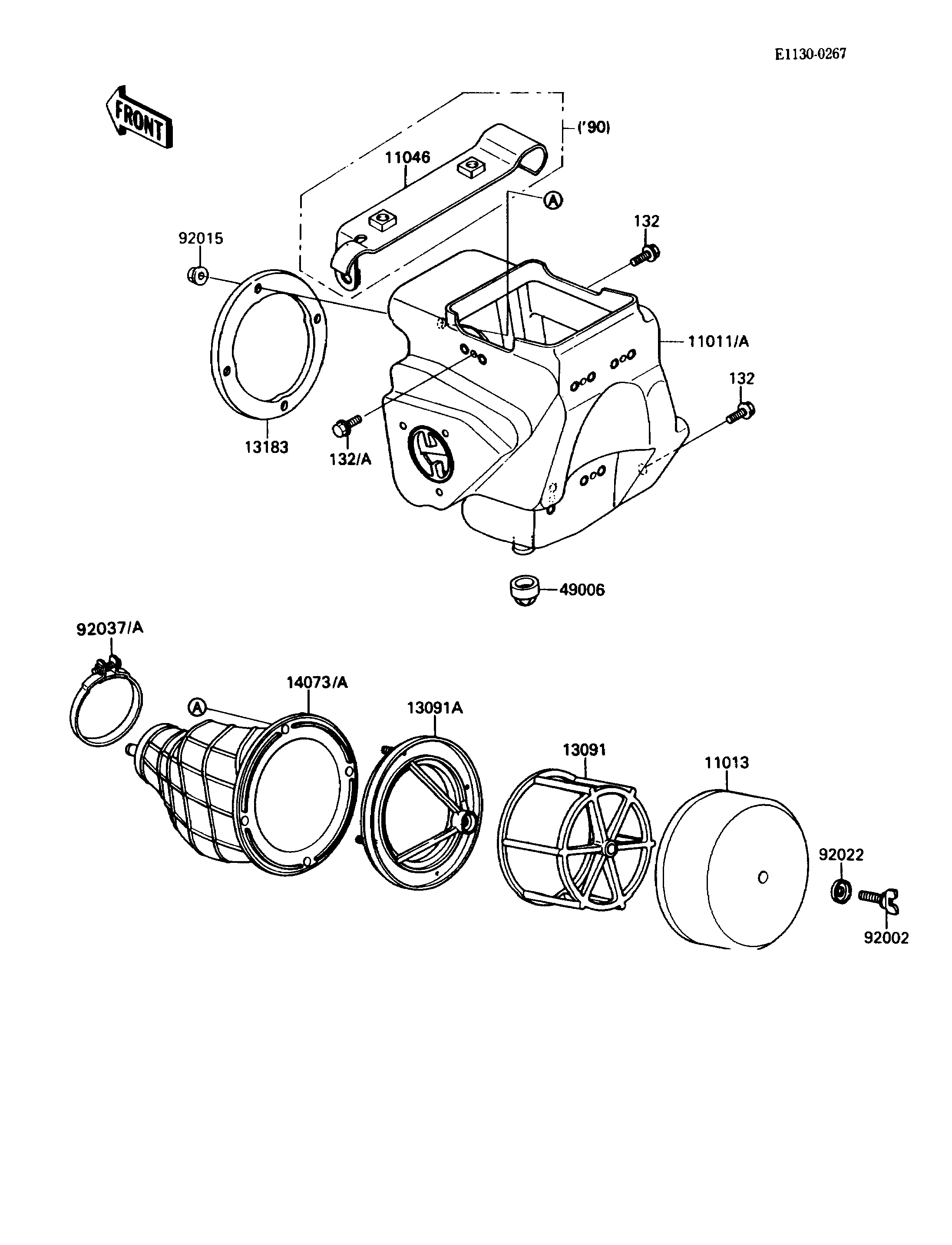

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011A 11011-1321 1
ELEMENT-AIR FILTER 11013 11013-1129 1
BRACKET,IGNITER 11046 11046-1876 1
HOLDER,ELEMENT 13091 13091-1393 1
HOLDER,ELEMENT 13091A 13091-1519 1
PLATE,AIR FILTER DUCT 13183 13183-1237 1
DUCT,AIR FILTER 14073A 14073-1418 1
BOOT,AIR FILTER 49006 49006-1156 1
BOLT,WING 92002 92002-1599 1
NUT,FLANGED,5MM 92015 92015-1259 4
WASHER,PLAIN,6MM 92022 92022-284 1
CLAMP,55MM 92037 92037-1486 1
BOLT-FLANGED-SMALL 132 132G0614 2
BOLT-FLANGED-SMALL 132A 132G0620 1
