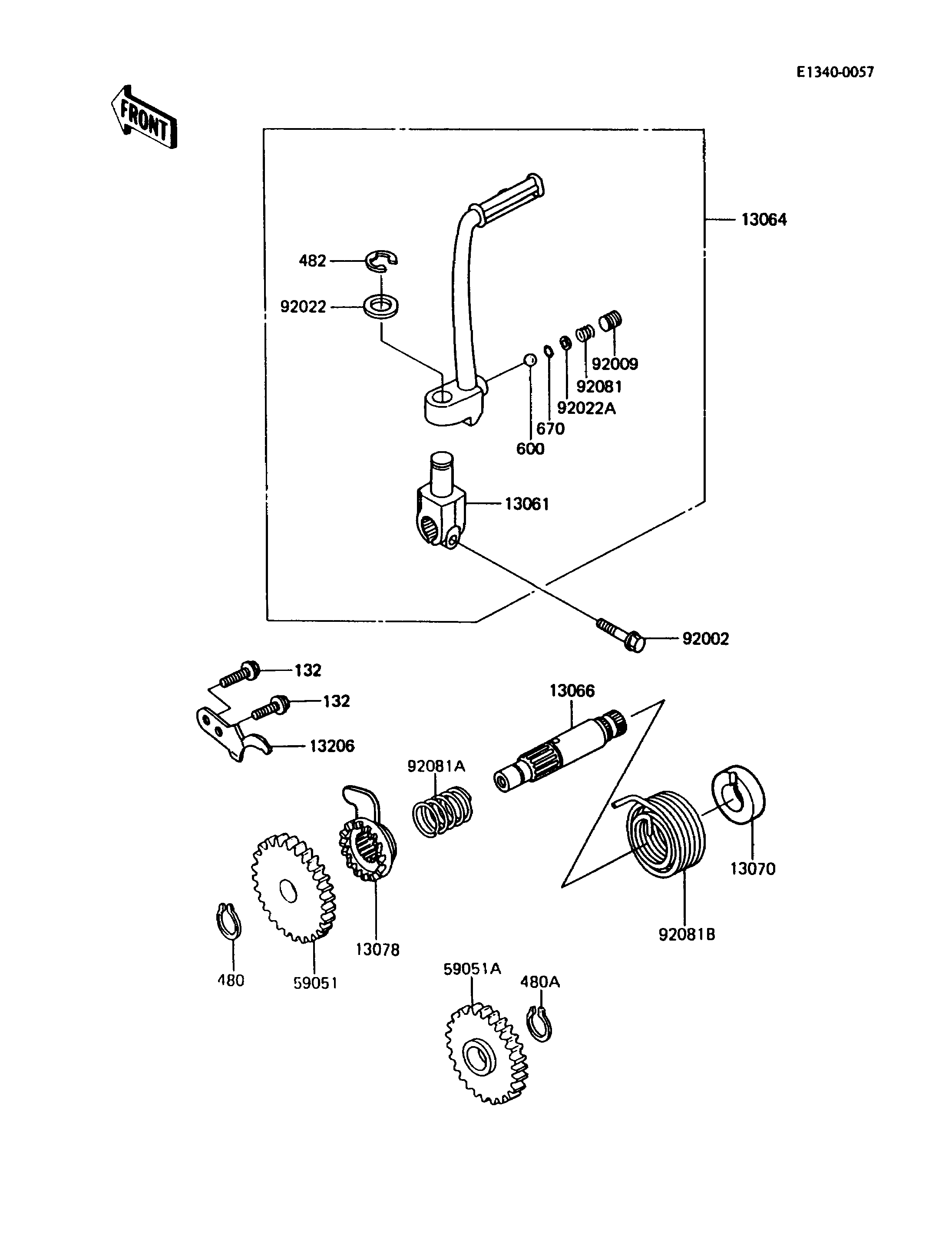

1990 Big Wheel - Kickstarter Mechanism
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOSS,KICK LEVER | 13061 | 13061-1049 | 1 | ||
LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1124 | 1 | ||
SHAFT-KICK | 13066 | 13066-1055 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1137 | 1 | ||
RATCHET | 13078 | 13078-1004 | 1 | ||
GUIDE-KICK | 13206 | 13206-1055 | 1 | ||
GEAR-SPUR | 59051 | 59051-1026 | 1 | ||
GEAR-SPUR,31T,KICK | 59051A | 59051-1147 | 1 | ||
BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
SCREW,SOCKET,8X8 | 92009 | 92009-1312 | 1 | ||
WASHER,12.2X20X1.6 | 92022 | 92022-1236 | 1 | ||
WASHER | 92022A | 92022-1481 | 1 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92081B | 92081-1907 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 1 | ||
CIRCLIP-TYPE-C,15MM | 480A | 480J1500 | 1 | ||
CIRCLIP-TYPE-E,8MM | 482 | 482K8000 | 1 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
O RING,4MM | 670 | 670B1504 | 1 |
BOSS,KICK LEVER | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK,PEDAL | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-KICK | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,31T,KICK | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SOCKET,8X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,12.2X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RATCHET | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICKSTARTER | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,12MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,15MM | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E,8MM | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,4MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
