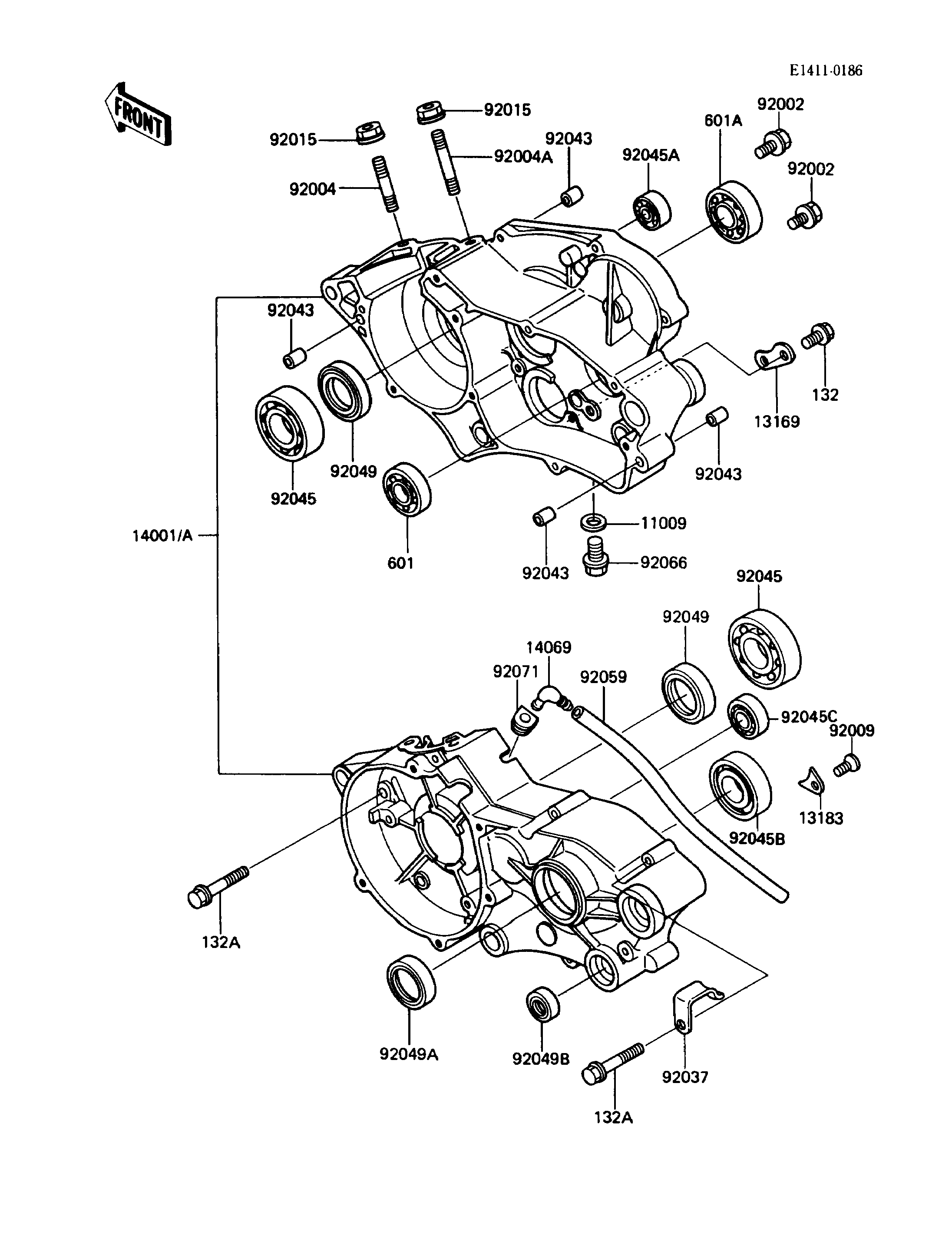

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10.5X16X1,DRAIN PLUG | 11009 | 92065-058 | 1 | ||
PLATE,CHANGE DRUM | 13169 | 13169-012 | 1 | ||
PLATE | 13183 | 13183-1182 | 2 | ||
SET-CRANKCASE | 14001A | 14001-5272 | 1 | ||
BREATHER,CRANKCASE | 14069 | 14069-002 | 1 | ||
BOLT,6X16 | 92002 | 92002-1659 | 2 | ||
STUD,8X25 | 92004 | 92004-1008 | 2 | ||
STUD,8X35 | 92004A | 92004-1009 | 2 | ||
SCREW,6X10 | 92009 | 92009-1563 | 2 | ||
NUT,8MM | 92015 | 92015-1143 | 4 | ||
CLAMP,HARNESS | 92037 | 92037-1318 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 4 | ||
BEARING-BALL,R-6304C3 | 92045 | 92045-1059 | 2 | ||
BEARING-BALL | 92045A | 92045-1211 | 1 | ||
BEARING-BALL,6204 | 92045B | 92045-1226 | 1 | ||
BEARING-BALL,6001C3ML01 | 92045C | 92045-1235 | 1 | ||
SEAL-OIL,SD20407GS | 92049 | 92049-1188 | 2 | ||
SEAL-OIL,TC25375 | 92049A | 92049-1292 | 1 | ||
SEAL-OIL,TB13225.5 | 92049B | 92051-005 | 1 | ||
TUBE,6X9X280 | 92059 | 92059-1074 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1241 | 1 | ||
GROMMET,BREATHER | 92071 | 92071-042 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132G0635 | 9 | ||
BEARING-BALL | 601 | 601A6002 | 1 | ||
BEARING-BALL,#6203 | 601A | 601A6203 | 1 |
