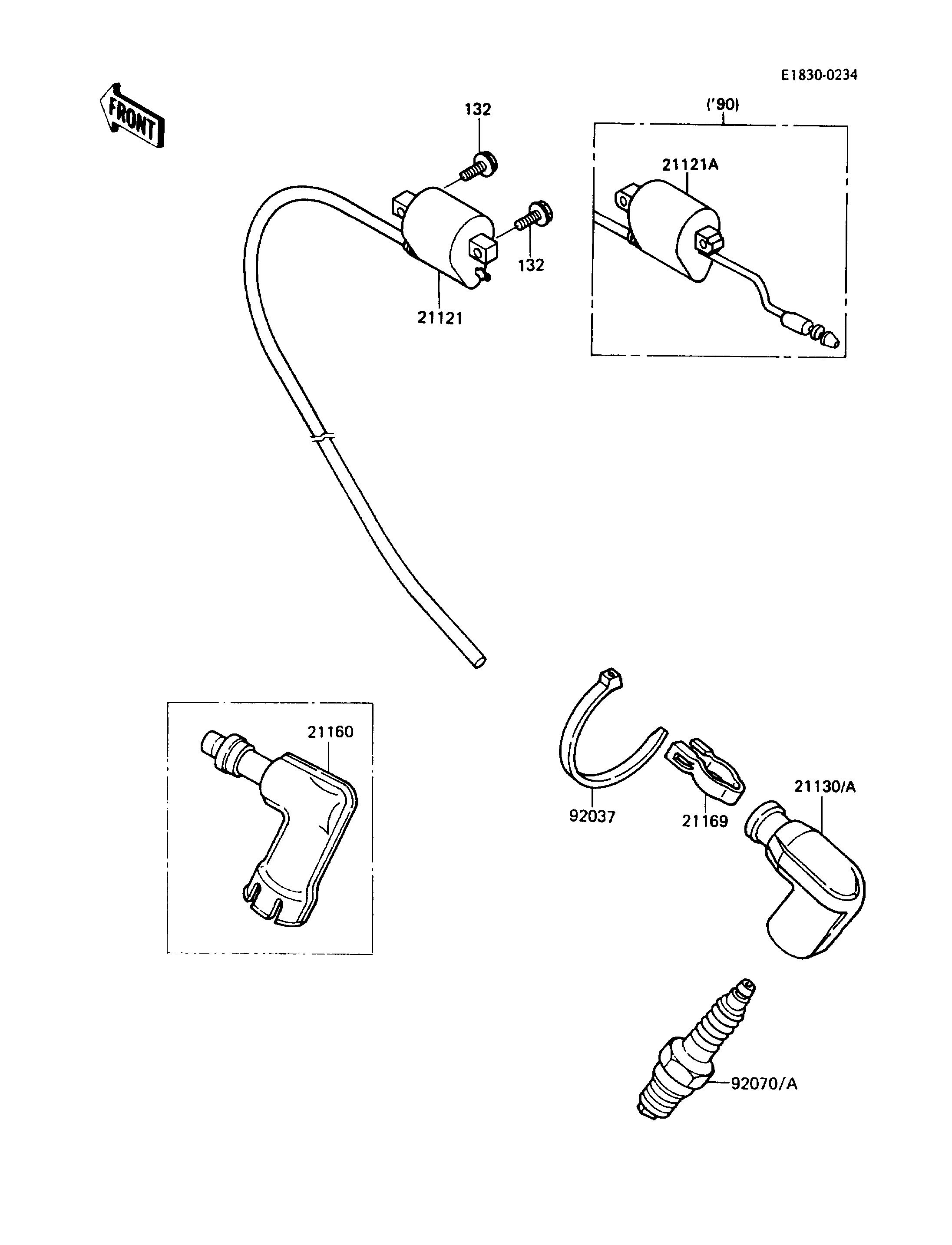

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121A 21121-1183 1
CAP-SPARK PLUG 21130A 21130-1062 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,B9EG(NGK) 92070 92070-1058 1
BOLT-FLANGED-SMALL 132 132G0616 2
