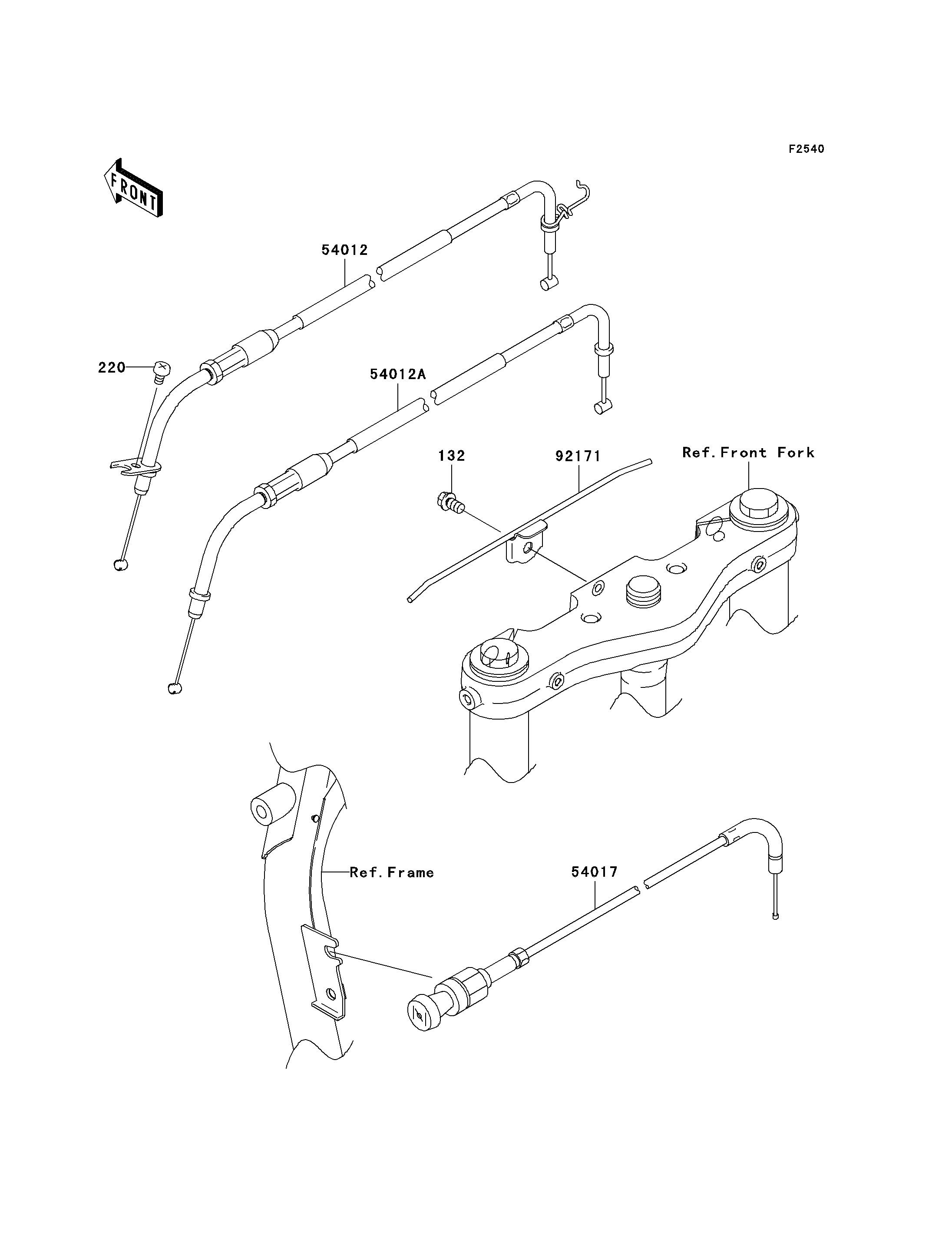

132
220
54012
54012A
54017
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132L0610 1
SCREW-PAN-CROSS,5X14 220 220F0514 1
CABLE-THROTTLE,OPENING 54012 54012-0069 1
CABLE-THROTTLE,CLOSING 54012A 54012-0070 1
CABLE-STARTER 54017 54017-1202 1
CLAMP,CABLE&HOSE 92171 92171-0057 1
