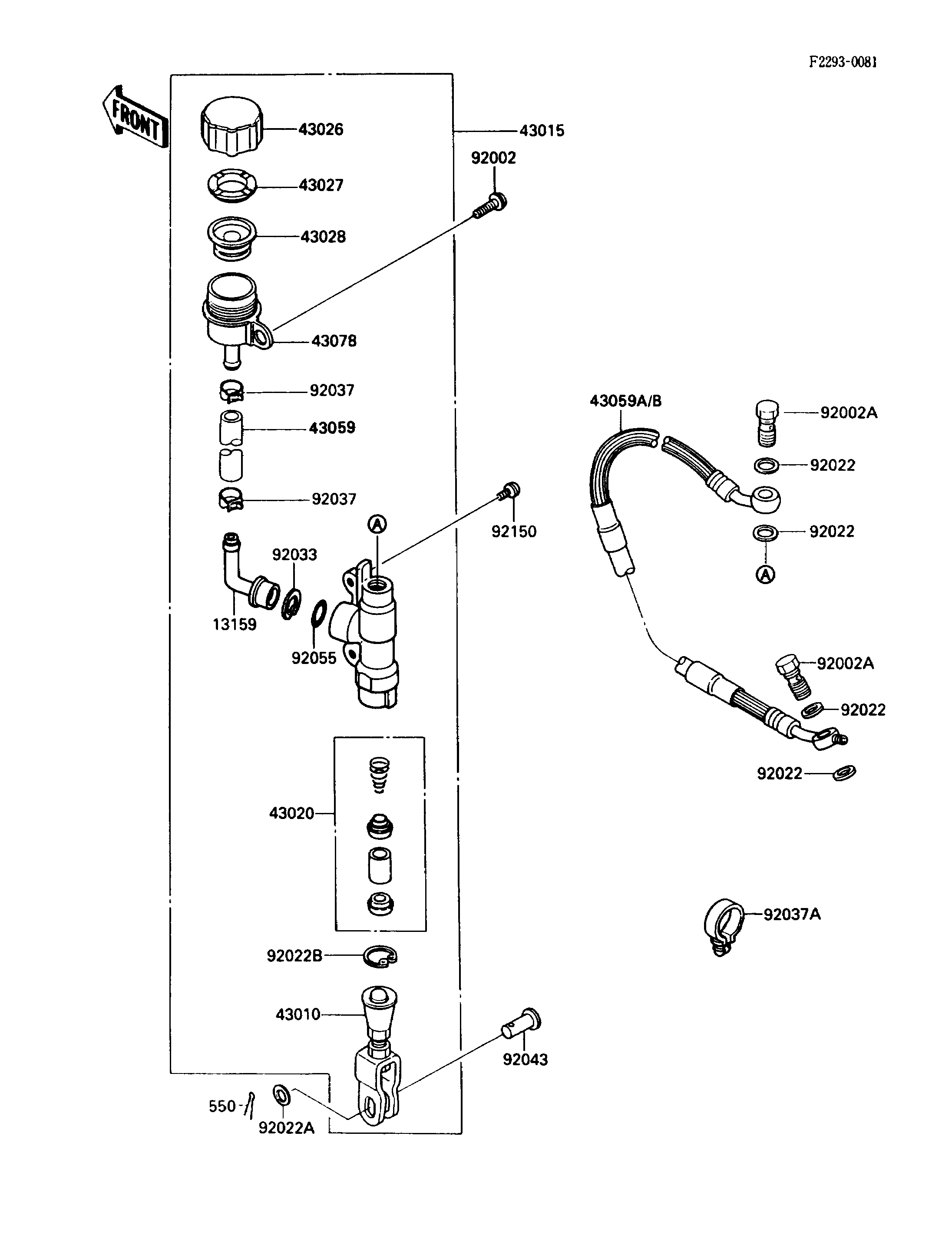

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1063 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1388 1
PISTON-COMP-BRAKE 43020 43020-1063 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1380 1
HOSE-BRAKE,RR 43059B 43059-1417 1
RESERVOIR 43078 43078-1068 1
BOLT,6X14 92002 92002-1460 1
BOLT,OIL,L=23 92002A 92002-1888 2
WASHER,10.5X15X1.5 92022 43067-001 4
WASHER,8.5X13X1 92022A 92022-1028 1
WASHER,CIRCRIP 92022B 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
CLAMP,HOSE 92037A 92037-1827 2
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,6X14 92150 92150-1026 2
PIN-COTTER,2.0X15 550 550D2015 1
