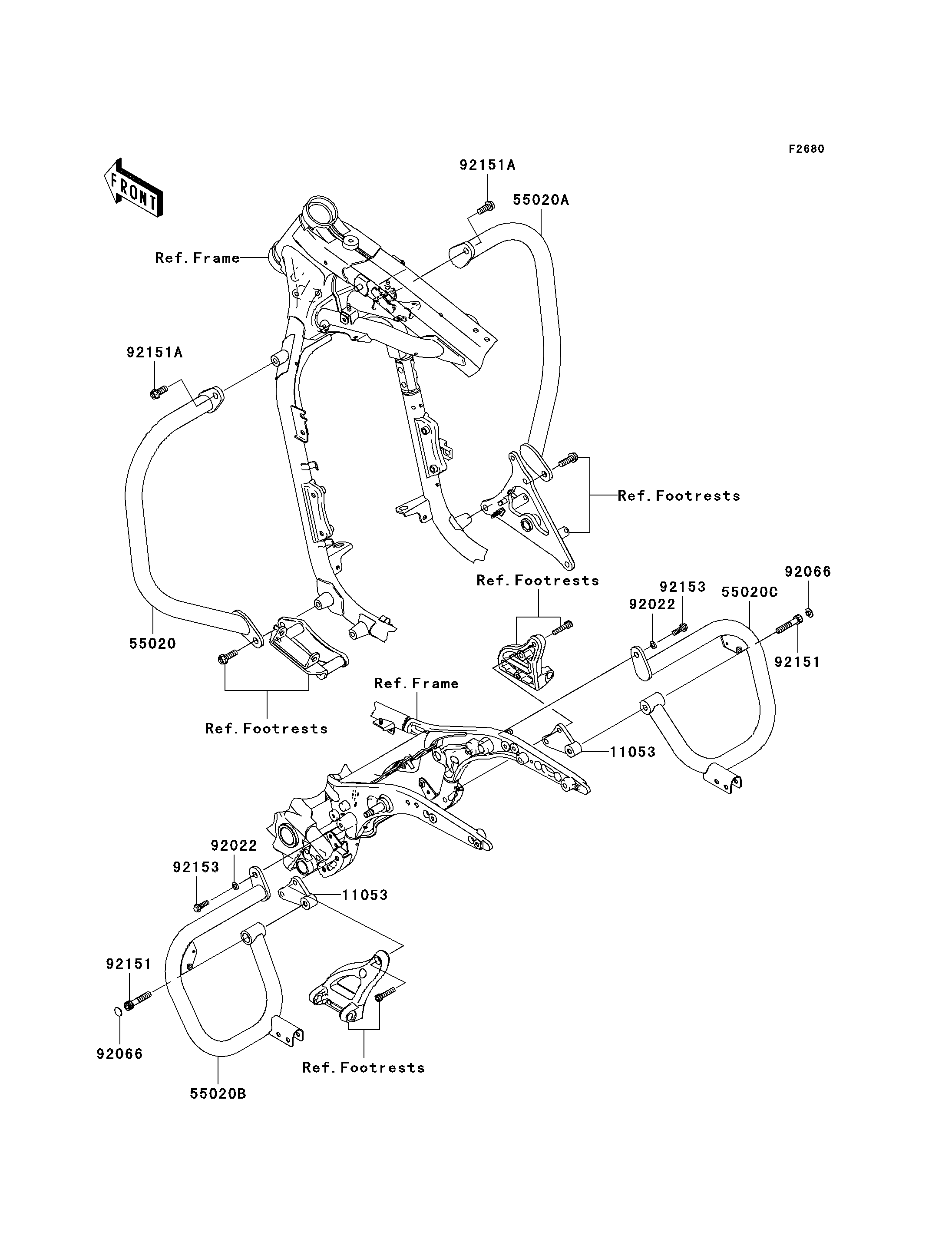

2008 Vulcan® 1600 Nomad™ - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
55020
55020A
55020B
55020C
92022
92022
92066
92066
92151
92151
92151A
92151A
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR GUARD 11053 11053-1328 2
GUARD,FR,LH 55020 55020-0121 1
GUARD,FR,RH 55020A 55020-0122 1
GUARD,RR,LH 55020B 55020-0180 1
GUARD,RR,RH 55020C 55020-0181 1
WASHER,PLAIN,8MM 92022 92022-3043 2
PLUG 92066 92066-1285 2
BOLT,SOCKET,10X50 92151 92151-1300 2
BOLT,FLANGED,10X25 92151A 92151-1380 2
BOLT,8X25 92153 92153-1268 2
