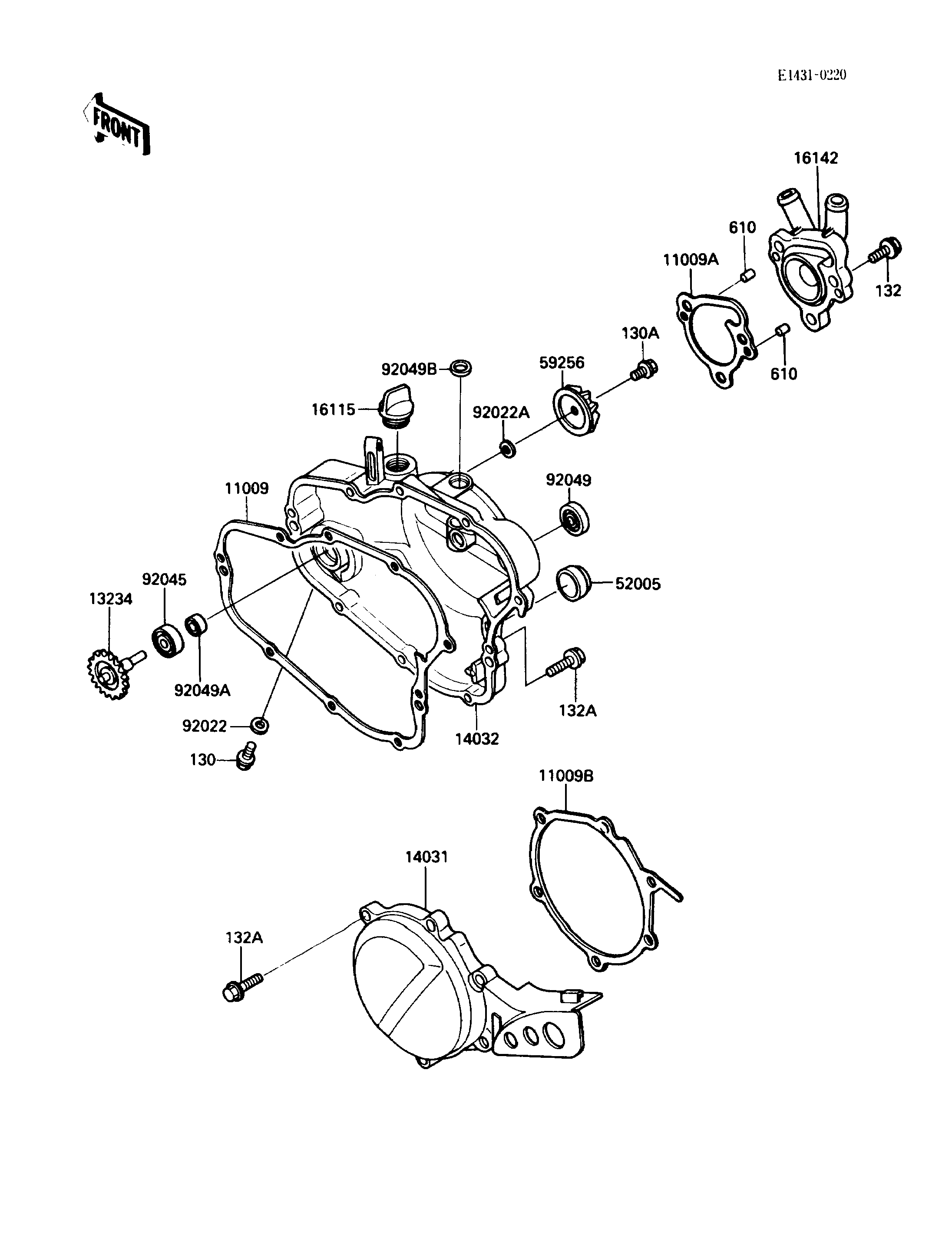

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11009 11009-1534 1
GASKET,PUMP COVER 11009A 11009-1535 1
GASKET,GENERATOR COVER 11009B 11009-1536 1
SHAFT-COMP,PUMP 13234 13234-1068 1
COVER-GENERATOR 14031 14031-1215 1
COVER-CLUTCH 14032 14032-1238 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP 16142 16142-1081 1
GAUGE,OIL LEVEL 52005 52005-1055 1
IMPELLER 59256 59256-1064 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,5.2X13X1 92022A 92022-1380 1
BEARING-BALL,#608 92045 92045-1048 1
SEAL-OIL,SB16244 92049 92049-002 1
SEAL-OIL,A9567 92049A 92049-1081 1
SEAL-OIL 92049B 92049-1262 1
BOLT-FLANGED,6X8 130 130B0608 1
BOLT-FLANGED 130A 130P0510 1
BOLT-FLANGED-SMALL 132 132G0620 3
BOLT-FLANGED-SMALL 132A 132G0625 15
ROLLER,4X8 610 610A0408 2
