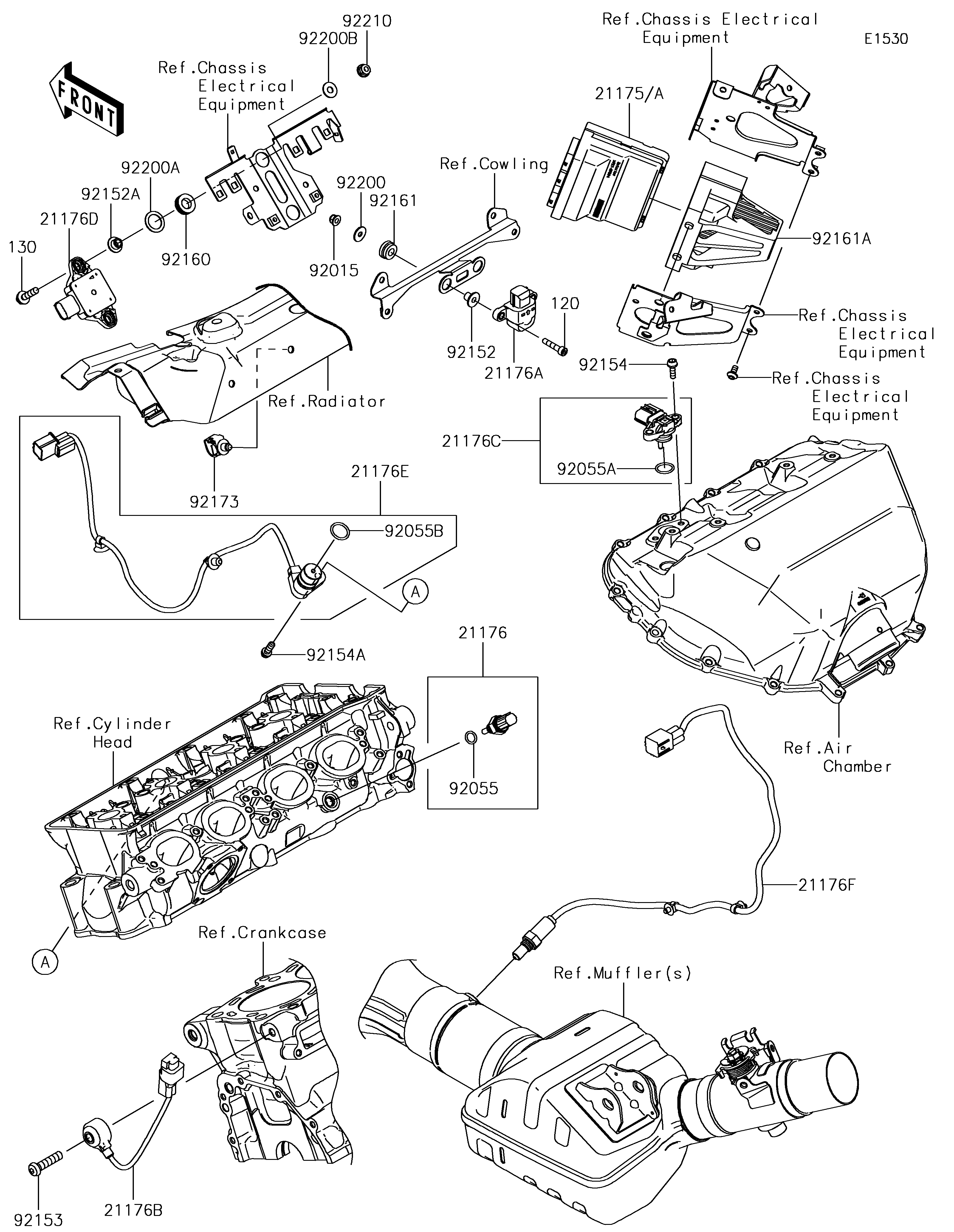

2018 NINJA H2™ SX - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
21175
21175A
21176
21176A
21176B
21176C
21176D
21176E
21176F
92015
92055
92055A
92055B
92152
92152A
92153
92154
92154A
92160
92161
92161A
92173
92200
92200A
92200B
92210
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1340 1 CA
CONTROL UNIT-ELECTRONIC 21175A 21175-1343 1 CN,US
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,KNOCK 21176B 21176-0788 1
SENSOR,INTAKE TEMP&PRESSURE 21176C 21176-0791 1
SENSOR,GYRO 21176D 21176-0819 1
SENSOR,CAM ANGLE 21176E 21176-0866 1
SENSOR,OXYGEN 21176F 21176-0868 1
NUT,LOCK,FLANGED,5MM 92015 92015-1752 2
RING-O,9.5X1.9 92055 92055-0016 1
RING-O 92055A 92055-0842 1
RING-O 92055B 92055-1639 1
COLLAR 92152 92152-0329 2
COLLAR,6.5X16X7.3 92152A 92152-2336 2
BOLT,SOCKET,8X35 92153 92153-0419 1
BOLT,SOCKET,5X16 92154 92154-1449 2
BOLT,SOCKET,6X16 92154A 92154-1454 1
DAMPER 92160 92160-1278 2
DAMPER 92161 92161-1187 2
DAMPER,ECU 92161A 92161-2123 1
CLAMP,12MM DIA. 92173 92173-0736 1
WASHER 92200 92200-0288 2
WASHER,15.5X22X0.8 92200A 92200-2214 2
WASHER,6.5X16X1.0 92200B 92200-3712 2
NUT,LOCK,FLANGED,6MM 92210 92210-0303 2
BOLT-SOCKET,5X25 120 120R0525 2
BOLT-FLANGED,6X25 130 130BA0625 2
