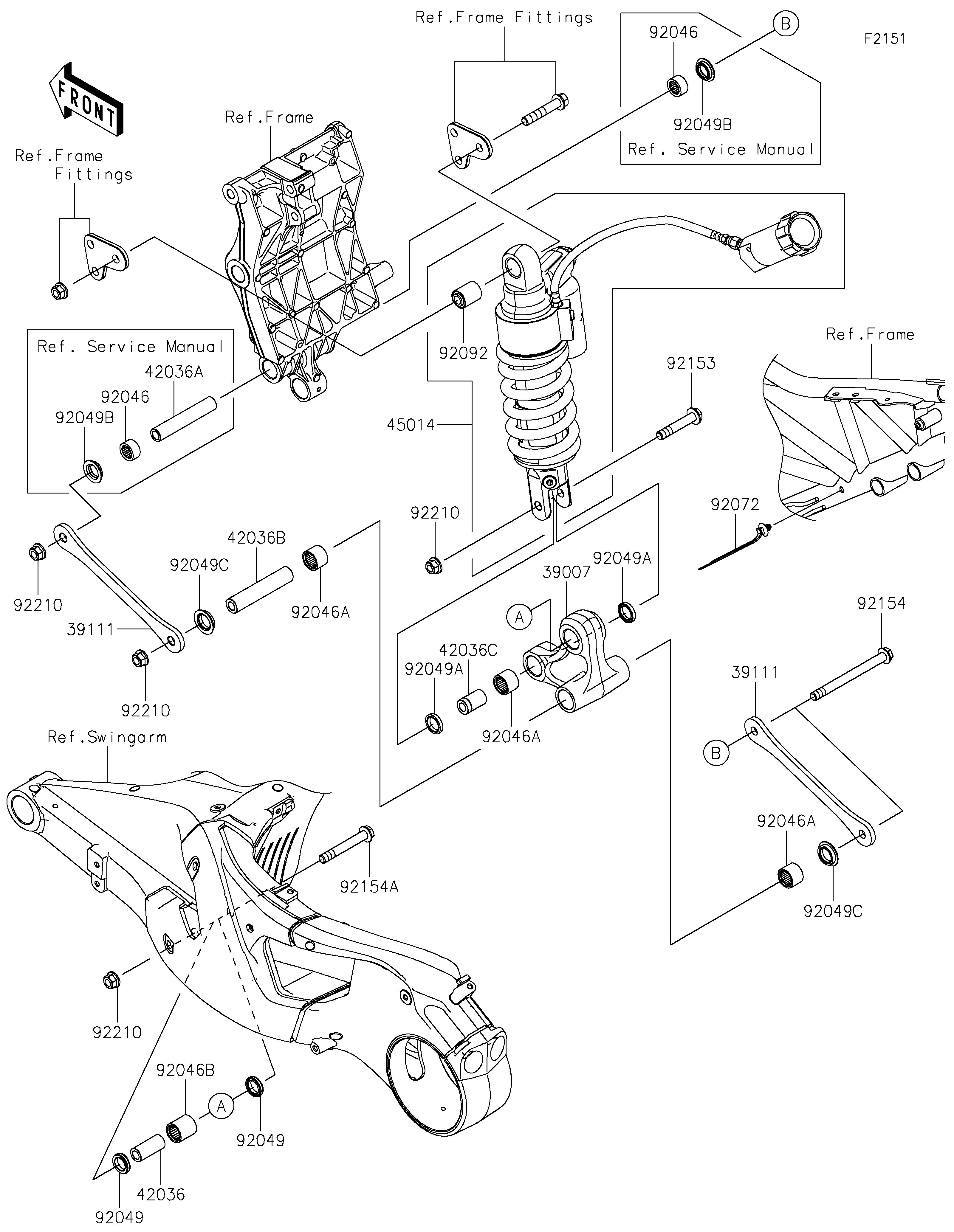

2018 NINJA H2™ SX - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036C
45014
92046
92046
92046A
92046A
92046A
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92072
92092
92153
92154
92154A
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP 39007 39007-0420 1
ROD-TIE,SUSPENSION 39111 39111-0330 2
SLEEVE,10.1X17X39 42036 42036-0075 1
SLEEVE,10.1X16X90.5 42036A 42036-0763 1
SLEEVE,10.1X18X90.5 42036B 42036-0828 1
SLEEVE,10.1X18X30 42036C 42036-1258 1
SHOCKABSORBER,G.B.GREEN 45014 45014-0606-52R 1
BEARING-NEEDLE,16BM2212 92046 92046-1192 2
BEARING-NEEDLE,SFYZM182417 92046A 92046-1272 3
BEARING-NEEDLE,SFYZM172425 92046B 92046-1273 1
SEAL-OIL,SD0 17 24 5 NS 92049 92049-0158 2
SEAL-OIL,MHA18244 92049A 92049-1225 2
SEAL-OIL,SD03 16 22 5.7 92049B 92049-1466 2
SEAL-OIL,KCR MF018N1 92049C 92049-1493 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
BUSHING-RUBBER 92092 92092-0003 1
BOLT,FLANGED,10X55 92153 92153-1546 1
BOLT,FLANGED,10X114 92154 92154-1553 2
BOLT,FLANGED,10X70 92154A 92154-1695 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 4
